Nec Power-Limited Wiring Requirements - Altronix Maximal Fit Series Installation Manual

Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited
circuit wiring must remain at least 0.25" away from any non power-limited circuit wiring. Furthermore, all
power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through differ-
ent conduits. One such example of this is shown below. Your specific application may require different conduit
knockouts to be used. Any conduit knockouts may be used. For power-limited applications use of conduit is
optional. All field wiring connections must be made employing suitable gauge
CM or FPL jacketed wire (or equivalent substitute). Optional UL Listed
battery enclosure must be mounted adjacent to the power supply via Class 1
wiring methods. For Canadian installations use shielded wiring for all connections.
Note: Refer to wire handling drawing below for the proper way to install the
CM or FPL jacketed wire (Fig. 3b).

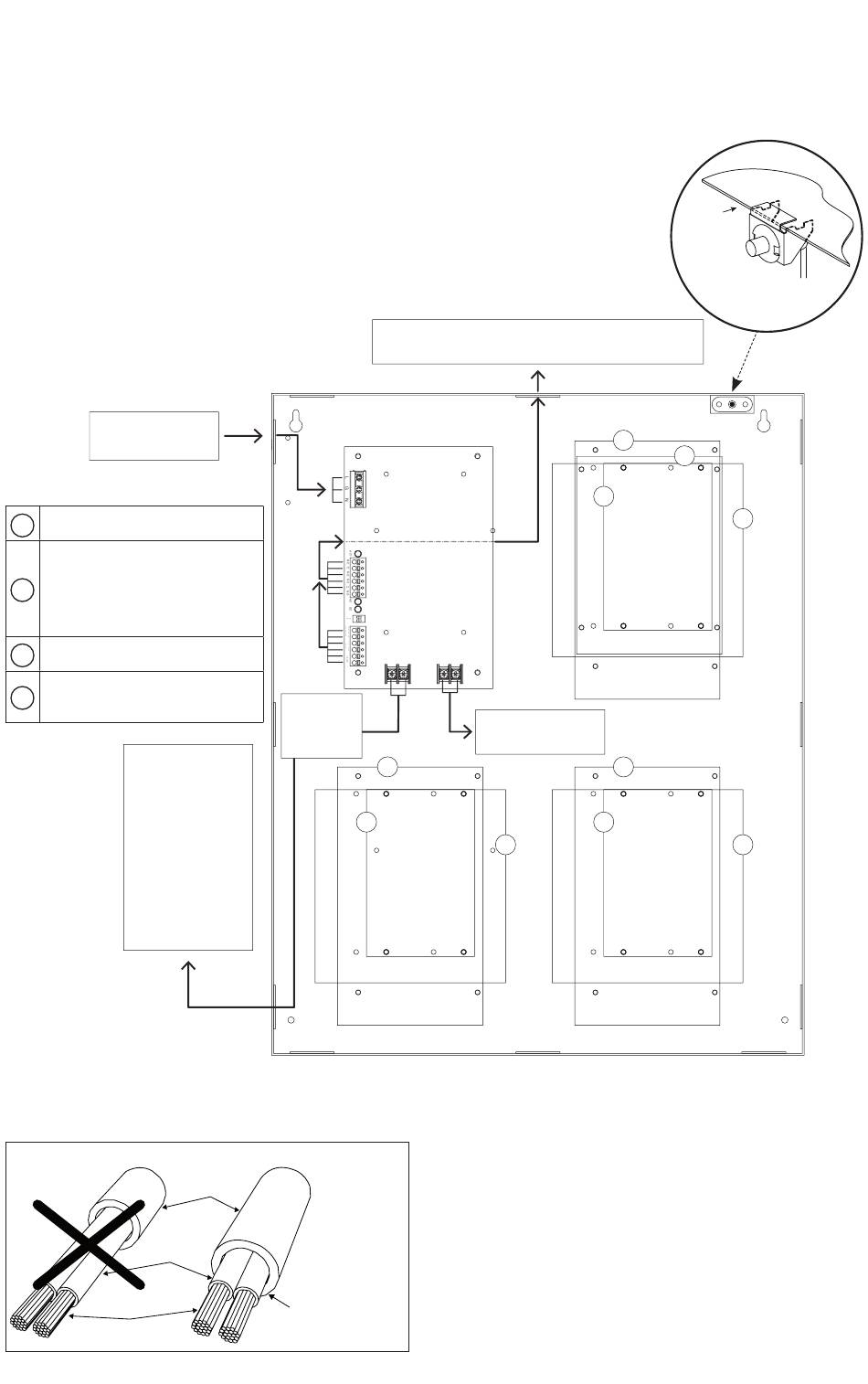

Fig. 3
Input 120VAC, 60Hz
(non power-limited)
A ACM8(CB), ACMS8(CB)
ACM4(CB),
LINQ8PD(CB),
B
PD4UL(CB), PD8UL(CB),
MOM5, PDS8(CB), VR6
C PD16W(CB)
NetWaySP3B, NetWay4EB,
D
NetWaySP4B, NetWaySP8B
Optional
Rechargeable
Stand-by Battery
for UL294
Applications
12V batteries
are required for
ULC-S319
installations.
Fig. 3b
Incorrect Wire
Handling
Wire
Insulation
Solid Copper
Conductors
MaxiFit3FE/MaxFit5FE/MaxFit7FE Expandable Power Systems

NEC Power-Limited Wiring Requirements:

Battery
(non power-
limited)
Note:
CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC
stand-by battery. Connect red battery lead to the terminal marked [+ BAT] and
to the [positive (+)] terminal of the battery. Connect black battery lead to terminal
External
Jacketed
Correct Wire
Shield
Handling
Pull back
external jacketed
shield approx. 1/2".
Supervisory Connections, Aux. Outputs to Devices and
Fire Alarm Interface (power-limited)
Power
Supply/
Charger
- BAT + - DC +
DC Output
(non power-limited)
A
B
C
marked [BAT –] and to the [negative (–)] terminal of the battery.
Keep power-limited wiring separate from non power-limited.
Use minimum 0.25" spacing.
12AH Rechargeable batteries are the largest batteries that
can fit in this enclosure.
A UL listed external battery enclosure must be
used if using the 40AH or 65AH batteries.
Fig. 3a
Enclosure
Edge of
Enclosure
Tamper Switch
To Access Control Panel or
UL Listed Reporting Device
Tamper Switch
A
D
B
C
A
B
C
