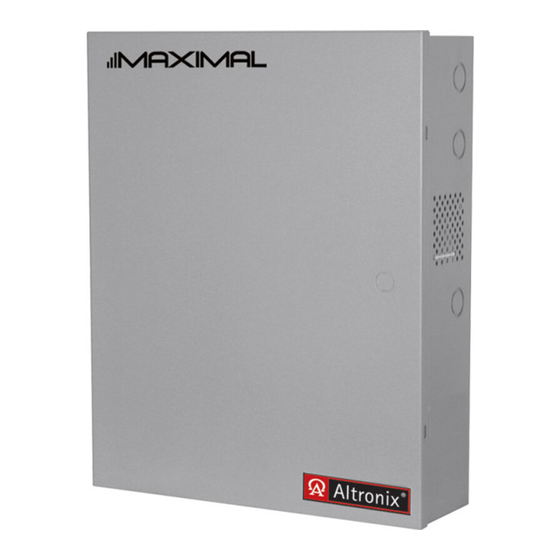

Maximal DV Series
Dual Power Supply
Access Power Controllers (PTC)
Models Include:
Maximal11DV
- Power Supply 1: 12VDC @ 3.5A or 24VDC @ 2.7A.
- Power Supply 2: 12VDC @ 3.5A or 24VDC @ 2.7A.
- Sixteen (16) PTC protected outputs.
Maximal33DV
- Power Supply 1: 12VDC or 24VDC @ 5.7A.
- Power Supply 2: 12VDC or 24VDC @ 5.76A.
- Sixteen (16) PTC protected outputs.
Maximal55DV
- Power Supply 1: 12VDC @ 9.5A.
- Power Supply 2: 12VDC @ 9.5A.
- Sixteen (16) PTC protected outputs.
Installation Guide
Rev. 090711
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Maximal75DV
- Power Supply 1: 12VDC @ 9.5A.
- Power Supply 2: 24VDC @ 9.7A.
- Sixteen (16) PTC protected outputs.
Maximal77DV
- Power Supply 1: 24VDC @ 9.7A.
- Power Supply 2: 24VDC @ 9.7A.
- Sixteen (16) PTC protected outputs.
More than just power.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maximal DV Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altronix Maximal DV Series

Summary of Contents for Altronix Maximal DV Series

  • Page 1 Maximal DV Series Dual Power Supply Access Power Controllers (PTC) Models Include: Maximal11DV Maximal75DV - Power Supply 1: 12VDC @ 3.5A or 24VDC @ 2.7A. - Power Supply 1: 12VDC @ 9.5A. - Power Supply 2: 12VDC @ 3.5A or 24VDC @ 2.7A.

  • Page 2: Table Of Contents

    Table of Contents: MaximalDV Series Overview ..........pg. 3 MaximalDV Series Configuration Chart .

  • Page 3: Maximaldv Series Overview

    MaximalDV Series Overview: Altronix MaximalDV Access Power/Controllers distribute and switch power to access control systems and acces- sories. They convert a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into sixteen (16) independently controlled 12VDC or 24VDC PTC protected outputs. These Fail-Safe/Fail-Secure power outputs may be converted to dry form “C”...

  • Page 4: Maximaldv Installation Instructions

    • Power supply input options: a) Factory installed power supplies provide common power for both ACM8CB boards and all connected access control devices. b) An optional external access control power supply may be connected to isolate the ACM8CB boards from the access control devices (only applicable on Maximal11DV). •...
  • Page 5 (b) Fail-Secure Switched Power outputs: For Fail-Secure operation connect the positive (+) input of the access control devices to terminal marked [NO]. Connect the negative (–) input of the access control devices to terminal marked [COM]. 6. Auxiliary Power outputs (unswitched): Connect access control devices that require constant power to terminals marked [C] positive (+) and [COM] negative (–).

  • Page 6: Maintenance

    Maintenance: Unit should be tested at least once a year for the proper operation as follows: FACP Supervision: To ensure proper connection and operation of the Fire Alarm disconnect hookup. Please follow the appropriate procedure below: Normally Open Input: Placing a short between terminals marked [T] and [+ INP] will trigger the Fire Alarm Disconnect.

  • Page 7: Power Supply Board Terminal Identification

    Power Supply Board Terminal Identification: Terminal Legend Function/Description L, N Connect 220VAC 50/60Hz to these terminals: L to hot, N to neutral. Maximal11DV - 12VDC @ 3.5A or 24VDC @ 2.7A to ACM8CB boards. Maximal33DV - 12VDC @ 5.5A or 24VDC @ 5.7A to ACM8CB boards. Maximal55DV - 12VDC @ 9.5A to ACM8CB boards.

  • Page 8: Power Supply Board Stand-By Battery Specifications

    Power Supply Board Stand-by Battery Specifications: Altronix 20 Min. of 24 Hr. of Power Supply Board Battery 4 Hr. of Backup Model Backup Backup 12VDC/ 3.5A 0.5A AL400XB2V 40AH* (Refer to Fig. 1a, pg. 9 Maximal11DV for Switch [SW1] 24VDC/ location and position) 2.7A...

  • Page 9: Power Supply Board Output Voltage Settings

    Power Supply Board Output Voltage Settings: Fig. 1a - Maximal11DV and Maximal33DV Power Supply Board OFF - 24V Fig. 1b ON - 12V OFF - 24V ON - 12V Access Power Controller Typical Application Diagram (for each ACM8CB): Fig. 2 Fig.

  • Page 10: Maximal11Dv, Maximal33Dv, Maximal55Dv

    Fig. 3 - Maximal11DV, Maximal33DV, Maximal55DV Tamper Switch Power Supply Board BAT FAIL NC C NO NC C NO AC FAIL Line Neutral Ground Power Supply Board BAT FAIL NC C NO NC C NO AC FAIL Line Neutral Input 220VAC 50/60Hz CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC stand-by battery.

  • Page 11: Maximal75Dv Battery Hookup And Tamper Switch Installation

    Fig. 4 - Maximal75DV Tamper Switch Power Supply Board BAT FAIL NC C NO NC C NO AC FAIL Line Neutral Ground Power Supply Board BAT FAIL NC C NO NC C NO AC FAIL Line Neutral Input 220VAC 50/60Hz Optional 12VDC Optional 12VDC Rechargeable...

  • Page 12: Maximal77Dv Battery Hookup And Tamper Switch Installation

    Fig. 5 - Maximal77DV Tamper Switch Power Supply Board BAT FAIL NC C NO NC C NO AC FAIL Line Neutral Ground Power Supply Board BAT FAIL NC C NO NC C NO AC FAIL Line Neutral Input 220VAC 50/60Hz Optional 12VDC Optional 12VDC Rechargeable...

  • Page 13: Nec Power-Limited Wiring Requirements For Maximal11Dv

    NEC Power-Limited Wiring Requirements for Maximal11DV: Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this is shown below.

  • Page 14: Nec Power-Limited Wiring Requirements For Maximal33Dv And Maximal55Dv

    NEC Power-Limited Wiring Requirements for Maximal33DV and Maximal55DV: Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this is shown below.

  • Page 15: Nec Power-Limited Wiring Requirements For Maximal75Dv

    NEC Power-Limited Wiring Requirements for Maximal75DV: Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this is shown below.

  • Page 16: Nec Power-Limited Wiring Requirements For Maximal77Dv

    NEC Power-Limited Wiring Requirements for Maximal77DV: Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this is shown below.

  • Page 17: Facp/Optional Power Supply Hook-Up Diagrams

    FACP/Optional Power Supply Hook-up Diagrams: Fig. 10 Optional hook-up using two (2) isolated power supply inputs (Only applicable on Maximal11DV): CUT JUMPERS J1 AND J2 ISOLATED POWER INPUT 12 OR 24 VAC OR VDC (ACM8 POWER) ISOLATED POWER INPUT 12 OR 24 VAC OR VDC (LOCK POWER) Fig.
  • Page 18 FACP/Optional Power Supply Hook-up Diagrams (cont’d): Fig. 13 Normally Open FACP Latching trigger input with reset: FACP N.O. TRIGGER INPUT N.C. RESET SWITCH JUMPER Fig. 14 Normally Closed - Non-Latching FACP trigger input: FACP N.C. DRY TRIGGER INPUT JUMPER Fig. 15 Normally Closed - Latching FACP trigger input with reset: FACP N.C.
  • Page 19 Notes: Maximal11DV / Maximal33DV / Maximal55DV / Maximal75DV / Maximal77DV Access Power Controllers (PTC) Installation Guide - 19 -...

  • Page 20: Enclosure Dimensions

    19” (482.6mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. IIMaximal11DV/33DV/55DV/75DV/77DV Series G27U MEMBER...
