Maintenance; Power Supply Board Output Voltage Settings - Altronix MaxFit FE Series Installation Manual

Unit should be tested at least once a year for the proper operation as follows:
Output Voltage Test:
Battery Test:
Note:
Expected battery life is 5 years; however, it is recommended to change batteries within 4 years or less if necessary.

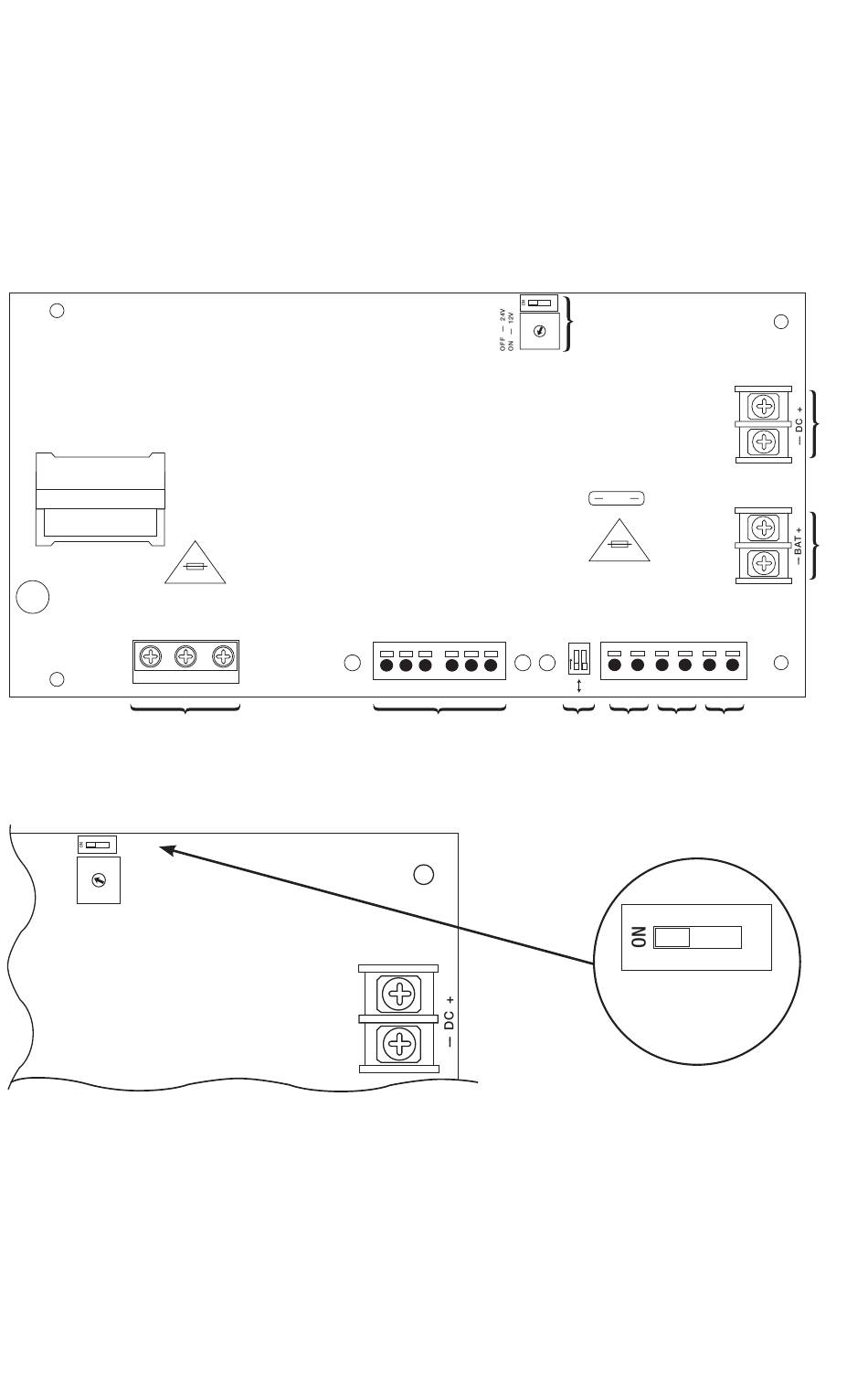

Fig. 1 - eFlow Board configuration
5A 250V
L

Power Supply Board Output Voltage Settings:

Fig. 2
OFF - 24V
ON - 12V
- 4 -
Under normal load conditions the DC output voltage should be checked for proper
voltage level (MaxFitFE Configuration Chart, pg. 2).
Under normal load conditions check that the battery is fully charged, check specified
voltage at the battery terminals and at the board terminals marked [– BAT +] to
ensure that there is no break in the battery connection wires.
Maximum charge current 1.54A.
5A 250V
G N
1a

Maintenance:

AC FAIL BAT FAIL
AC1
NC C NO NC C NO
1b
MaxiFit3FE/MaxFit5FE/MaxFit7FE Expandable Power Systems Installation Guide
1i
10A
10A 32V
AC DELAY SHUTDOWN
O
N
AC DC
1 min. enable
TRIGGER EOL NO
2 hr. disable
RESET
SUPERVISED
1c 1d 1e
Fig. 2a
OFF - 24V
ON - 12V
1h
1g
GND
+ AUX –
1f
