FC100 Series User Manaul

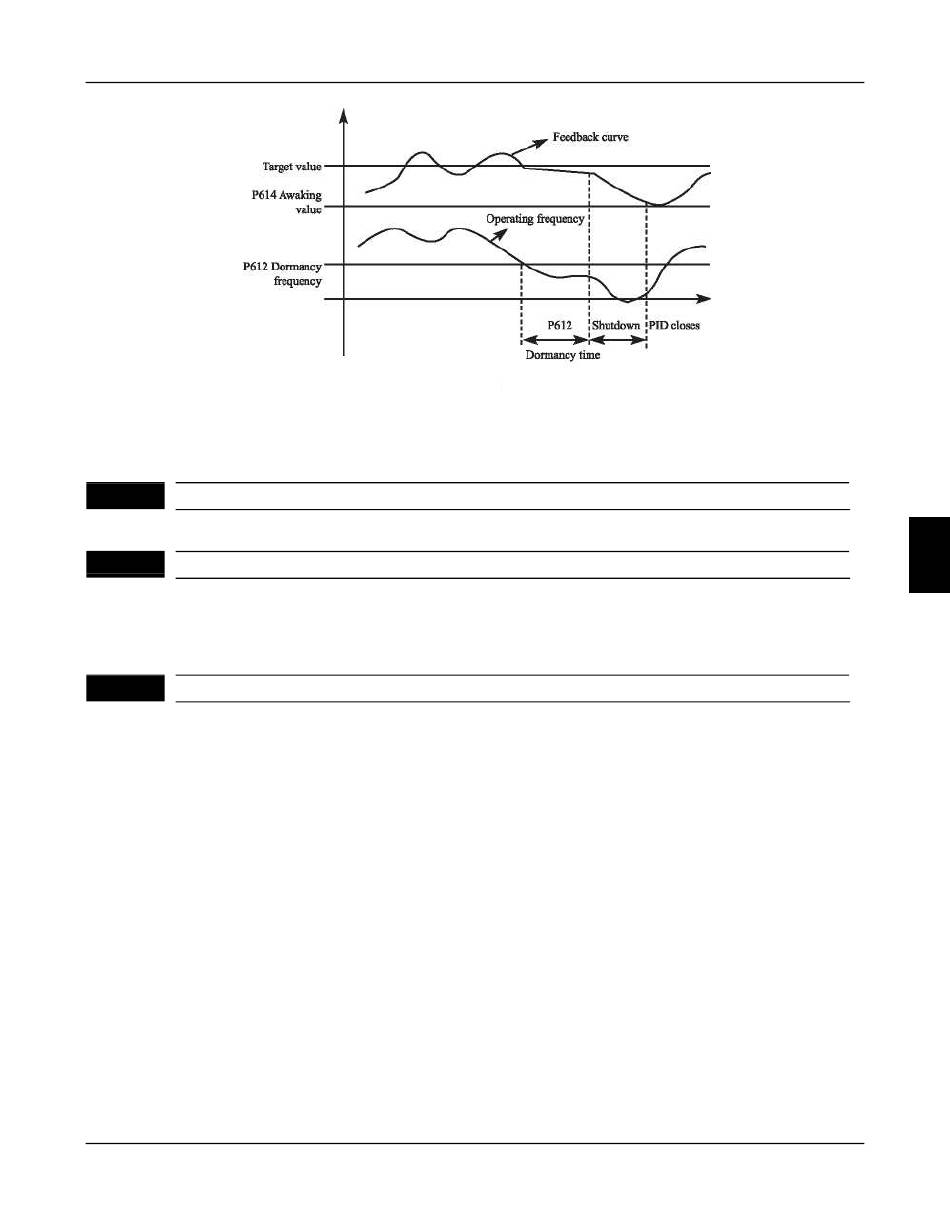

Example: PID action set point is 60% (0 - 100% is corresponding to 0 - 10V), and
the wake-up value is 80%, which is actually corresponding to 0 - 10V, then the
actual wake-up value is 60% x 80% = 48% (corresponding to 0 - 10V).
P614

PID corresponding value of display

Setting Range:0.0~1000
P615

PID digit of display

Setting Range:0.0~5
0: Not display PID feedback value
2: Display 2 digits
P616

PID decimal digit of display

Setting Range:0.0~4
0: Not display after decimal point 1: Display 1 digit after decimal point
2: Display 2 digits after decimal point
4: Display 4 digits after decimal point
P614 PID corresponding value of display.
P614 setting value is corresponding to + 10V analog voltage.
If P614 is set as 200, then it indicates that full span is 200, corresponding to + 10V
voltage.
P615 sets the digit display.
0 indicates not displaying feedback value. Users may select the digit displayed
according to actual need.
P616 PID decimal digit of display.
P616 sets the digit displayed after decimal point.
For example: Four-digit display is required, with 1 digit displayed after decimal point,
target value is set as 50%, and PID corresponding value of display is 200.
Then, the display value is 200 x 50% = 100.0 and the parametergroup is convenient for
users to monitor.
Parameter: P614 = 200; P615 = 4; P616 = 1.
1: Display 1 digit
3: Display 3 digits 4: Display 4 digits 5: Display 5 digits
3: Display 3 digits after decimal point
89
Chapter 6 Description of parameter setting
Default value1000
Unit:1
Default value 4
Unit:1
Default value1
Unit:1
6
