Chapter 4 Digital Keypad Operation
CHAPTER 4 DIGITAL KEYPAD OPERATION

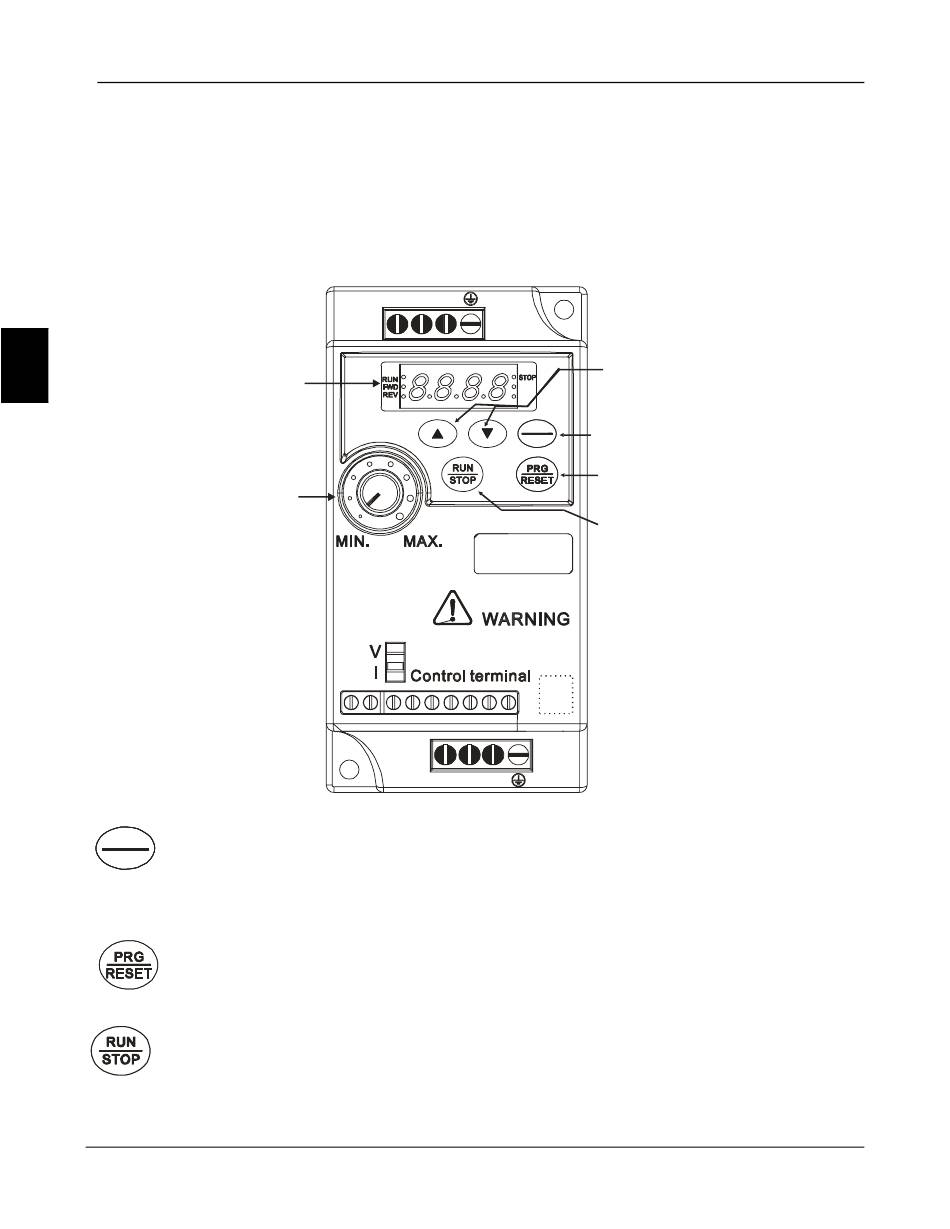

4.1 Description of Digital Keypad

This digital keypad includes two parts: Display panel and keypad. Display panel
provides the parameter display and shows operation status of the AC drive. Keypad
provides programming interface between users and AC drives.
4

ENTER/DISP

ENTER ENTER ENTER
DISP DISP DISP
Shift / Enter /Switch Display Button
shift to another digit or switch to another display by short-pressing,confirm
a setting by long-pressing

PRG/RESET

Program key / fault reset button
short press for programming key, press 2 seconds for the result button
Run/Stop
Press to Start or Stop the AC drive operation. This key can only be used to Sto
the AC Drive when the drive is controlled by the External Control Terminals.
R/L1 S/L2 T/L3
LED display
Frequency
setting knob
UP/DOWN
Function
ENTER ENTER ENTER ENTER ENTER ENTER ENTER
DISP DISP DISP DISP DISP DISP DISP
Display key
Data
Confirmation key
RUN/STOP
FC
RS-485
U/T1 V/T2 W/T3
22
