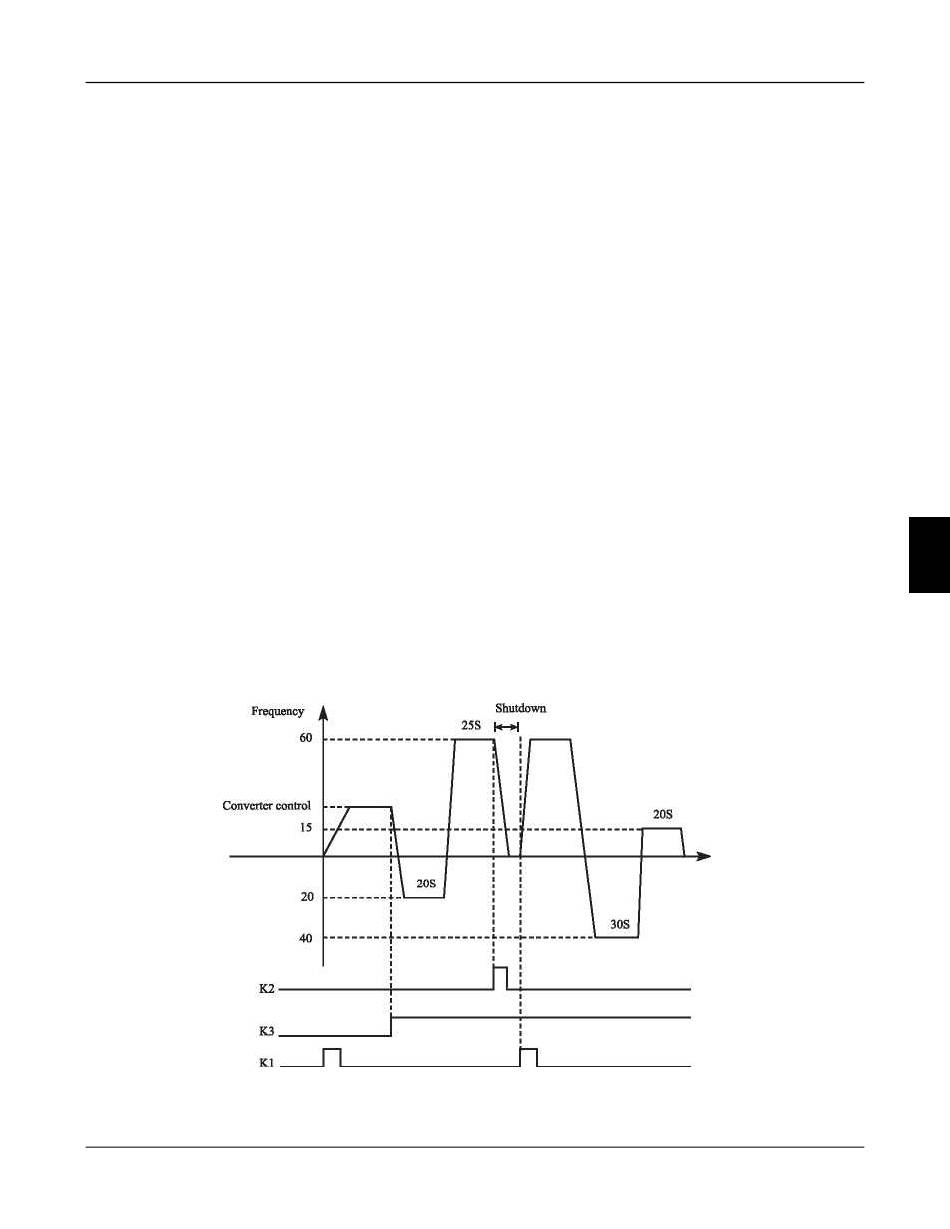

The binary system number 01010 is transferred to decimal system
number: 1x21+1x23+8=10
Define to: P533=10
The parameter defines to:
P101=3 Keyboard potentiometer setting mode: dominant
frequency is controlled by potentiometer
P 102=2 Running setting option: Multifunction end input
P105=60 The max. frequency is 60HZ
P107= 10 P108=10 (acceleration/deceleration time 10S
P314=6 S1 end is running forward
P318=8 S2 end is ceasing
P315=20 FWD end is PLC starting to running
P500=1 programming memory
P501=1 PLC is on
P502=0 PLC operation one circle and then ceasing
P503=1 Segment 1 rated 20Hz
P504=60 Segment 1 rated 60Hz
P505=40 Segment 1 rated 40Hz
P506=15 Segment 1 rated 15Hz
P518=10 Segment 1 rated running duration is 10s
P519=20 Segment 1 rated running duration is 25s
P520=25 Segment 1 rated running duration is 30s
P521=30 Segment 1 rated running duration is 30s
