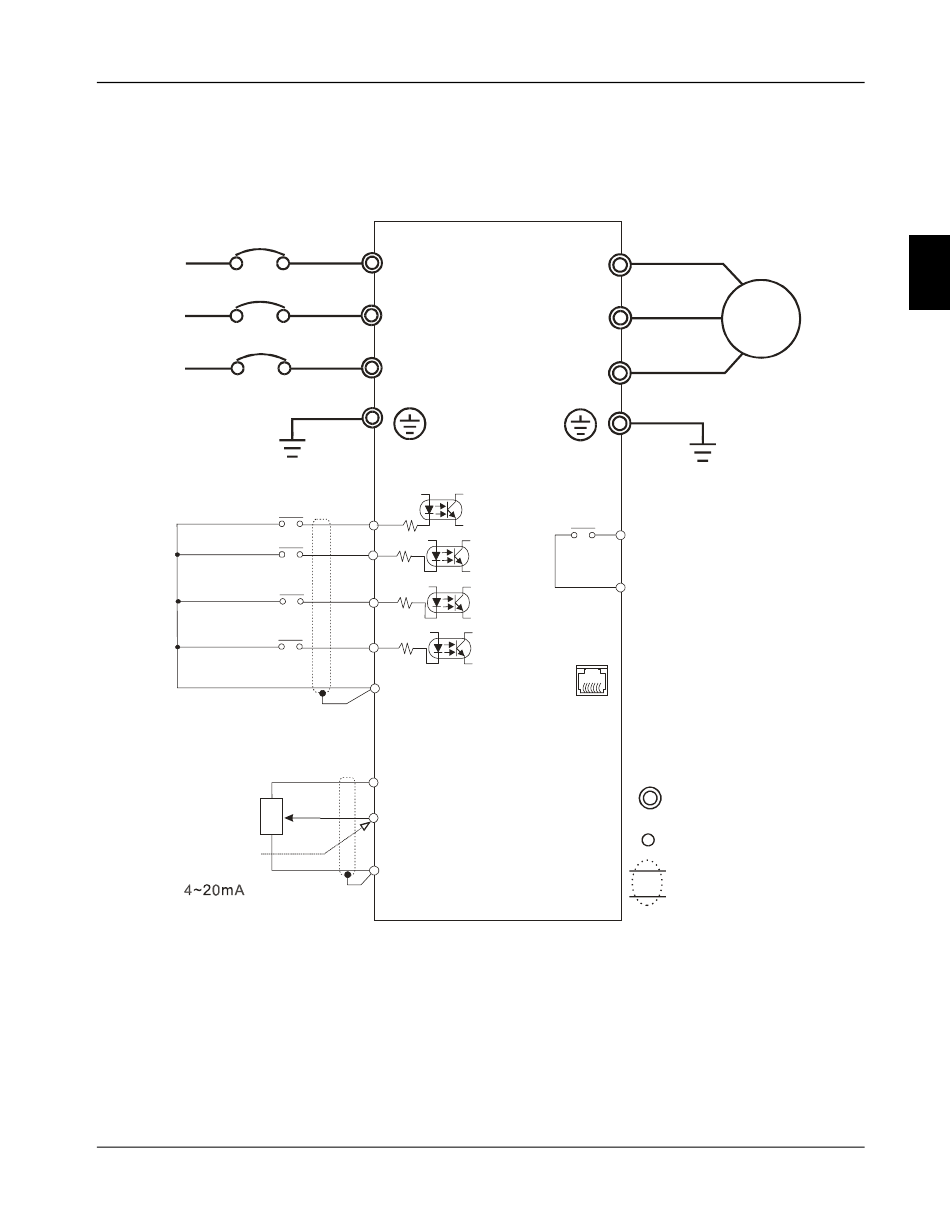

3.1 Basic Wiring Diagram

Users must connect wiring according to the circuit diagram shown below. Please follow all
National and State wiring codes, when wiring the FC100.
Main Circuit Power
Factory default settings
Forward/Stop
Reverse/Stop
Reset
Multi-step 1
Common Signal
Power supply for Potentiometer
+10V 10mA(MAX)
Master Freq. setting
3
VR
Analog voltage
0 10VDC
1
VR 3K 5K
Analog current
NOTE: Do not plug in a Modem or telephone line to the RS-485 communication port,
permanent damage may result. Terminals 1 & 2 are the power source for the
optional copy keypad and should not be used while using RS-485
communication.
*
+18V
4.7K
+18V
4.7K
+18V
4.7K
S1
+18V
4.7K
S2
GND
+10V
2
AVI
GND
