Summary of Contents for junger V*AP

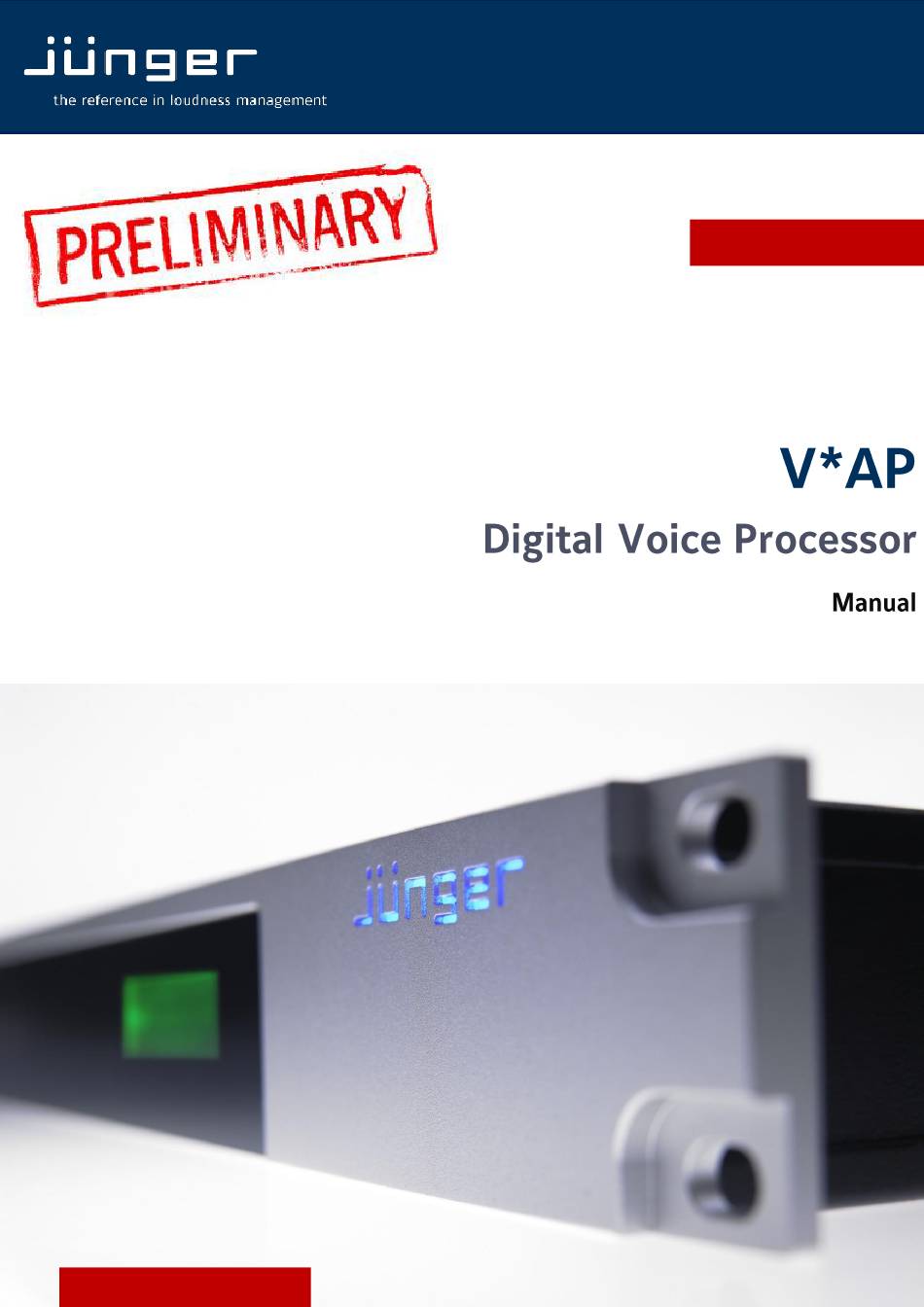

- Page 1 V*AP www.jungeraudio.com...
- Page 2 • Monitor output extra feed from the DSP to monitor DSP processing blocks • SNMP agent SNMP v1, see V*AP-MIB • Remote control l-s-b EmBER plus protocol for VSM integration, 3 party API Rev. 130222...
-
Page 3: Table Of Contents
Getting Started – quick start guide ……………………………………………………………….. Getting Started – IP setup in general ……………………………………………………………. Getting Started – IP setup of the V*AP – via console interface …………………………….. Getting Started – IP setup of the V*AP – via web browser ……………………………………... - Page 4 Technical data – interface boards – 4x analog I/O [AN 144] …………………………………. Technical data – interface boards – 8x analog I/O [AN 108] …………………………………. Technical data – V*AP rear connectors – pin assignment …………………………………. Technical data – optional interface modules – pin assignment ……………………………..
-
Page 5: Introduction
Junger Audio’s application manager J*AM is also available as an add on and can be attached by a few simple clicks to the V*AP so that users can display level bar graphs. Completing the feature set of the V*AP is the availability of an SNMP agent, which provides traps and status polling. -
Page 6: Ap Front Panel View
V*AP V*AP front panel view The front panel of the V*AP has a 3 line status display and a hidden touch button 2.5cm left from the display: Display level 1 Power up display Display line 1 Status [OK / ERROR]... -
Page 7: Block Diagram
AES42 input module. The sync. circuit can deal with all formats to integrate the V*AP into digital facilities with from 44.1 to 96kHz sample rate. Other devices may be synchronized by the word clock output of the V*AP. -
Page 8: Control, Operating & Event Concept
ON AIR or offline for the respective part of the V*AP. The presets of the V*AP are persistent by nature. You are working directly on the preset memory, i.e. you need not worry about storing such presets. The V*AP does it for you. -
Page 9: Audio Processing Blocks
Getting Started – quick start guide Before the V*AP can be used, there are some basic configuration steps which must be followed in the order set out below. This example assumes you will process one physical condenser microphone and feed the signal to your digital mixing desk that runs at 96kHz sampling rate. - Page 10 V*AP Go for item 2 and press <ENTER> : "Your choice: 2" "Current network configuration IP Address : 10.110.88.1 Netmask ... : 255.255.0.0 Gateway ... : 0.0.0.0 You must enter the IP address and the netmask. Here is an an example : Enter new IP address, press ENTER to cancel : "192.168.176.78"...
-
Page 11: Getting Started - Ip Setup Of The V*Ap - Via Web Browser
* Read the default IP address printed on a label at rear of the device. * Set up network parameters of your PC to fit the default IP address of the V*AP (net mask = 255.255.0.0). * Connect the V*AP with the PC either by an Ethernet cross over cable or by a switch. -
Page 12: Operating - Menu Structure Of The X*Ap Remote Panel
Power up display – may show up to 4 V*APs enabled for remote control for this X*AP RM remote panel. The example below shows one pre defined V*AP to connect with : Pressing one of these buttons will connect with the respective V*AP... -
Page 13: Operating - Menu Structure Of The X*Ap Remote Panel - Menu Tree
IP & ON / OFF Device 4 setup IP & ON / OFF <ESC> back to power up display <connect> will connect with that particular V*AP and opens the main display : Hotkey # 1 user defined 2 user defined... -
Page 14: Setup Gui - Connecting With The V*Ap - Audio Processor - Overview
V*AP Setup GUI – connecting with the V*AP – AUDIO PROCESSOR > Overview You must open a browser and enter the IP address of the V*AP into the URL field and press <Enter>. The browser will retreive the necessary information and open the entrance page : The entrance page is the AUDIO PROCESSOR pane with its sub pane Overview. -
Page 15: Setup Gui - System - System Status
Displays a list of messages produced by the system controller. System Log The system controller messages will be logged. This log information may be downloaded from the device to sent it to Junger Audio in case of a problem : SYSTEM > Admin > Diagnostics > get diagnostics file... -
Page 16: Setup Gui - System - Overview
V*AP Setup GUI – SYSTEM – Overview The graphical overview shows the main building blocks of the device including the options installed, in this example the microphone interface placed into the interface 2 location (see rear view). You may click on the boxes and the respective setup page will open. The navigation is based on URLs so you may use the <Back>... - Page 17 Authentication To prevent non authorized people from changing V*AP settings the administrator may assign passwords for either the admin and/or an operator (same applies for talent/artist). While the admin is allowed to set everything, an operator is just allowed to load presets.
-
Page 18: Setup Gui - System - Setup
The file will be presented in XML format for download. If you experience unexpected behavior of the device you may be asked by the Junger service team to send such file by e-mail for analysis. Setup GUI – SYSTEM – Setup... -
Page 19: Setup Gui - System - The Preset Concept In Detail
Setup GUI – SYSTEM - the preset concept in detail The example above shows the preset concept of the V*AP. It is the central theme of the device. For all relevant setting of the device one set of ON AIR parameters and a practically unlimited number of PRESETS are available. -
Page 20: Setup Gui - System - Snmp
V*AP Setup GUI – SYSTEM – SNMP This pane is meant for basic settings of the SNMP Agent of the device. If you are not familiar with the use of SNMP protocol for system monitoring you should not enable the SNMP agent. -
Page 21: Setup Gui - System - Firmware Update
V*AP Setup GUI – SYSTEM – Firmware Update The files to update the V*AP will be available in ZIP format. You must unpack them to your PC in order to access them for the update procedure. You will find an image file for the V*AP core system in the format : "rel_map_x_y_z.img"... -
Page 22: Setup Gui - Interfaces - Aes I/O
V*AP Setup GUI – INTERFACES – AES I/O Input Status The AES input has a status detection that may show : PCM, Non PCM (e.g. Dolby encoded signal) or Fail (no carrier, unlock, cranky [too much jitter]). The non PCM status will be retrieved from a logical combination of the Validity flag and the channel status. -
Page 23: Setup Gui - Interfaces - Analog Mic
Important note! The AES relay bypass circuit of the I/Os is deactivated inside the V*AP. It is possible to activate it if necessary. You must open the cover plate from the V*AP unit and locate the jumper shown in the schematic below : You must insert the jumper to activate the AES I/O for power fail operation. -
Page 24: Setup Gui - Interfaces - Sdi I/O Interface - De-Embedder
V*AP Set up GUI – INTERFACES – SDI I/O interface – De-Embedder If the V*AP is equipped with an optional SDI interface the following settings will be available for it : This pane has three more sub panes implemented The De-Embedder has a... - Page 25 V*AP "DSP 1/2" …. "OFF" Signal labels from the V*AP router that shows the origin of the signal pair presented to the embedder. Video Delay For compensation of any kind of audio processing delay within the chain of devices you may use a Video Delay.
-
Page 26: Setup Gui - Interfaces - Sdi I/O Interface - Setup
V*AP Set up GUI – INTERFACES – SDI I/O interface – Setup Relay Bypass Will deactivate the Bypass Relay. It provides a shortcut from SDI-IN to SDI-OUT1 and disconnects the de-embedder from the SDI input. This relay also serves as a fail bypass if the power is off. -
Page 27: Setup Gui - Interfaces - Sdi I/O Interface - Status
V*AP Set up GUI – INTERFACES – SDI I/O Interface – Status This pane shows the status of the SDI interface (if one is installed) : Video Standard Display of the video standard detected by the SDI input. SDI Bypass Turns yellow if the SDI bypass function is activated. -
Page 28: Setup Gui - Routing
Setup GUI – ROUTING This is the control center of the V*AP as it defines the audio signal flow inside the device : The routing example shows both mic inputs connected to the voice channel inputs of the DSP. The AES input is connected to the DSP program input while the DSP output is connected to the AES output. -
Page 29: Setup Gui - Audio Processor - Overview
V*AP Setup GUI – AUDIO PROCESSOR - Overview The overview shows the actual signal routing of the audio processor blocks, rendered by the DSPs. The processing blocks in use, which may be activated from their individual setup panes, will be indicated in green. -
Page 30: Setup Gui - Audio Processor - Setup
V*AP Setup GUI – AUDIO PROCESSOR - Setup Voice Processing Signal Chain Order The order of the processing blocks can be re-arranged: De-Esser, Filter, Dynamic Individually to match your preference. Processing Bypass [On / Off] You may turn the bypass on/off from here by activating the check box. -
Page 31: Setup Gui - Audio Processor - M/S
V*AP Input [Enable / Disable] Enables or disables the input section Mute [On / Off] Input Gain (dB) [-80.0 … 0.0 … 20.0] Mono [L/R Stereo / L+R Mono / L/L Mono / R/R Mono] Input HPF (Hz) [OFF / 20 / 40 / 80 / 120]... -
Page 32: Setup Gui - Audio Processor - De-Esser
V*AP Setup GUI – AUDIO PROCESSOR – De-Esser Link [Unlinked, Linked] For stereo operation you may link the setup parameters De-Esser [On / Off] Frequency (Hz) [1000 … 3000 … 16000] Range (dB) [-20.0 … 0.0] Filter Type [Peak / High Shelf] [0.4 …... - Page 33 V*AP Program / Section [Voice] Selects the Spectral Signature source. This selection is depending on the Program Configuration or Channel Mode (SYSTEM > Setup) of your system. Channel [V1 / V2] Depending on whether a stereo or multichannel source is selected under 'Program / Section', the appropriate channels will be available for individual control.
- Page 34 V*AP Signature / Max Gain (dB) [0 … 12] Spectral Signature does not work with an absolute level reference. Its frequency response is based on level differences between bands only. Thus a signature is only represented on a relative graph showing the level positions related to the neighboring bands.
- Page 35 V*AP Adaption Speed [0 / 2 Mid / 3 / 4 Fast] This parameter affects the time taken for the bands to reach their target values. Fast settings even out differences between sources, but can lead to audible transitions. They are well suited for single channel signals, for example to even out sound differences due to movement in front of a microphone.
-
Page 36: Setup Gui - Audio Processor - Eq
V*AP Setup GUI – AUDIO PROCESSOR – Filter – Equalizer Link [Unlinked, Linked] For stereo operation you may link the setup parameters Equalizer [On / Off] Band 1 Filter Type [OFF / Low Shelf / Peak / High Shelf High Cut (LPF) / Low Cut (HPF) Frequency (Hz) [20 …... - Page 37 The dynamics section includes some technical features that are explained below : Look Ahead Delay Traditionally, all Junger Audio dynamics feature a look ahead delay (LAD) of 2 milliseconds. This allows the system to process fast transients without missing even the steepest peaks. As the live audio signal must be delayed for two milliseconds, this lag needs to be considered when measuring overall latency.
- Page 38 This is the 'classic' approach of earlier Junger Audio compressor designs. The Downward mode is the more common way of dynamic range compression. Here all signals above threshold are reduced according to the ratio while all signals below threshold remain untouched.
- Page 39 V*AP Make-Up To set up the desired output level of the compressor, Make-Up Gain (or attenuation) needs to be applied. This is a simple and static output level adjustment without any dynamic content. In Auto mode the amount of Make-up Gain is automatically determined depending on the threshold and ratio settings.
- Page 40 V*AP Processing The timing characteristics of the Jünger Audio – Downward Compressor and Profile compressor are generated adaptively Soft Limiter according to the incoming signal structure. The overall timing can be set compressor up from fast and responsive settings soft limiter...
-
Page 41: Setup Gui - Audio Processor - Leveler
V*AP Setup GUI – AUDIO PROCESSOR – Leveler Link [Unlinked, Linked] For stereo operation you may link the setup parameters Leveler [On / Off] Input Trim (dB) [-80.0 … 0.0 …. 20.0] Max Attenuation [0.0 … 40.0] (dB) Target (dBFS) [-50.0 …... - Page 42 V*AP Freeze range Instead of an absolute freeze level we implemented a Freeze Range within the Leveler where speed is constantly reduced. At the lower end of the range, the leveling process comes to a full stop. The Freeze Range begins at the maximum gain point. Example: 1.
-
Page 43: Setup Gui - Audio Processor - Voice Over
V*AP Setup GUI – AUDIO PROCESSOR – Voice Over The voice over section allows for manual / automatic (ducking) mixing of a voice channel over the program feed. The dynamic schematic in the top of the pane shows the signal flow :... -
Page 44: Setup Gui - Audio Processor - Output
V*AP Setup GUI – AUDIO PROCESSOR – Output The Output block allows you to use a True Peak limiter, Mute and Attenuate the output signals from the DSP, do a mono conversion for stereo channels and add delay. This may be set independently for both the voice and the program channel. -
Page 45: Setup Gui - Audio Processor - Monitor
V*AP Setup GUI – AUDIO PROCESSOR – Monitor As seen on the AUDIO PROCESSOR > Overview page the V*AP provides for a monitor facility that may be connected with the function blocks of the audio processor (DSP). For the example below the monitor is connected to the voice channel in stereo mode [V1/V2 Stereo]... -
Page 46: Setup Gui - Events - Overview
The V*AP has two different action types – "Event Actions" and "Bypass Actions" An action runs like a flip-book inside the V*AP. This powerful technology spans from simply recalling a certain parameter over narrator specific parameter combinations (household name: "Preset") to the complete reconfiguration of the V*AP including all signal routing, processing parameters and so forth. -
Page 47: Setup Gui - Events - Triggers - Sources - Remote Hotkeys
Network trigger are based on the EmBER+ protocol from Co. l-s-b http://www.l-s-b.de/uk The V*AP receives such trigger over the TCP/IP network. The triggers are issued by a device that has implemented the EmBER+ protocol (e.g. VSM server). You may assign these triggers to virtual panels as well as physical (e.g. -
Page 48: Setup Gui - Events - Triggers - Sources - Parameters
"Device" > controller_dsp > network_trigger > parameters > e.g. "idx_1" As a value you will receive the trigger name from the V*AP. In this example it is the first trigger named : "Movie". Setup GUI – EVENTS – Triggers – Sources – Parameters Above is an example of parameter trigger sources. -
Page 49: Setup Gui - Events - Events - Preset Events
Preset event is executed, these presets will be loaded into the function block. Here you have the possibility to reconfigure the V*AP completely, partially or to change a few audio parameters marginally. Reconfigure also means you can use this part to create snap shots! -
Page 50: Setup Gui - Events - Events - I/O Events
Setup GUI – EVENTS – Events – I/O Events I/O events at the moment are restricted to control the GPOs of the V*AP : Each GPO (when incorporated into that I/O event) can be set to the behavior as follows : Clear Turns a GPO off that was previously turned on. -
Page 51: Setup Gui - Events - Events - Bypass Events
Setup GUI – EVENTS – Events – Bypass Events The V*AP allows you to bypass some or all of function blocks either to not use them or for A/B comparison : Setup GUI – EVENTS – Actions – Event Actions... -
Page 52: Setup Gui - Events - Actions - Bypass Actions
But it also allows you to directly turn the bypass of one, some or all function blocks on by simply clicking on the check boxes in the right hand panel : For detailed explanations pls. see the quick start guide that came with the V*AP. -
Page 53: Talent Gui
One may reach this GUI by using the URL: "<IP address>/talent1" for mic channel one and "<ip address>/talent2" for mic channel two if the V*AP is in voice channel mode 2 x Mono. If the voice channel mode is set to Stereo both URLs will open the talent GUI and will show I/O bar graphs for 2 channels. -
Page 54: Technical Data - V*Ap
V*AP Technical data – V*AP • Power supply dual power supply, auto fail over AC 85 V – 264 V, 50 Hz … 60 Hz 58W max • AES input AES3 110 Ohm balanced 0.3 V … 5.0 Vpp sample rate converter: 24 Bit, 32 kHz …... -
Page 55: Technical Data - Interface Boards - Sdi De-Embedder / Embedder [Sdi 150]
V*AP Technical data – interface boards – SDI De-Embedder / Embedder [SDI 150] • SDI input standards (auto sensing) 3G - SMPTE 424/425M (Level A/B) HD - SMPTE 292M SD - SMPTE 259M formats 1080p23.98, 24, 25, 29.97, 30, 50, 59.95, 60 1080i50, 59.94, 60... -
Page 56: Technical Data - Interface Boards - 4X Aes I/O [Dd 188]
V*AP • Special features relay bypass (manual or automatic on power fail) 320 ms video delay (number of frames depends on the video format) 16 chanel audio de-embedder / embedder VANC (SMPTE 2020-2) de-embedder / embedder 16 x 16 de-embedder matrix (mono routing) -
Page 57: Technical Data - V*Ap Rear Connectors - Pin Assignment
V*AP Technical data - V*AP rear connectors - pin assignment connector : GPI/O female 25-pin Sub-D GPI_1, 2, 3, 4 common GPI_1 GPI_2 GPI_3 GPI_4 GPI_5, 6, 7, 8 common GPI_5 GPI_6 GPI_7 GPI_8 Isolated 5V GPO_1, 2, 3, 4 common... -
Page 58: Technical Data - Optional Interface Modules - Pin Assignment
V*AP Technical data - optional interface modules – pin assignment 4x analog I/O [AN 144] 4x AES I/O [DD 188] 8x analog out [AN 108] connector : 4 x analog I/O connector : AES I/O connector : 8 x analog out... -
Page 59: Safety Information
Risk of explosion : The device contains a lithium battery. If replaced incorrectly or by a different or inadequate type an explosion may occur. Warranty standard Junger Audio two-year warranty on parts and labor. Specifications are subject to change without notice... - Page 60 V*AP www.jungeraudio.com...
