- Page 1 digital dynamics processor accent2 release 1.1...
- Page 3 FOREWORD Thank you for buying and for using the premium series digital dynamics processor ACCENT2. Not only you have aquired the latest generation of digital dynamic range processing, but also a piece of equipment which is unique in its design and specification. Please read this manual carefully to ensure you have all the information you need to use the digital dynamics processor ACCENT2.
-
Page 4: Table Of Contents
CONTENTS 2. Function description ..............2.1 Basic description ............... 2.2 Block diagram ..............2.3 Audio signal processing ............ 2.3.1 Gain ................2.3.2 Compressor ..............2.3.3 Expander ..............2.3.4 Limiter ................ 2.3.5 Filter ................2.3.6 Dynamic filter ............. 2.3.7 Dither ................. 2.4 Configurable audio path ........... - Page 5 5. Operation ................5.0 Description of operation ............. 5.1 Adjustment of parameters ..........5.2 Level display ..............5.3 Gain menu ................ 5.4 Config menu ..............5.5 Compressor menu ............. 5.6 Limiter menu ..............5.7 Expander menu ..............5.8 Filter menu ................. 5.9 Setup menu ...............
-
Page 7: Function Description
2. FUNCTION DESCRIPTION FUNCTION DESCRIPTION BASIC DESCRIPTION The digital dynamics processors by Jünger operating in conjunction with multiple frequency Audio are high quality devices for adjusting the linear control circuits. The resulting attack and dynamic range of digital audio signals in release times of the system are variable and mastering or studio applications. -
Page 8: Block Diagram
2. FUNCTION DESCRIPTION BLOCK DIAGRAM page 2-2 operation manual accent2, chapter 2 -Function description-... -
Page 9: Audio Signal Processing
2. FUNCTION DESCRIPTION AUDIO SIGNAL PROCESSING All signal processing is done in the digital Selecting a particular program PRO 0...9 sets domain by floating point signal processors. up the optimum parameters of the dynamics The use of 32 bit word length for calculation processor (attack release times,... -
Page 10: Expander
2. FUNCTION DESCRIPTION 2.3.3 EXPANDER Below an adjustable threshold level an expander can be activated which can lower the amout of noise signals. Range parameter describes the maximum attenuation within 6dB input level change below threshold level. input [dBFS] fig. 2-2: static characteristics: threshold expander... -
Page 11: Filter
2. FUNCTION DESCRIPTION 2.3.5 FILTER The digital dynamics processor offers a filter parameter centre frequency , range (filter gain) for the creation of the desired sound setting or and Q are adjustable. for creating dynamic range processing (f.i. de- The Q control affects how frequency selective esser). -
Page 12: Dynamic Filter
2. FUNCTION DESCRIPTION 2.3.6 DYNAMIC FILTER In dynamic mode the filter activity is controlled All spectral parts of the signal (selected by the by the audio level. The filter get active only if filter band) which has more level as the the level of incoming audio signal reaches a adjusted threshold level will be reduced by the defined threshold level. -
Page 13: Configurable Audio Path
2. FUNCTION DESCRIPTION CONFIGURABLE AUDIO PATH audio chain processing FLT-EXP-COMP-GAIN-LIM configurable through the user to extend the possible applications of the device. EXP-FLT-COMP-GAIN-LIM Changing the audio chain means to move the filter block in one of four possible positions. EXP-COMP-GAIN-LIM The selection is to do by calling the CONFIG menu. -
Page 14: Remote Fader
2. FUNCTION DESCRIPTION REMOTE FADER If a fade is performed before the ACCENT, the compressor will try to increase the level as the fader decreases. Therefore the fade must be done after the compressor. ACCENT is supporting the performance of hand-fades by using a remote fader. -
Page 15: Installation
3. INSTALLATION INSTALLATION UNPACK THE UNIT The digital dynamics processor ACCENT2 was Please examine carefully the packaging and its carefully packed in the factory and the contents for any signs of physical damage, packaging designed protect which may have occured in transit. equipment from rough handling. -
Page 16: Synchronization Of Digital Output
3. INSTALLATION SYNCHRONIZATION OF DIGITAL OUTPUT The digital dynamcis processor ACCENT2 has reference frequencies or external sync. two digital signal outputs. The main digital The requested sample rate for the main digital output (XLR1, BNC1) can be combined with a output with SRC can be set in setup menu. -
Page 17: Audio Connections
3. INSTALLATION AUDIO CONNECTIONS The ACCENT2 audio inputs are RFI filtered and Balanced connections are to be preferred with the outputs electronically balanced and whenever other equipment provides floating. All the audio connectors are via rear balanced inputs/outputs. line level panel mounted connectors. -
Page 18: Serial Remote Control
3. INSTALLATION Tally output level L: 1,5V or less level H: 3,5V or more +5 V 110 Ohm TALLY OUT max. 25 mA 3.8.2 SERIAL REMOTE CONTROL (RS-232) The Digital Dynamics Processor ACCENT2 changeover can be remote-controlled by means of serial of parameter remote RS-232. -
Page 19: Location Of Parts And Controls

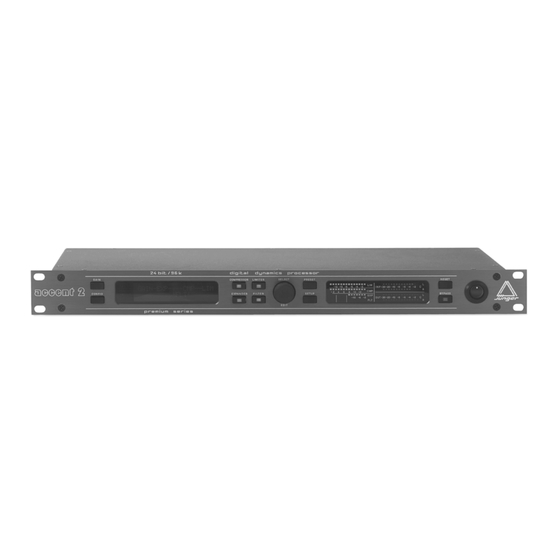

4. LOCATION OF PARTS AND CONTROLS LOCATION OF PARTS AND CONTROLS FRONT PANEL multiview display PRESET SETUP SELECT /EDIT knob GAIN RESET EDIT mains display switch BYPAS COMPRESSOR CONFIG EXPANDER FILTER LIMITER fig1: front panel accent2 GAIN selection/adjustment of gain and balance CONTROL ELEMENTS CONFIG... -
Page 20: Rear Panel
4. LOCATION OF PARTS AND CONTROLS REAR PANEL DIGITAL OUTPUTS SYNC ANALOG IN/OUT ANALOG OUTPUTS SERIAL DIGITAL INPUTS INPUTS REMOTE accent2 REMOTE DIGITAL INPUT DIGITAL OUTPUT SYNC IN ANALOG OUTPUT ANALOG INPUT BNC1 BNC1 FADER 230 V BNC2 BNC2 50 Hz 200 mA XLR1 XLR2... -
Page 21: Operation
5. OPERATION OPERATION DESCRIPTION OF OPERATIONS The use of the digital dynamics processor ACCENT is very easy. The setup or the programming of the digital dynamics processor ACCENT is made by adjustment of various parameters and settings. The description is made related to the functions in the menus. 5.1 adjustment of parameters 5.2 level display 5.3 gain menu... -
Page 22: Level Display
5. OPERATION LEVEL DISPLAY Multiview level display shows input level, output level and all gain changing of the different processing blocks of both channels. limiter reduction overload insert send compression gain overload insert return input left+right stereo expander reduction dither dynamic filter activity output left+right RESET... -
Page 23: Compressor Menu
5. OPERATION COMPRESSOR MENU (compressor button) Compressor menu shows compressor settings. Adjustments are made by pushing and turning SELECT knob (see 5.1). CMP RATIO RANGE PRO CMP: compressor on/off (by pushing SELECT knob, green LED in button lits if function block is switched on) RATIO: compressor ratio 1.0:1 ...4.0:1 in 13 steps RANGE:... -
Page 24: Filter Menu
5. OPERATION FILTER MENU (filter button) Filter menu shows filter settings. Adjustments are made by pushing and turning SELECT knob (see 5.1). FLT MODE DYNAMIC >> PEAK first page FLT: filter on/off (by pushing SELECT knob, green LED in button lits if function block is switched on) MODE: low shelving / peaking / high shelving... - Page 25 5. OPERATION Interface assignment INPUT selection of input source ANALOG, XLR-1, XLR-2, BNC-1, BNC-2, 2-Wire INSERT selection of insert connectors (send&return) off, ANALOG, XLR-2, BNC-2 OUTPUT selection of output mode normal, 2-Wire if analog input is selected next menu is SYNC MODE selection of sync for A/D-converter (also system clock rate) internal 44.1, 48, 88.2, 96,...
-
Page 26: Recall And Storage Of Presets
5. OPERATION GPI assignment ACCENT has four GPI inputs for remote control. Following functions can be assigned to these inputs (on if GPI input is switched to ground): preset 1, preset 2, preset 3, preset 4 bypass on, compressor on, limiter on, expander on, filter on, reset (clip display) GPI is overwriting front panel settings. - Page 27 5. OPERATION Save procedure PRESET selection of PRESET menu push SELECT selection of SAVE mode turn SELECT switches to preset number selection push SELECT selection of preset number for saving preset turn SELECT switches to name edit window ok position, default preset name push SELECT selection of character edit position turn...
-
Page 29: Application Notes
6. APPLICATION NOTES APPLICATION NOTES THE JÜNGER AUDIO DYNAMICS PROCESSOR PRINCIPLE A change in the dynamic range of an audio each band are independent of one another and signal is a non-linear process. The gain of a can be set in such a way that a broad program dynamic range processor is not constant as it is range can be processed well. -
Page 30: Influence Of Signal Delay Time
6. APPLICATION NOTES fig. 1: basic principles of Multi - Band Multi - Loop dynamic range processors delay INFLUENCE OF SIGNAL DELAY TIME The audio signal delay through the dynamics This delay must be considered before processor is approx. 2ms @ 44.1/48kHz or attempting to mix signals processed by the 1ms @ 88.2/96kHz due to delaying of the... -
Page 31: Selection Of Parameters To Increase Loudness
6. APPLICATION NOTES Parameter related to the transient response of attack time of the limiter for very short transients the control circuit are important for distortionfree is zero. processing. These time constants are allways Especially the release time of the control circuit adaptive controlled without... -
Page 33: Boot Display And Trouble Shooting
7. BOOT DISPLAY AND TROUBLE SHOOTING BOOT DISPLAY AND T ROUBLE SHOOTING BLE SHOOTING BOOT DISPLAY BOOT DISPLAY display display meaning / explanation meaning / explanation DYNAMICS display of model PROCESSOR C: x.x display of loaded controller software version D: x.x display of loaded dsp software version ERROR MESSAGES AND TROUBLE SHOOTING display... -
Page 35: Technical Specifications
8. TECHNICAL SPECIFICATIONS T ECHNICAL SPECIFICATIONS DIGITAL SIGNAL PROCESSING sampling rate 44.1 kHz ... 96 kHz audio data format 24-bit (AES/EBU) dither TPDF type, 16bit, 20bit channel status bits transparent or conversion to consumer or professional sample rate converter asynchronous 44.1 kHz ... 96 kHz, 24bit, THD+N: -110dB processing delay 2ms (44.1/48kHz), 1ms (88.2/96kHz) -
Page 36: General
8. TECHNICAL SPECIFICATIONS GENERAL dimensions 19“, 1RU, 250mm depth weight appr. 4kg mains voltage 100-240V, 50 to 60 Hz power consumption <20VA output format same as input REMOTE serial RS-232, 9pin SUB-D female GPI/Tally TTL-level, 9pin SUB-D female fader 1/4“ phone jack options remote fader (50kOhm) page 8-2... -
Page 37: Warranty And Service Information
9. WARRANTY AND SERVICE INFORMATION WARRANTY AND SERVICE INFORMATION JÜNGER AUDIO grants a two-year warranty on the digital dynamics processor ACCENT2 If the unit has to be serviced, please send it, ideally in the original box, to: JÜNGER AUDIO - Studiotechnik GmbH Justus-von-Liebig-Strasse 7 D - 12489 Berlin GERMANY... - Page 39 KONFORMITÄTSERKLÄRUNG DECLARATION OF CONFORMITY Geräteart: Digitaler Dynamikprozessor Type of equipment: digital dynamics processor ACCENT2 Produkt / Product Das bezeichnete Produkt stimmt mit den Vorschriften folgender EU-Richtlinie(n) überein: The aforementioned product complies with the following Europaen Council Directive(s): 89/336/EWG (geändert durch 91/263/EWG und 92/31/EWG) (changed by 91/263/EWG and 92/31/EWG) Richtlinie der Rates zur Angleichung der Rechtsvorschriften der Mitgliedsstaaten über die elektromagnetische Verträglichkeit...
