Assembly - Maxxus 8.1 Operating Manual And Assembly Manual

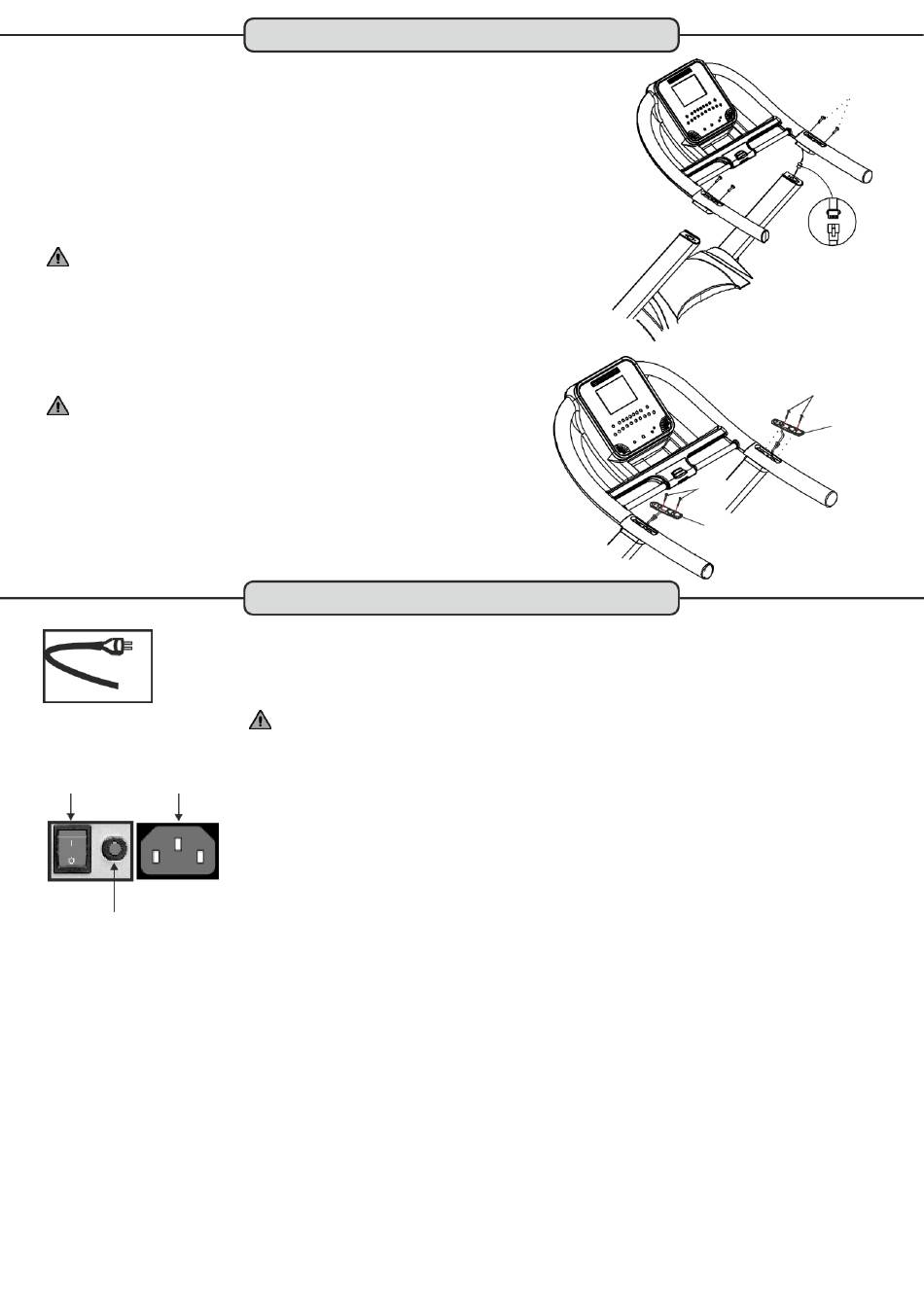

Step 3:
Ideally, you will need 2 people for this step.
Person A holds the cockpit and person B connects
the cable protruding from the right-hand side frame to the
cable coming out of the right-hand side of the cockpit frame
Carefully place the cockpit into the two side frames and attach it on
each side with two hexagonal head screws 8x50 (19).
CAUTION:
Make sure that the cables do not get damaged or jammed!
Step 4:
Attach the keypad (hand pulse sensor + speed control) with two
rounded head screws M3x28 onto the right handrail.
CAUTION: Take care of the cables and be careful not
to damage the handrail keypad
Now fix the other keypad onto the left handrail
(hand pulse sensor + incline control).
Mains Cable
Main Switch
Connector
Fault Current Switch
May vary depending on the model
Fault Current Switch (depending on the model)
There is a fault-current button-switch next to the main switch on the front of the motor cover to prevent the treadmill from
being damaged by electrical surges in the network. This button-switch is triggered off by if a surge in the electrical supply
occurs and acts as a circuit breaker. In this case the treadmill will be completely switched off. If this occurs, switch off the
treadmill at the main switch, and pull the mains cable out of the socket with the plug. Press the button on the fault-current
switch back in. Re-connect the mains cable with the plug and switch the treadmill back on at the main switch.
Fuse (depending on the model)
To protect the treadmill from damage caused by overvoltage of the mains there is a fuse next to the main switch on the
front of the engine cover. This breaks the circuit in the event of an overvoltage, the treadmill is completely switched off. If
this happens, turn off the treadmill with the main power switch and unplug the power cable from the wall socket. Check
the fuse and replace if necessary. Then re-connect the power cable to the socket and switch the treadmill back on using
the main switch.
).
Mains Cable
Connect the power cable coupling to the corresponding plug on the Treadmill. Then
connect the power cable to an electrical socket.
The device may only be plugged in to grounded sockets which have been installed by
a professional electrician. Do not use multiple sockets to connect the treadmill.
If you need to use an extension cable, it must comply with the VDE guidelines.
Main Switch
The main switch is located next to the power connection on the front of the Treadmill. This
switch turns the treadmill on or

Assembly

Mains Cable
off.
Switch position „I" = treadmill switched on
„0" = treadmill switched off
Switch position
