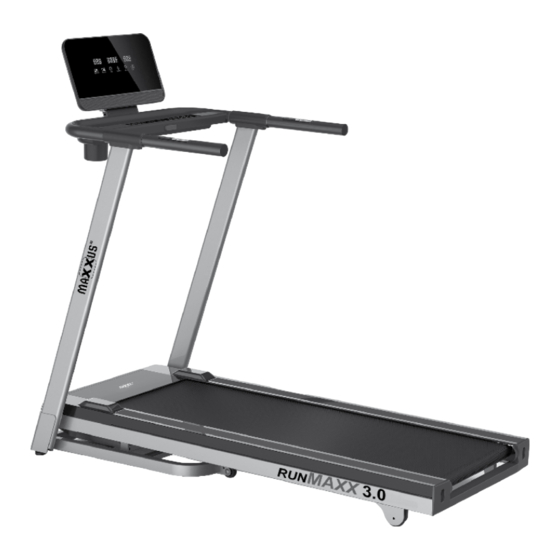

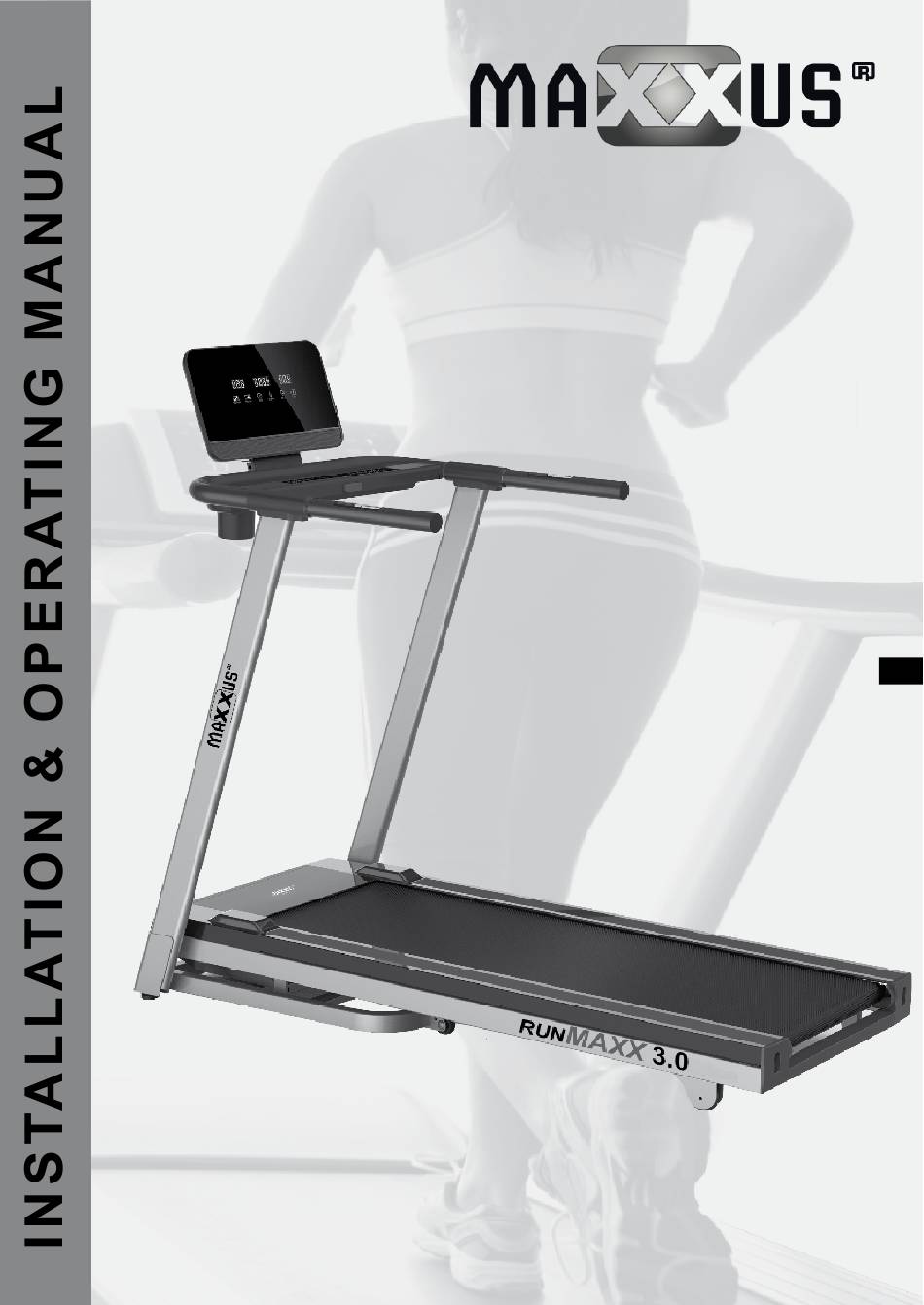

- Page 1 RunMAXX 3.0 Treadmill...
- Page 2 This publication may not be reproduced, stored in a retrieval system, or transmitted in whole or in part, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without the prior written permission of Maxxus Group GmbH & Co. KG.
- Page 3 Safety Instructions Before you start exercising, be sure to read the entire operating manual, especially the Safety Information, the Maintenance and Clean- ing Information and the Training Information. Also make sure that anyone else who uses this training device is familiar with this informa- tion and observes it.
- Page 4 Overall View of the Device Shelf Cockpit Hand Rail Hand Pulse Sensors & Hand Rail Control Side Frame Motor Housing Treadmill Deck Running Deck Assembly Materials Hexagon Socket Screw Hexagon Socket Screw Locking Pin Allen Key M8x35 M8x12 1 Piece 1 x 5mm 2 Pieces 2 Pieces...
- Page 5 Assembly Carefully unpack all delivered parts. Have someone there to help you as some of the training device parts are bulky and heavy. Check that all the parts and xing materials (screws, nuts, etc.) have been delivered. Assemble the parts carefully as any damages or defects occurring due to mistakes made at the time of assem- bly are not covered by the warranty or guarantee.
- Page 6 Assembly Step 3: Assembly of the Cockpit Frame Raise the cockpit upwards and insert the locking pin into the let opening on the joint between the cockpit and the cockpit rame. Now tighten the hexagon socket screws to be ound on the let and right sides o this joint. Tighten this hexagon socket screw Tighten this hexagon...
- Page 7 Mains Connection Mains Cable Connect the power cable to an electrical socket. The device may only be plugged-in to grounded socket which has been installed by a professional electrician. Do not use multiple sockets to connect the treadmill. If you need to use an extension cable, it must comply with the VDE or equivalent guidelines.
- Page 8 Folding Mechanism Hydraulic Cylinder The olding mechanism relies on a hydraulic cylinder. This is lled with oil and is under high pressure. If the cylinder is damaged, the safe folding of the treadmill deck is no longer guaranteed. It must therefore be replaced without fail before the treadmill deck is raised again.
