Summary of Contents for Maxxus RunMAXX 9.1

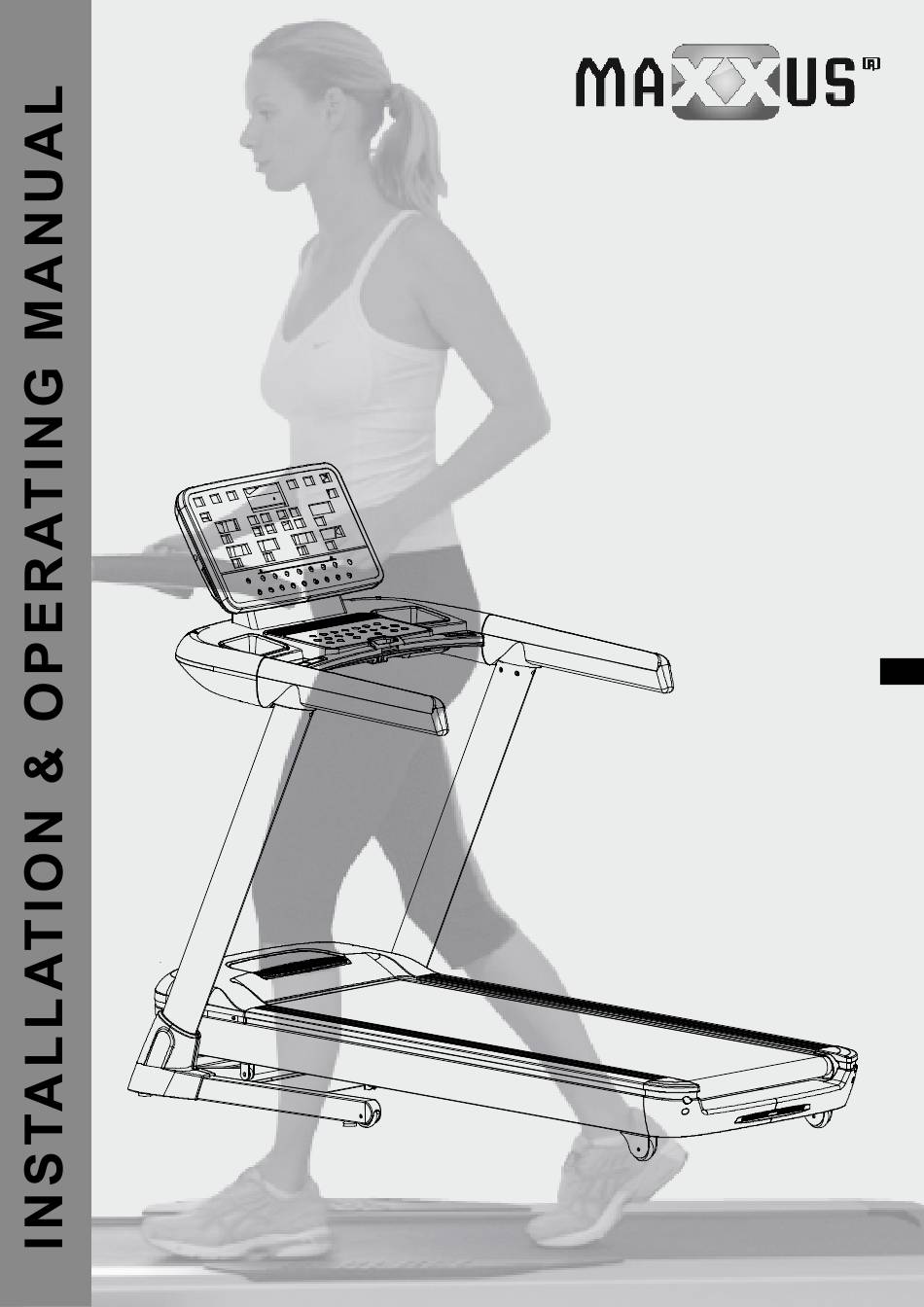

- Page 1 RunMAXX 9.1 Treadmill...
-
Page 2: Table Of Contents
This publication may not be reproduced, stored in a retrieval system, or transmitted in whole or in part, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without the prior written permission of Maxxus Group GmbH & Co. KG. -
Page 3: Safety Instructions
Safety Instructions Before you start exercising, be sure to read the entire user guide, especially the safety information, the maintenance & cleaning infor- mation and the training information. Take care too that everyone who uses this training device is also familiar with this information and observes it. -
Page 4: Assembly Material & Tools
Overall View of the Device Cockpit Shelf Handrail Hand Pulse Sensors & Handrail Control Side Frame Motor Housing Treadmill Deck Running Deck Assembly Materials & Tools Hexagon Socket Screw Hexagon Socket Screw M8x30 Tapping Screw Hexagon Socket Screw M8x15 2 Pieces ST4x16 M8x60 8 Pieces... -
Page 5: Assembly
Assembly Carefully unpack all delivered parts. Have someone there to help you as some of the training device parts are bulky and heavy. Check that all the parts and fixing materials (screws, nuts, etc.) have been delivered. Assemble the parts carefully as any damages or defects occurring due to mistakes made at the time of assem- bly are not covered by the warranty or guarantee. - Page 6 Assembly Step 3: Assembly of the Cockpit Ideally, you will need 2 people for this step. Connect the plug on the cable protruding from the cockpit to the appropriate plug on the cable protruding out of the cockpit frame. In this case, a confusion is not possible because the plug connectors are easy to identify. Now insert the cockpit from above into the corresponding mounts of the cockpit frame and slide the cockpit as down until the four boreholes are aligned with the boreholes on the cockpit mounts.
-
Page 7: Assembly
Assembly Step 5: Assembly of the Side-Frame Covers Fold up the running deck on the base frame – see here also the section “Folding Up the Running Deck” in this manual. Now place the right and left side covers onto the left side-frame and fix them with a tapping screw 4x12. Repeat this procedure with the right side-frame Folding Mechanism Hydraulic Cylinder... -
Page 8: Folding Mechanism
Headline Step 3: Push up the deck until you hear it lock into the catch. Check that it is locked safely in the upright position by gently shaking the deck. Folding Down the Treadmill Deck Step 1: Take hold of the rear end of the deck with both hands. Press down the safety lever on the catch with your foot to release the lock. -
Page 9: Mains Cable
Mains Cable Mains Cable Connect the power cable coupling to the corresponding plug on the Treadmill. Then connect the power cable to an electrical socket. The device may only be plugged in to grounded sockets which Mains Cable have been installed by a professional electrician. Do not use Main Switch Connection multiple sockets to connect the treadmill. -
Page 10: Safety Key
Safety Key Safety Key The treadmill will only operate if the safety key is correctly in contact with contact point in the cockpit. The treadmill will stop automatically if the safety key is no longer in contact. Before each training session make sure to attach the safety key to your clothing with the clip. If you either want to stop the treadmill quickly, cannot keep up with the speed, or any other emergency arises, pull the string to remove the safety key out of the cockpit or press down the EMERGENCY button (see Figure 1). -
Page 11: Care, Cleaning & Maintenance
Care, Cleaning & Maintenance WARNING Before you perform any care, cleaning, maintenance, repair or similar work on your training device, turn off your exerciser and remove the power cord. Check before starting the planned work that your exerciser is completely disconnected and switched off. -
Page 12: Lubricating The Treadmill Belt
To achieve optimum lubrication of the belt use the MAXXUS maintenance oil bottle, remove the normal screw bottle top (Di- agram 1) and screw on the thin tube top (Diagram 2). Before lubricating the belt, make sure that the treadmill is switched-off and that the belt is no longer moving. -
Page 13: Adjusting The Treadmill Belt
Adjusting the Treadmill Belt The treadmill belt must always be switched off with the mains cable plug removed from the socket before starting any maintenance, cleaning, repairs or any other works! To achieve as long a service life as possible, the belt should always be kept running straight along the centre of the deck. -
Page 14: Cockpit
Cockpit Display LCD Profile Matrix Pulse/ Incline Heart Rate Distance/Steps Speed Time Calories The display of the display informs you about the following training values: INCLINE Incline DISTANCE Training distance in km alternating with STEP which is the number of steps. SPEED Speed in km/h TIME... - Page 15 Cockpit INSTANT INCLINE KEYS The treadmill cockpit has 4 quick selection keys for inclination With these direct selection keys, you can quickly and easily select certain pre-set incline levels. These cannot be changed by the user. INSTANT SPEED KEYS The treadmill cockpit has 4 quick selection keys for speed. With these direct selection keys, you can quickly and easily select certain pre-set speed levels.
- Page 16 Cockpit Switching on the Treadmill Connect the mains plug on the power cable to a grounded, 16 A socket which has an individual fuse and been installed by a professional electrician. Now switch on the treadmill with the on / off button (located on the back of the motor housing) Switching off the Treadmill Press the On/Off key again to switch off the treadmill.
- Page 17 Cockpit Training Profile P1 – P36 Training with Pre-Set Training Profiles Step 1: Selecting a Profile: Switch on the treadmill. Select the required training profile from P1 to P36. Step 2: Time Input In the “TIME” display window the value 30:00 will be flashing. Enter the training time from 05:00 to 99:00 min- utes in 1-minute increments.
- Page 18 Cockpit km/h Incline km/h 12.0 12.0 12.0 12.0 12.0 12.0 12.0 12.0 Incline km/h 13.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0 Incline km/h 11.0 11.0 11.0 11.0 Incline km/h 11.0 11.0 11.0 11.0 11.0 Incline km/h 11.0 11.0 11.0 11.0 Incline km/h...
- Page 19 Cockpit Free Memory Slots User U01, U02, and U03 There are three free memory spaces available in which the user can create their own training profiles. Programming Step 1: Program Selection. After switching on the treadmill select the required program U01, U02 or U03. The appropriate program will appear in the display and the value of “30:00”...
-
Page 20: Cockpit
Cockpit It is necessary to make this selection so to avoid unintended over exertion of the user. Please select the pro- gram with the appropriate maximum speed for you which will not be exceeded by the computer during training. Step 2: Age Input The value of 25 will be flashing in the display. -
Page 21: Heart Rate Monitoring
Heart Rate Monitoring 100% of maximum heart rate of maximum heart rate of maximum heart rate of maximum heart rate Calculating your personal heart rate when training Calculate your personal heart rate when training as follows: 220 - Age = maximum heart rate This value represents your maximum heart rate and serves as a basis from which to calculate your personal training heart rate. -
Page 22: Pulse Rate Monitoring Using Hand Sensors
Heart Rate Monitoring using a Chest Belt A large number of MAXXUS® training devices are fitted with a wireless receiver as standard. The use of a chest belt (we recommend the exclusive use of an uncoded POLAR® chest belt) allows you to wirelessly measure heart rate. -
Page 23: Training Recommendations
Training Recommendations Preparation Before Training Before you start training make sure that not only your training device is in perfect condition, your body must also be prepared for training. Therefore, if you have not done any endurance training for some time, you should con- sult your GP and undergo a fitness check-up. -
Page 24: Training Recommendations
Training Recommendations Hydration Adequate hydration is essential before and during exercise. During a training session of 30 minutes it is possible to lose up to 1 litre of liquid. To compensate for this fluid loss apple spritzer mixed in the ratio of one-third apple juice to two-thirds mineral water is ideal since it contains electrolytes and minerals to replace those that the body loses through sweat. -
Page 25: Technical Details
Recommended accessories These accessories are the perfect supplement for your training device. All products are available in our online shop at www.maxxus.de or directly in our showroom in Gross-Ger- POLAR® Transmitter Chest Belt T34 (uncoded) Chest strap for determining the heart rate with optimized transmission ranges. Required accessory for the application of pulse-controlled programs and for continuous determina- tion of the current heart rate. -
Page 26: Exploded Drawing
Exploded Drawing... -
Page 27: Parts List
Parts List Description Description Base frame Running belt Platform frame Motor belt Incline frame Side rail Upright post (L) Console upper cover Upright post (R) Console lower cover Console frame Panel Display frame Handle bar Motor installation panel Base cover (L) -1 Outer telescopic tube Base cover (L)-2 Pedal... -
Page 28: Warranty
The warranty period for your training device starts on the date of purchase and applies solely to products which were purchased direct- ly from the MAXXUS Group GmbH & Co KG or one of the MAXXUS Group GmbH & Co KG direct and authorised distribution partners. - Page 29 I accept the General Terms and Conditions of MAXXUS® Group GmbH & Co. KG. I hereby instruct the company MAXXUS® Group GmbH & Co. KG to repair the above defects. In Warranty cases I will not be charged for the cost. The costs for repairs which are excluded from liability for defects in quality will be charged to me and must be settled immediately.
- Page 30 Maxxus Group GmbH & Co. KG Zeppelinstr. 2 D-64331 Weiterstadt Germany E-Mail: info@maxxus.de www.maxxus.de...
