Assembly

Carefully unpack all delivered parts. Have someone there to help you as some of the training device parts are
bulky and heavy.
Check that all the parts and fixing materials (screws, nuts, etc.) have been delivered.
Assemble the parts carefully as any damages or defects occurring due to mistakes made at the time of assembly
are not covered by the warranty or guarantee. Therefore, read through the assembly instructions carefully before
you start assembling, follow each assembly step exactly as described and keep to the correct sequence of
assembly as instructed.
Assembly of the training device must be carried out thoroughly by adults only.
Assemble the training device in a location which is level, clean and clear of obstructions. 2 people are required to
carry out the assembly.
Training can only start when the training device has been fully assembled.

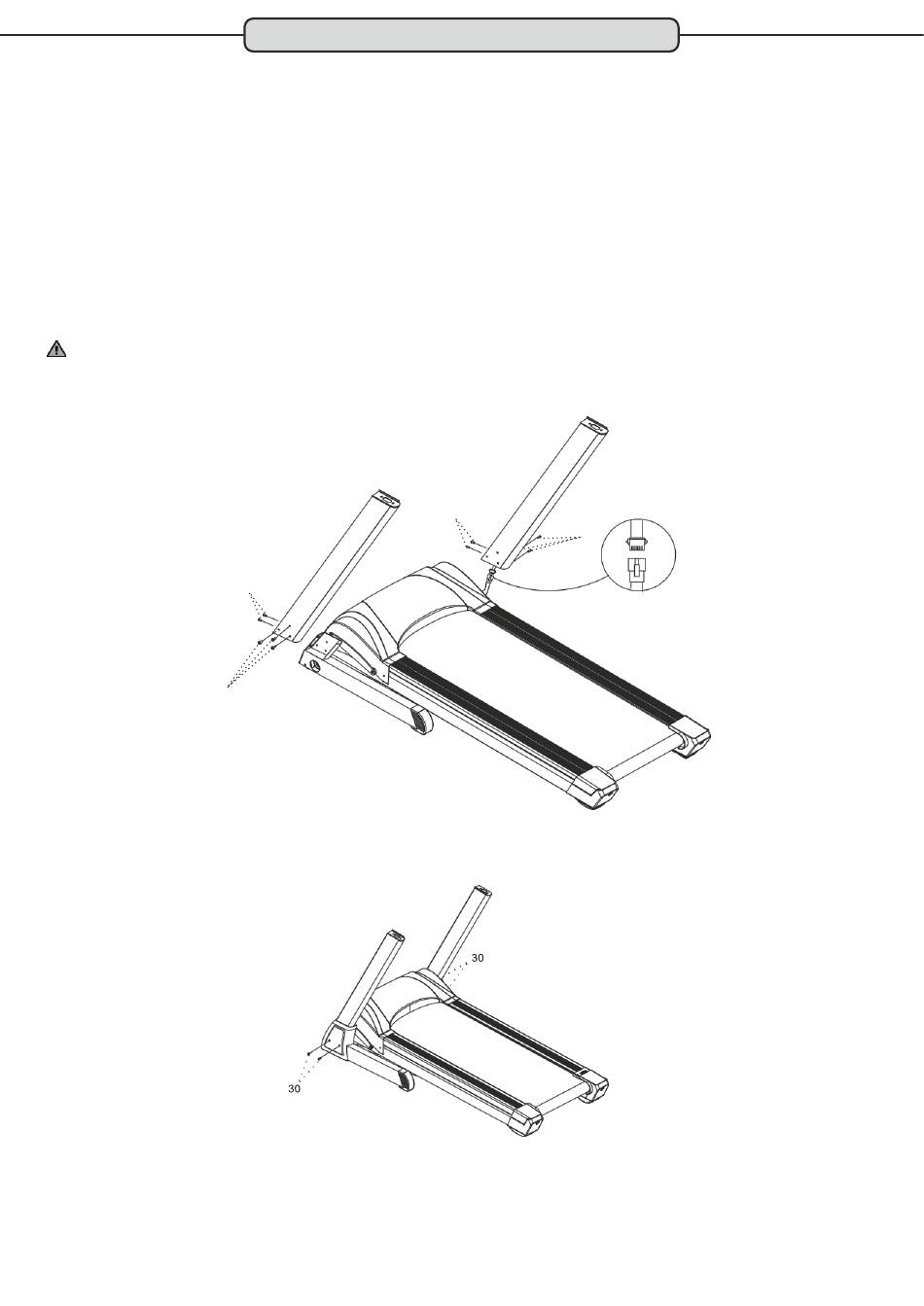

Step 1:
Connect the cable that protrudes down from the right-side frame with the cable that comes out of the base frame.
Insert the right-side frame into the base frame and secure it laterally with two hexagon socket screws M8x55 (17) and
from the front with two domed head hexagon socket screws M8x15 (94).
CAUTION: .
Make sure that the cable does not get damaged or jammed
Insert the left side frame into the base frame and secure it laterally with two hexagon socket screws M8x55 (17) and
from the front with two domed head hexagon socket screws M8x15 (94).
94
17
94
17
Step 2:
Fix the covers on the left- and right-hand sides of the running belt using two hexagonal head screws
M4x20 (30) on each side.
5
