Assembly

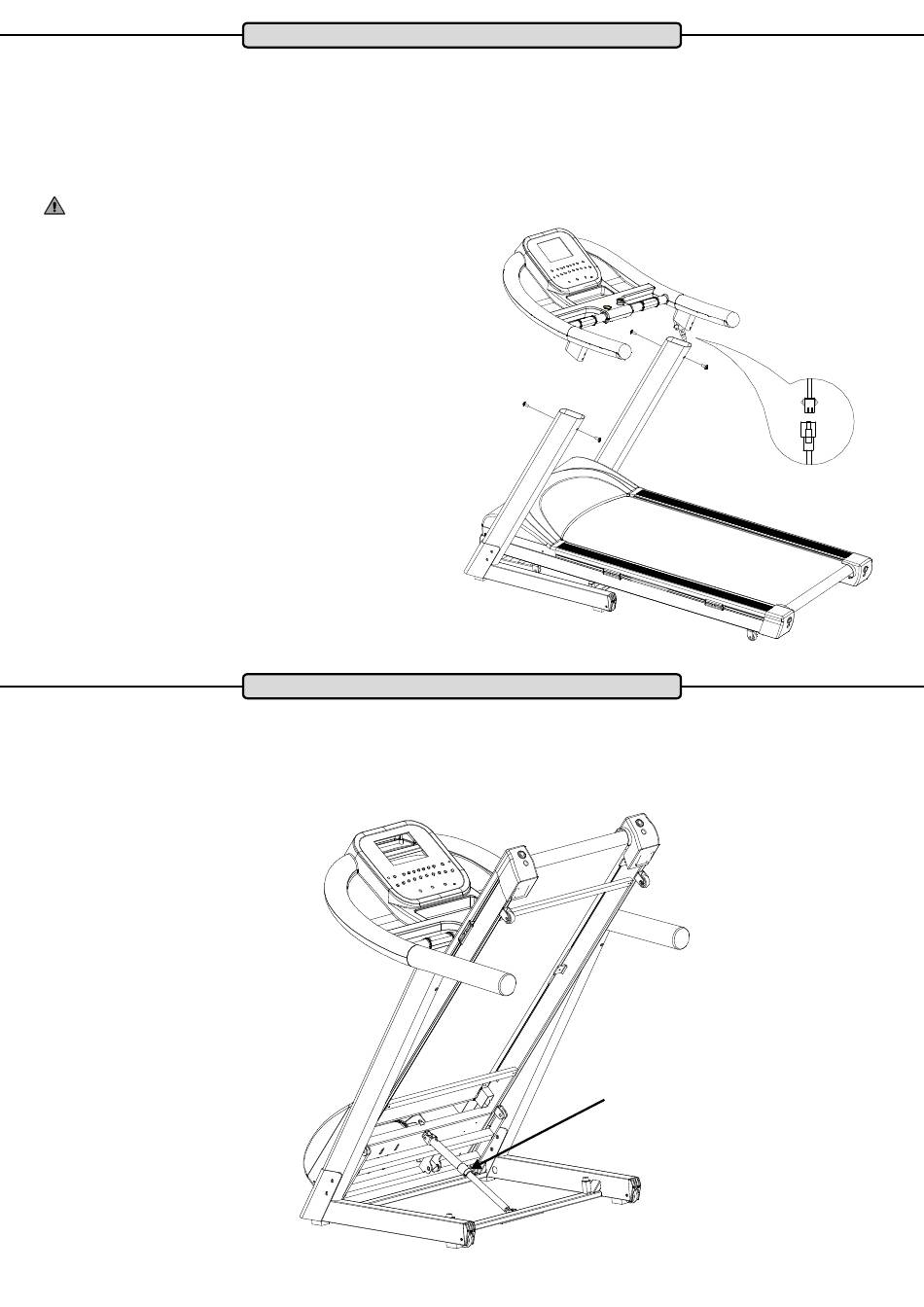

Step 2:
Ideally, you will need two people for this step.
As person A holds the cockpit, person B joins the cable where it protrudes up out of the right Side frame, with the cable that
protrudes from the right side of the cockpit frame.
Now carefully insert the cockpit into the two side frames and attach it to both side frames with two hexagon socket screws
M8x20.
WARNING:
Be sure that you do not squeeze or damage the cables.
Hexagon socket screw, M8x20
Folding mechanism
The basis of the folding mechanism is the hydraulic cylinder. This is filled with oil under high pressure. If the cylinder is
damaged, it is not safe to raise or lower the tread under any circumstances. In this case, be sure to replace the hydraulic
cylinder before you fold the tread again.
Hydraulic cylinder
