Design and function
Welding torch (operating variants)
5.8.3

Up/down speed

Functionality
Press and hold the up push-button:
Increase current up to the maximum value (main current) set in the power source.
Press and hold the down push-button:
Decrease current to the minimum value.
Use the machine configuration menu > see 5.13 chapter to set the up/down speed parameter
determines the speed with which a current change becomes effective.
5.8.4

Current jump

By tapping the corresponding torch trigger the welding current can be determined in an adjustable jump
range. Each tap will cause the welding current to jump up or down by the defined value.
The "current jump" parameter
5.8.5

Standard TIG torch (5-pole)

Standard torch with one torch trigger

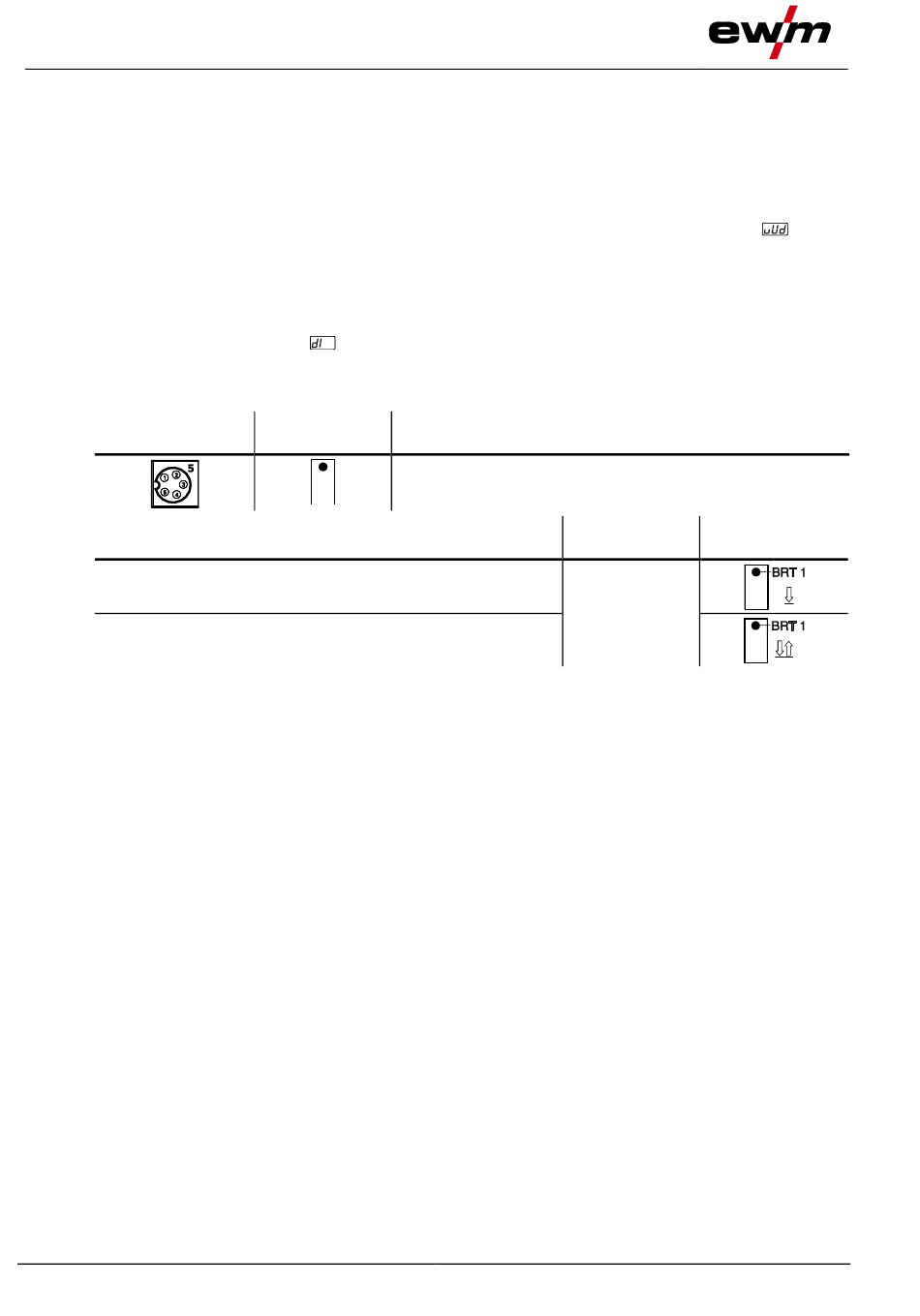

Figure
Functions
Welding current on/off
Secondary current (latched operation)
80
is set in the machine configuration menu > see 5.13 chapter.
Operating ele- Explanation of symbols
ments
BRT1 = torch trigger 1 (welding current on/off; secondary cur-
rent via tapping function)
Mode Operating ele-
ments
1
(ex works)
099-000109-EW501
which
