Design and function
MMA welding
Item Symbol
1
2
3
4
5
Polarity depends on the instructions from the electrode manufacturer given on the electrode packaging.
Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
Fit yellow protective cap onto G¼" connecting nipple.
64
Description
0
Workpiece
Connection socket, "+" welding current
Connection for workpiece lead
Electrode holder
Connection socket, "-" welding current
Electrode holder connection
G¼" connecting nipple
Shielding gas connection (with yellow insulating cap) for TIG welding torch

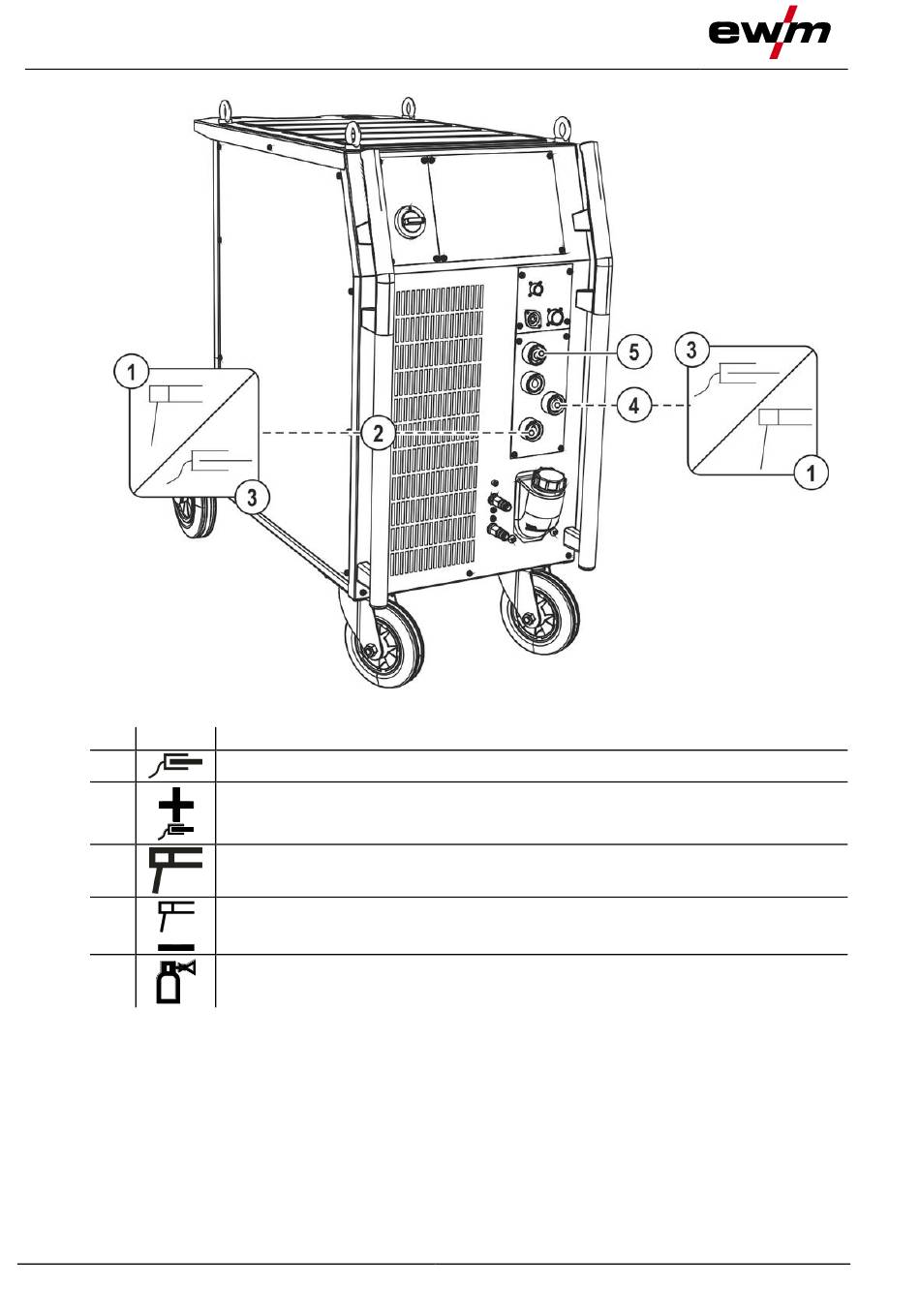

Figure 5-47
099-000109-EW501
23.08.2018
