5.3.16.2 Synchronisation via cable (frequency 50Hz to 200Hz)

This application describes synchronisation (master/slave operation) with two machines in the
Tetrix series. The following components are required:
•
The synchronisation interface SYNINT X10
•
Control lead (connecting cable) of the relevant length
•
Both welding machines must be fitted with the 19-pole TIG interface for mechanised welding
(optional)
•
Connect the SYNINT X10 synchronisation interface connector plug to the 19-pole TIG interface for
mechanised welding on the rear of a welding machine from the TETRIX series (master).
The machine connected to the synchronisation interface using the short connection cable is
designated the "master" welding machine. The TIG AC frequencies are set on this welding
machine and transferred to the second welding machine (slave).
•
Connect the extension cable RA (5 m, 10 m or 20 m) between the interface and the 19-pole TIG inter-
face for mechanised welding on the second welding machine.
099-000109-EW501
23.08.2018
Design and function

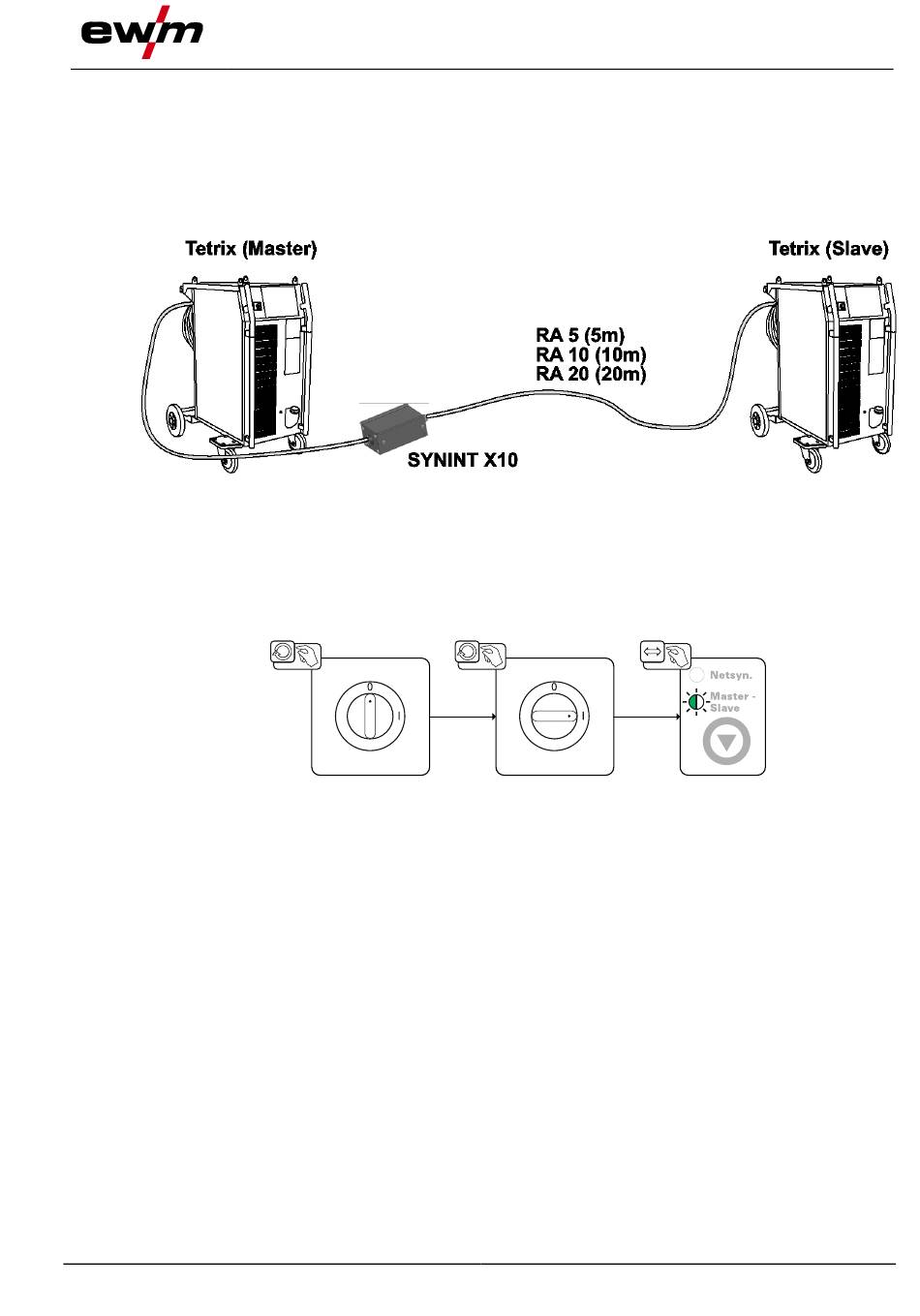

Figure 5-45
