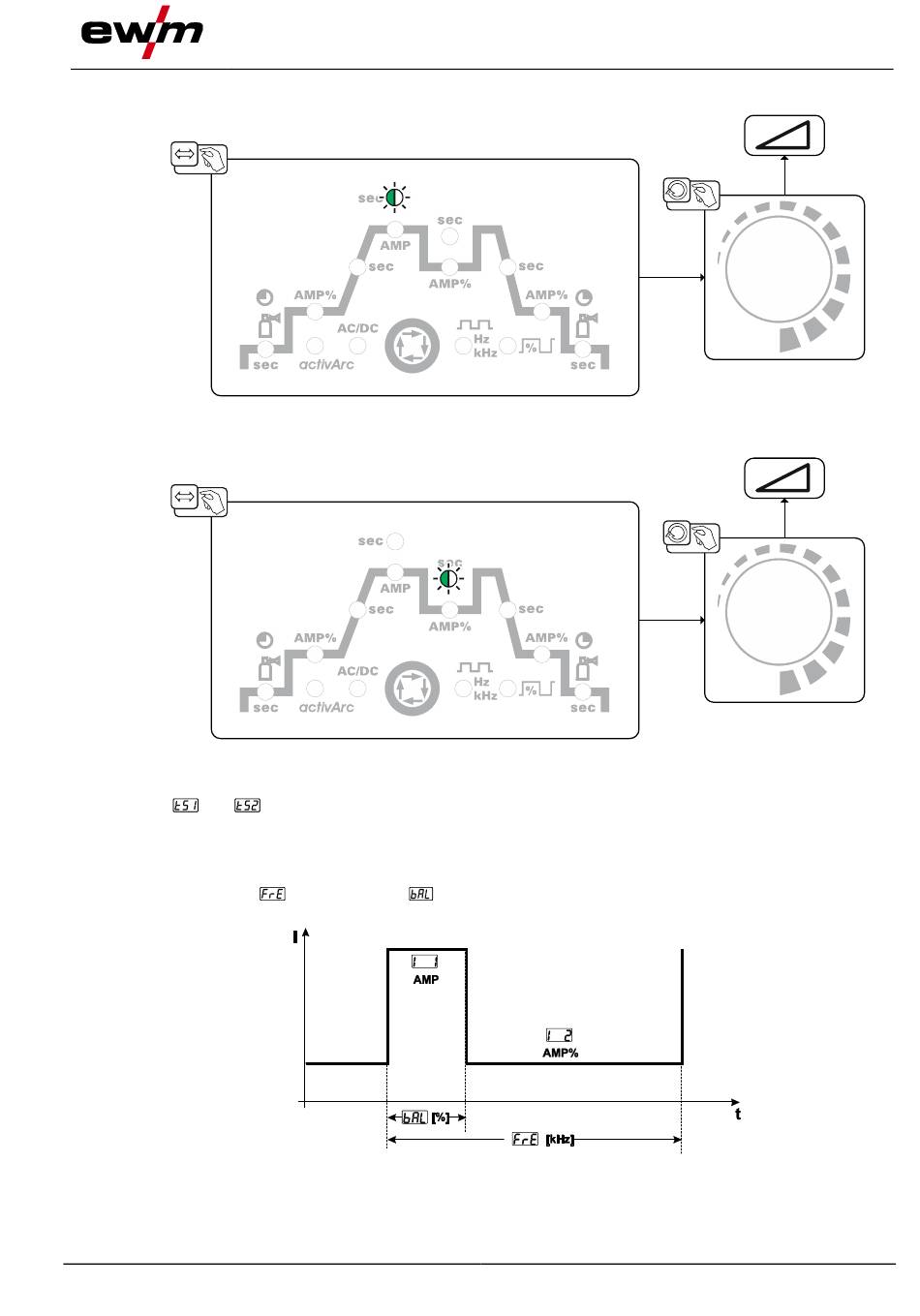

Pulse time setting
Pulse pause setting
Pulse edge setting
The and

5.3.13.3 Metallurgical pulsing (kHz pulsing)

Metallurgical pulsing (kHz pulsing) uses the plasma force (arc force) occurring at high currents which al-
lows you to achieve a constricted arc with concentrated heat input. Unlike thermal pulsing, no times are
set; a frequency
slope and down-slope phase.
099-000109-EW501
23.08.2018
pulse edges can be set in the Expert menu (TIG) > see 5.3.17 chapter.
and the balance are set instead. The pulsing process also occurs during the up-
Design and function
Figure 5-35
Figure 5-36
Figure 5-37
TIG welding
