Design and function

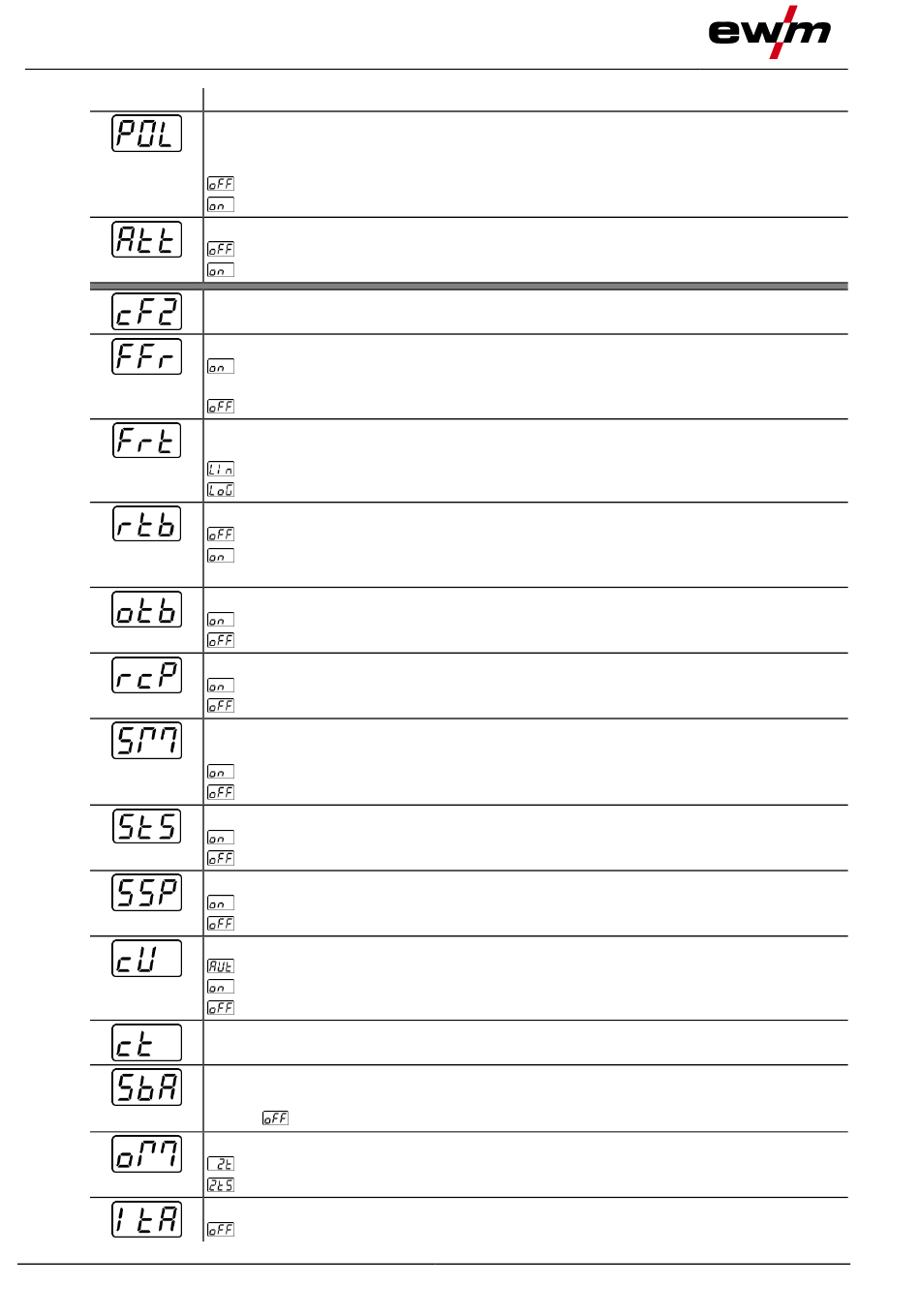

Machine configuration menu
Display
94
Setting/selection
Program 0 block
With machines with access block, program 0 can be disabled. When the access block
has been enabled, programs 1–x only can be switched.
------- All programs can be selected (ex works)
------- Programs 1–x can be selected (program 0 disabled)
Show warnings > see 7.2 chapter
------- Function disabled (ex works)
------- Function enabled
Machine configuration (second part)
Settings for machine functions and parameter display
RTF start ramp > see 5.7.8.1 chapter
------- Welding current rises to the specified main current level in a ramp function (ex
works)
------- Welding current immediately jumps to the specified main current level
RTF response<dg_ref_source_inline>Ansprechverhalten Fußfernstel-
ler</dg_ref_source_inline>
------- Linear response
------- Logarithmic responsive (ex works)
Tungsten balling with RT AC remote control
------- Function disabled
------- Function enabled (in addition, the "AC balance" rotary knob at the RT AC remo-
te control has to be turned to the left stop) (ex works)
Tungsten balling (old variant)
------- Function enabled
------- Function disabled (ex works)
Welding current polarity switching
------- polarity switching at the RT PWS 1 19POL remote control (ex works)
------- polarity switching at the welding machine control
spotmatic operating mode > see 5.3.11.5 chapter
Ignition by contact with the workpiece
------- Function enabled (ex works)
------- Function disabled
Spot time setting <dg_ref_source_inline>spotmatic</dg_ref_source_inline>
------- Short spot time, setting range 5 ms to 999 ms, increments of 1 ms (ex works)
------- Long spot time, setting range 0.01 s to 20.0 s, increments of 10 ms (ex works)
Process activation setting > see 5.3.11.5 chapter
------- Separate process activation (ex works)
------- Permanent process activation
Torch cooling mode
------- Automatic operation (ex works)
------- Permanently enabled
------- Permanently disabled
Welding torch cooling, post-flow time
Setting 1–60 min. (ex works 5 min.)
Time-based power-saving mode > see 5.11 chapter
Time to activation of the power-saving mode in case of inactivity.
=
Setting disabled or numerical value 5– 60 min. (ex works: 20).
Operating mode switching via interface for automated welding
------ Non-latched
------- Special non-latched
Re-ignition after arc interruption > see 5.3.10.3 chapter
------- Function disabled or numerical value 0.1 s–5.0 s (ex works: 3 s).
