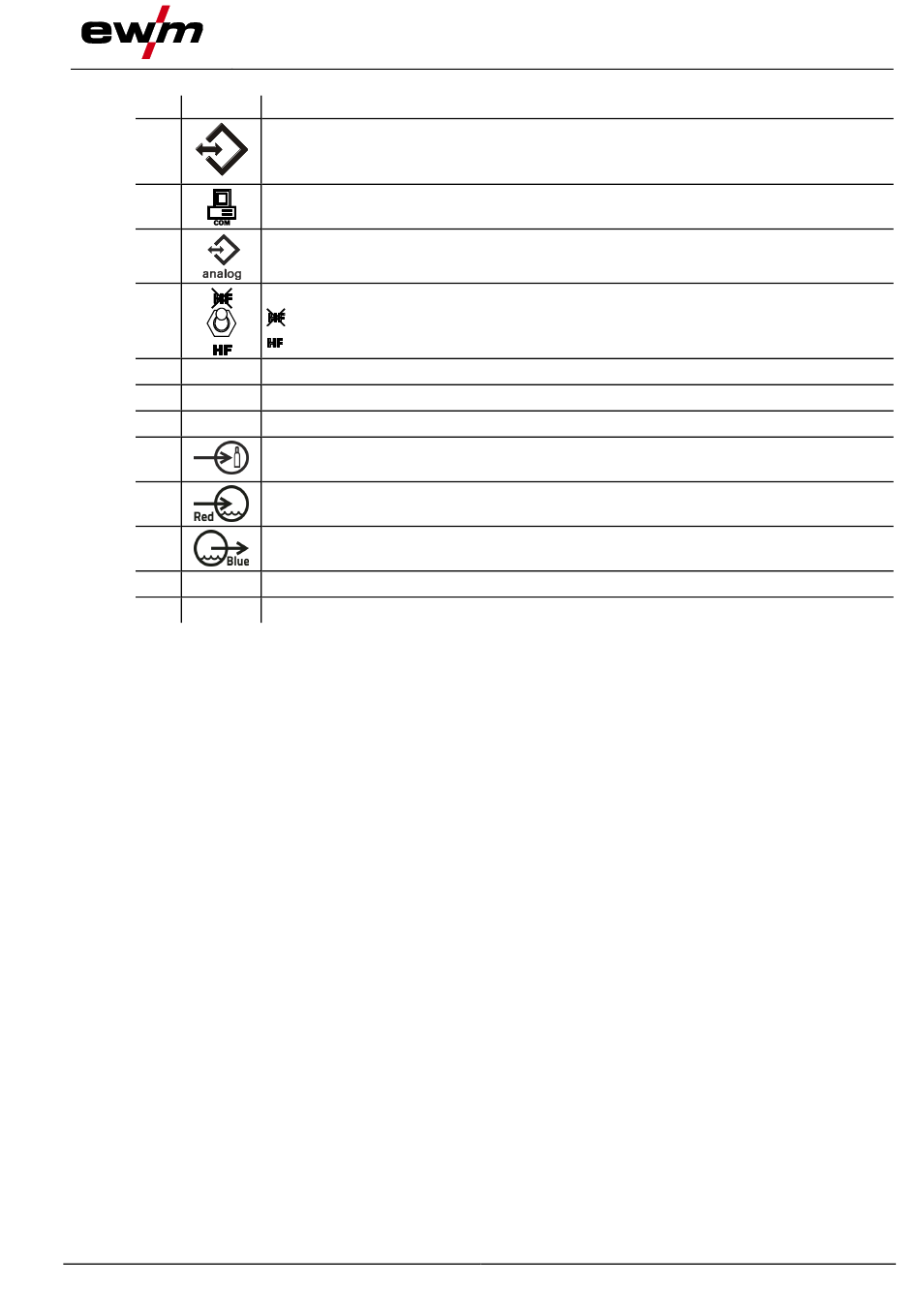

Machine description – quick overview
Description 0
Connection socket, 7-pole (digital)
To connect digital accessories
Retrofitting option > see 9 chapter
PC interface, serial (D-Sub connection socket, 9-pole)
Automation interface 19-pin (analogue)
Option for retrofitting > see 5.9.1 chapter
Ignition type changeover switch > see 5.3.10 chapter
= ------ Liftarc (contact ignition)
= ------ HF ignition
Securing elements for shielding gas cylinder (strap/chain)
Mains connection cable > see 5.1.8 chapter
Cooling air outlet
Shielding gas connection (inlet)
Connecting nipple, G¼"
Quick connect coupling (red)
Coolant return from welding torch
Quick connect coupling (blue)
Coolant forward flow to the welding torch
Bracket for shielding gas cylinder
Wheels, fixed castors
