Top Panel (Leds) - Teldat Connect-4GE Manual

3 Components and Power Supply

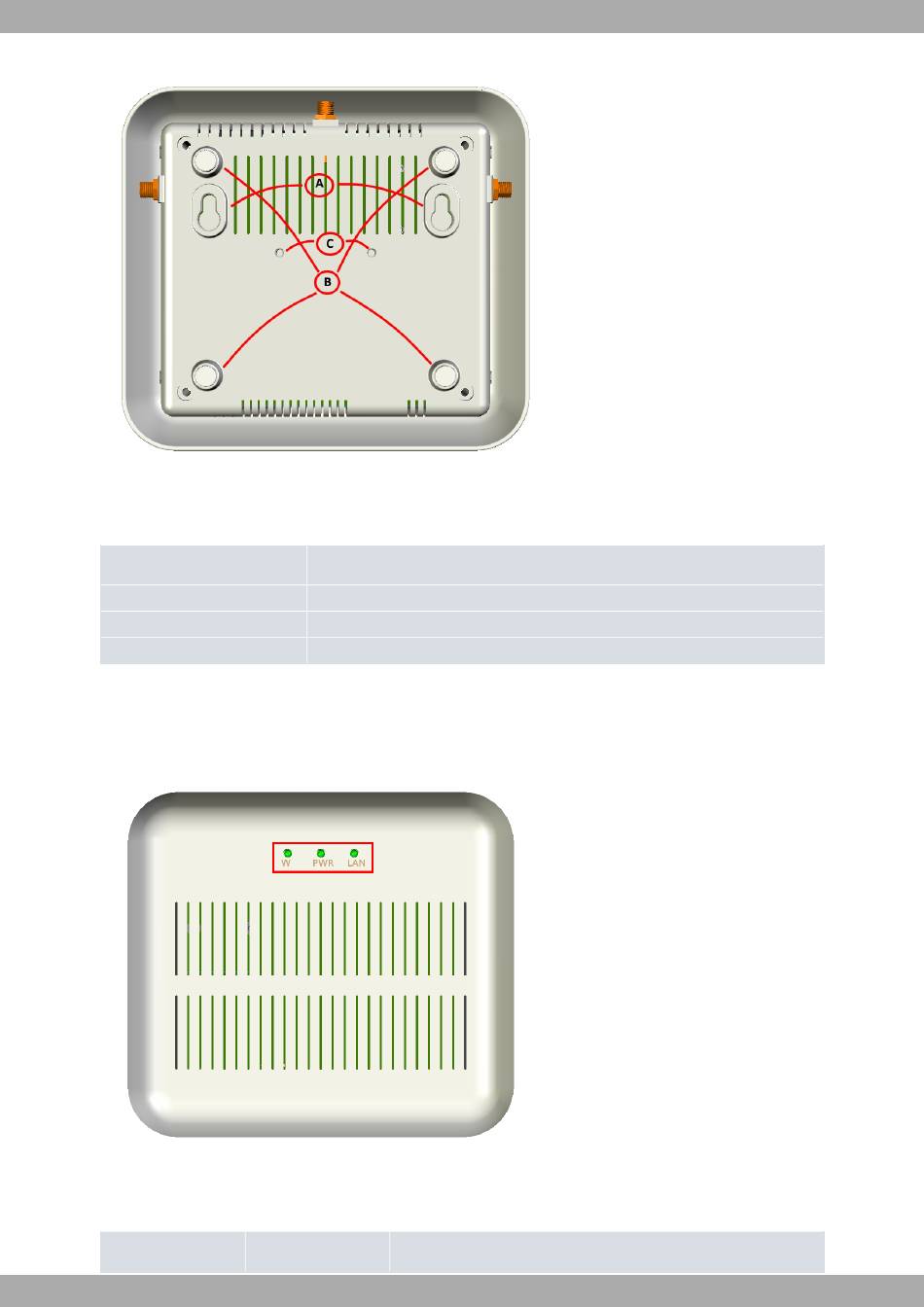

Fig. 5: Underside panel
The following table contains details on the significant elements on the underside panel.
underside PANEL ELEMENTS TABLE
Item
A
B
C

3.1.5 Top Panel (LEDs)

The LED panel provides information on the state of the components (whether they are active or not) and on network
activity.
Fig. 6: LED Panel
The Teldat Connect-4GE LEDs are shown in Figure 6. The following table contains a description:
LEDs table
LED
6
Description
Slots for wall mount.
Rubber feet.
Perforations to install a DIN rail mount. (Optional.)
Status Description
Teldat S.A.
Teldat Connect-4GE Router
