6 Access and configuration
• BOOTmonitor mode.
• Normal mode.
After some self-tests have been successfully carried out in the start mode, your device reaches the BOOTmonitor
mode. The BOOTmonitor prompt is displayed if you are serially connected to your device.

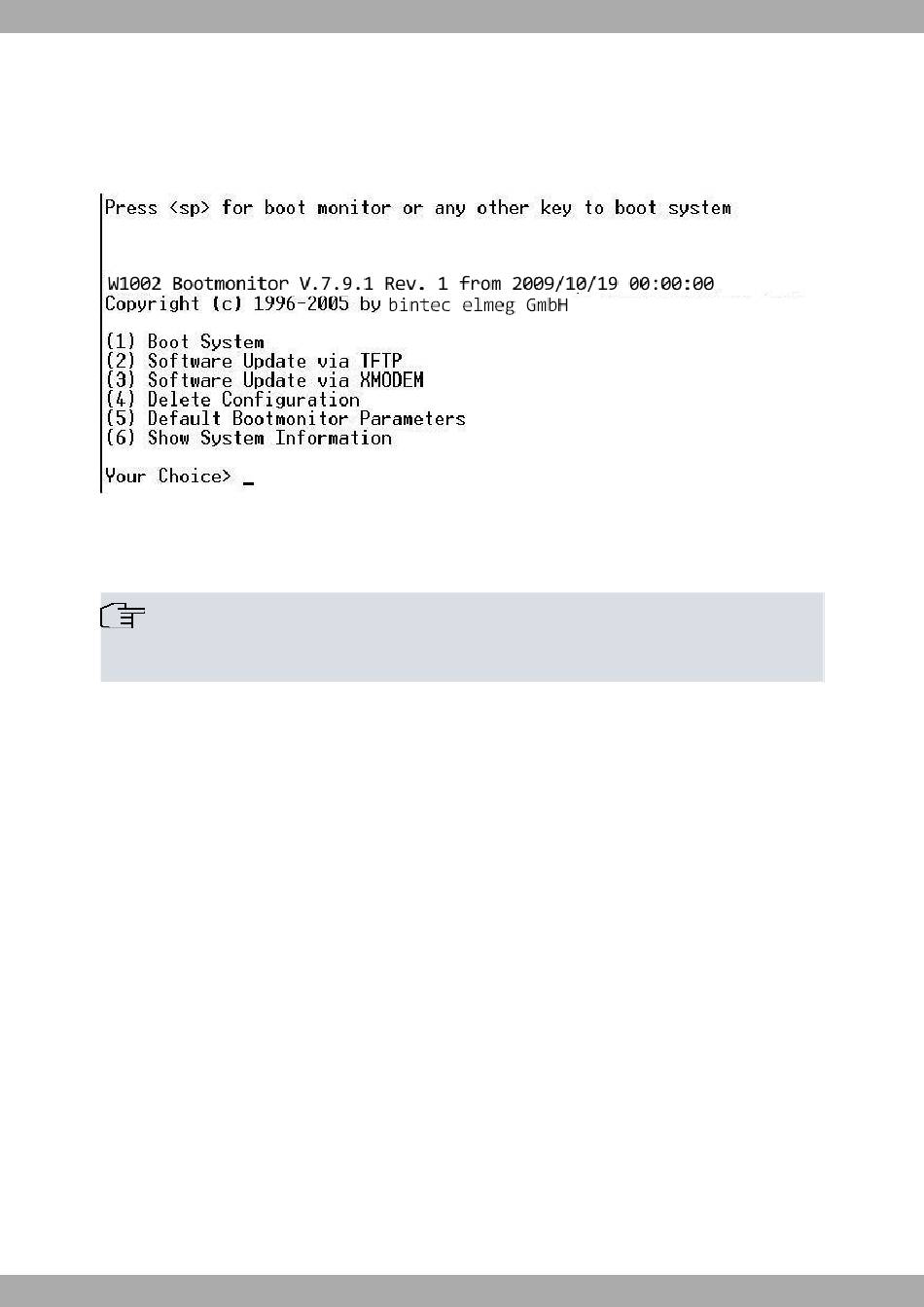

Fig. 20: BOOTmonitor
Once the BOOTmonitor prompt is displayed, press the space bar in less than four seconds to use the BOOTmonitor
functions. If you do not make said entry within four seconds, the device returns to normal operating mode.
Note
If you change the baud rate (the preset value is 9600 baud), make sure the terminal program used also
uses this baud rate. If this is not the case, you will not be able to establish a serial connection.
