3.1.5 Top Panel (LEDs)
The LED panel provides information on the status of the components (whether or not they are active) and on network
activity.

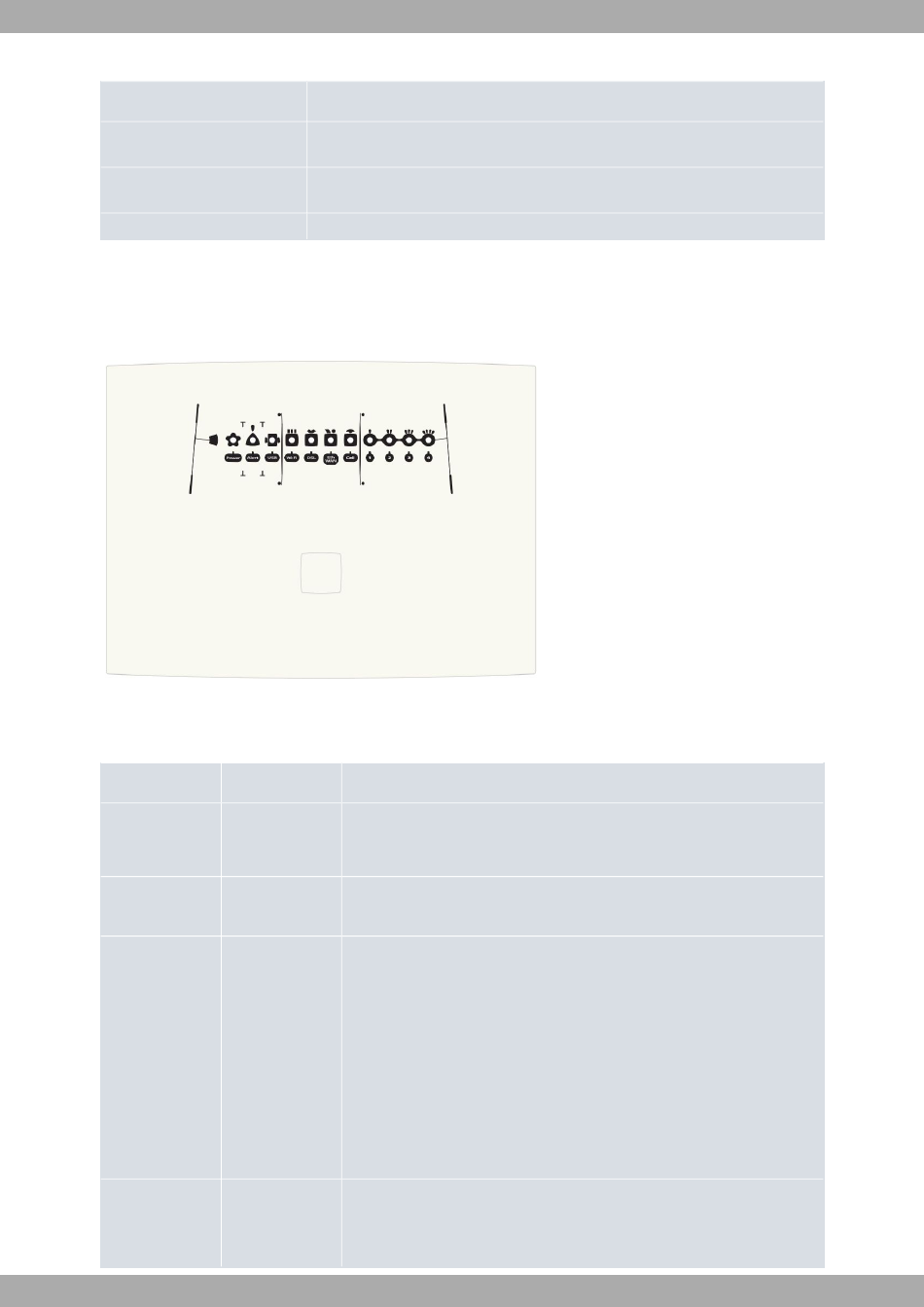

Fig. 6: LED panel
The Teldat Connect 104V LEDs are shown in the above figure. The below table contains a description of each one.
LED table
LED
Power
Alert
USB
Wi-Fi
6
Description
SIM tray for internal cellular WWAN. This is accessed from the underside of the
router.
Platform where the label that contains product information is placed. This label
contains information on the device model, mac, serial number, etc.
Slots for wall mounting.
State
Description
Monochrome
Off -> not receiving power from PSU.
Green
On -> receiving power from PSU.
Monochrome
On -> when software is running.
Green
Tricolor
Off -> system is powered off.
Red -> interface not available, not supported or auto-test failure.
Amber -> idle.
• Rapid blinking. It hasn't registered in the network or the quality is insuffi-
cient.
• Slow blinking. GSM connection (GPRS).
• Steady. WCDMA (UMTS/HSDPA) or LTE connection.
Green -> connected. Blinking: connection data activity.
Bicolor
Red -> interface down.
Green -> interface up.
