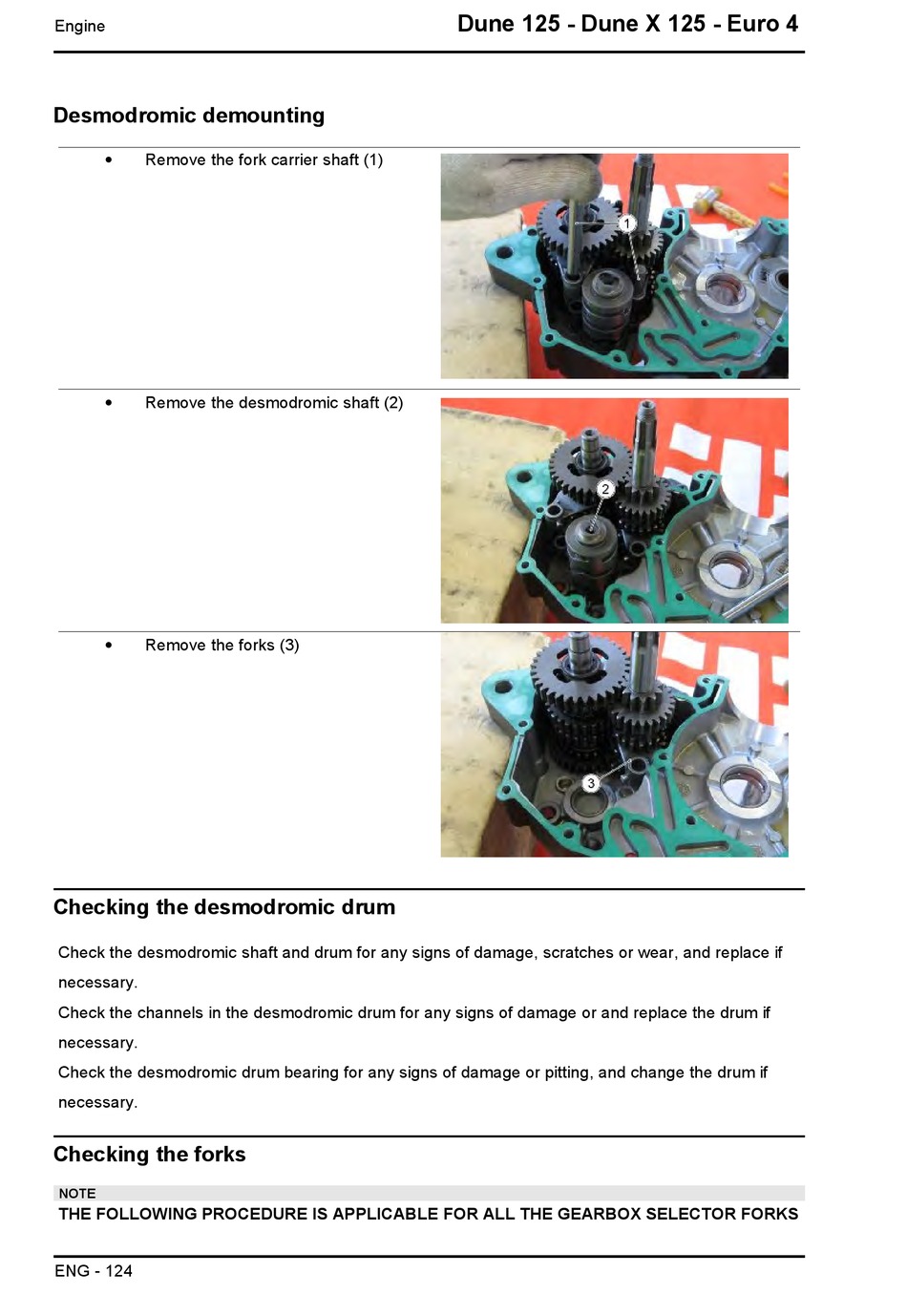

Desmodromic demounting


Remove the fork carrier shaft (1)

Remove the desmodromic shaft (2)

Remove the forks (3)

Checking the desmodromic drum

Check the desmodromic shaft and drum for any signs of damage, scratches or wear, and replace if
necessary.
Check the channels in the desmodromic drum for any signs of damage or and replace the drum if
necessary.
Check the desmodromic drum bearing for any signs of damage or pitting, and change the drum if
necessary.

Checking the forks

NOTE
THE FOLLOWING PROCEDURE IS APPLICABLE FOR ALL THE GEARBOX SELECTOR FORKS
