Removing The Primary Shaft; Removing The Secondary Shaft - Malaguti Dune X 125 Service Station Manual

Engine

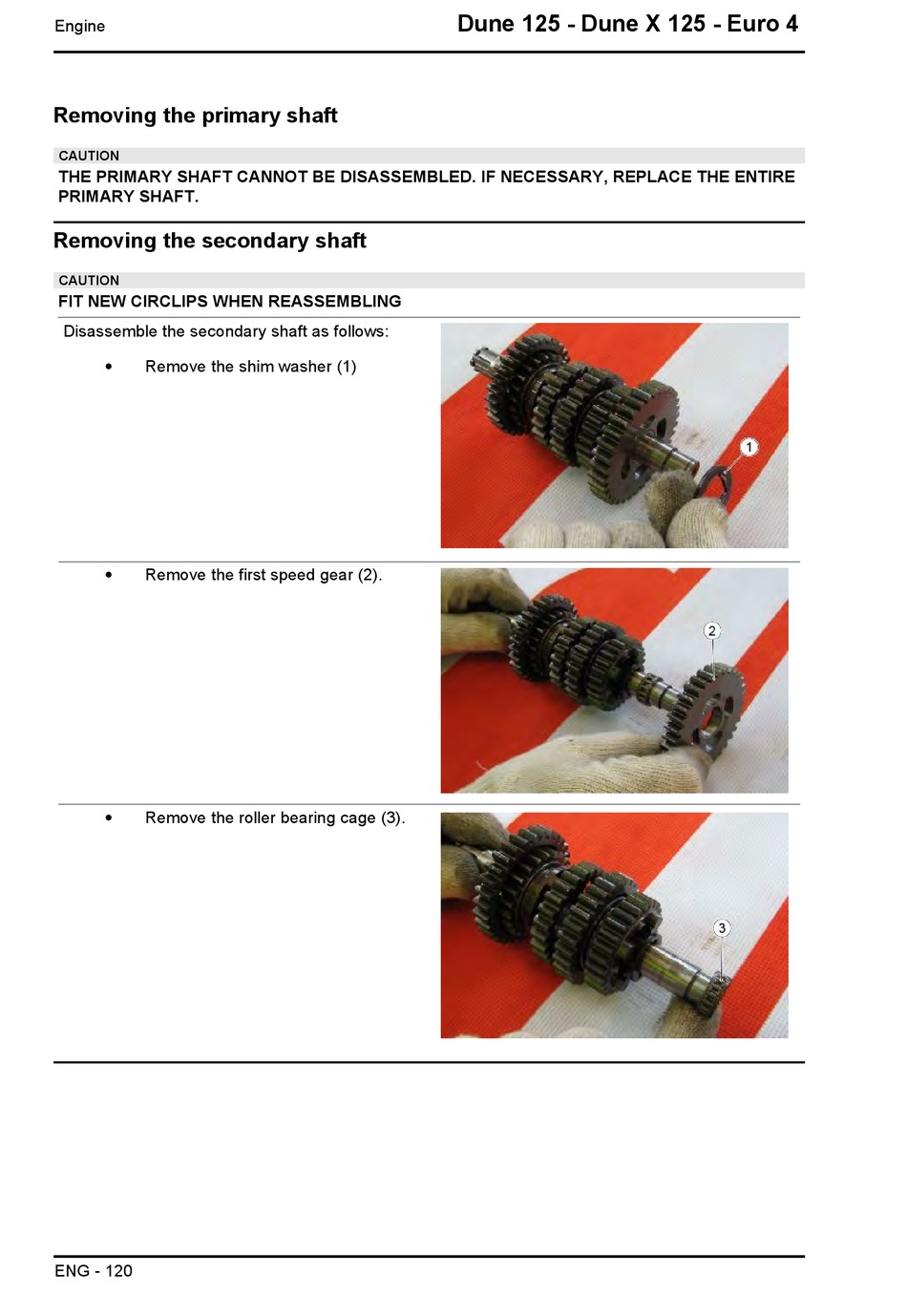

Removing the primary shaft

CAUTION
THE PRIMARY SHAFT CANNOT BE DISASSEMBLED. IF NECESSARY, REPLACE THE ENTIRE
PRIMARY SHAFT.

Removing the secondary shaft

CAUTION
FIT NEW CIRCLIPS WHEN REASSEMBLING
Disassemble the secondary shaft as follows:

Remove the shim washer (1)

Remove the first speed gear (2).

Remove the roller bearing cage (3).
ENG - 120
Dune 125 - Dune X 125 - Euro 4
