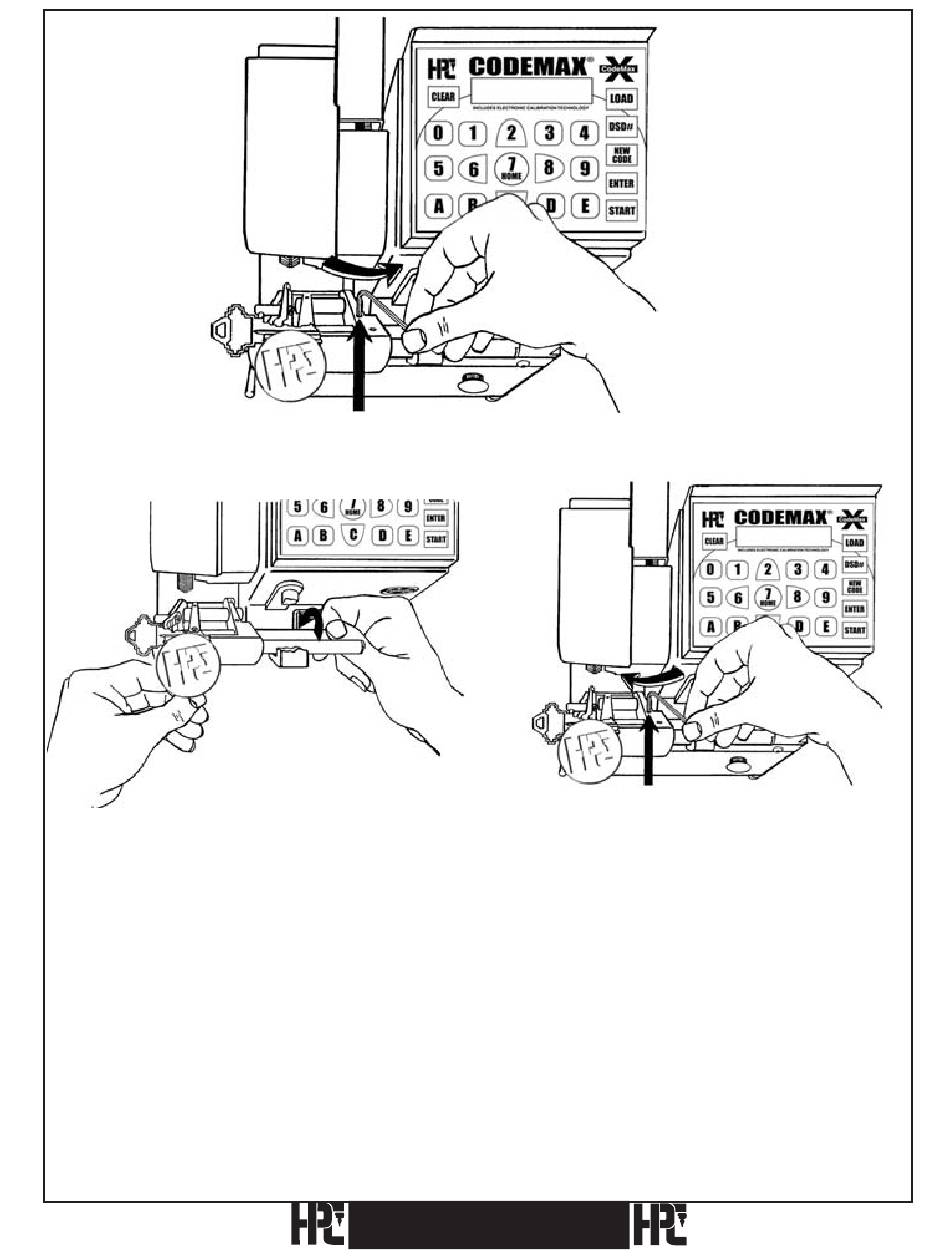

9) Loosen the set screw that holds the Turn Bar in place in the Pivot Arm. See Fig. 2.
Swinging the Shoulder Gauge should also rotate the Turn Bar.
Note: If the turn Bar does not rotate, squirt some WD-40, or equivalent, on the threaded end.
then work it loose by simultaneously swinging the Shoulder Gauge and rotating the turn Bar
(see Fig. 1).
0) Swing the key Shoulder Gauge down to release the Turn Bar. Then, firmly gripping
the right end of the Turn Bar so that it remains stationary, swing the key Shoulder
Gauge up against the key. The Shoulder Gauge should be just touching the shoulder of
the key. Now, without rotating the Turn Bar anymore, tighten the set screw that holds
the Turn Bar (see Fig. 2).
56
Fig. 1
Fig. 2
