2.2 Replacing Cutter Wheels
The following procedure is recommended when changing cutters:
IMportaNt Note: Be sure the cutter is installed for a clockwise rotation, with the arrow
facing the outside, so it can be seen.

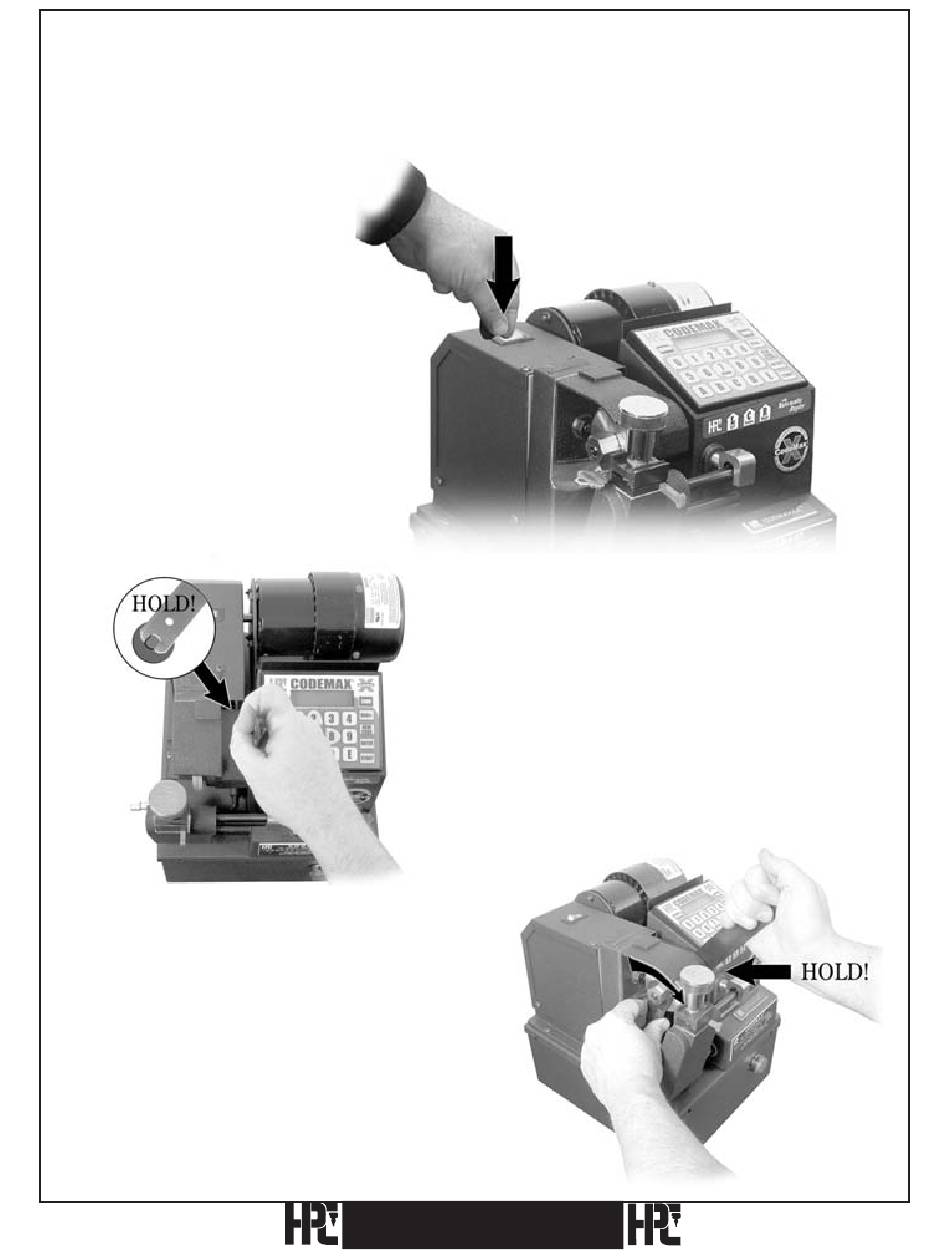

) Turn the CodeMax
) Loosen the cutter shaft nut with
the /4 inch WRENCH- by turning
it clockwise (left hand thread). The
cutter shaft is threaded with reverse,
left-hand thread.
2
off.
®
2)
CodeMax
Hold the cutter shaft with the
/2 inch end of WRENCH-.
®
