5.2.2 Cutting Too Far From The Tip (On Keys Gauged From The Tip Stop)
) Select a tip-gauged, factory cut large cylinder type key, such as Best, Falcon, or Ford.
Make sure that all cuts are deeper than a # depth.
2) Install the correct cutter wheel.
) Turn on the CodeMax
4) Select and enter the proper DSD number.
5) Enter all # cuts for the depths. Then press ENTER to accept, and then START to
begin the cutting process.
6) The CodeMax
®
to the first cut (closest to the tip) and the key begins traveling towards the cutter
(making the depth cut), push the Emergency Stop Button.
7) Check to see if the cutter is in the center of the cut (see Fig. ).

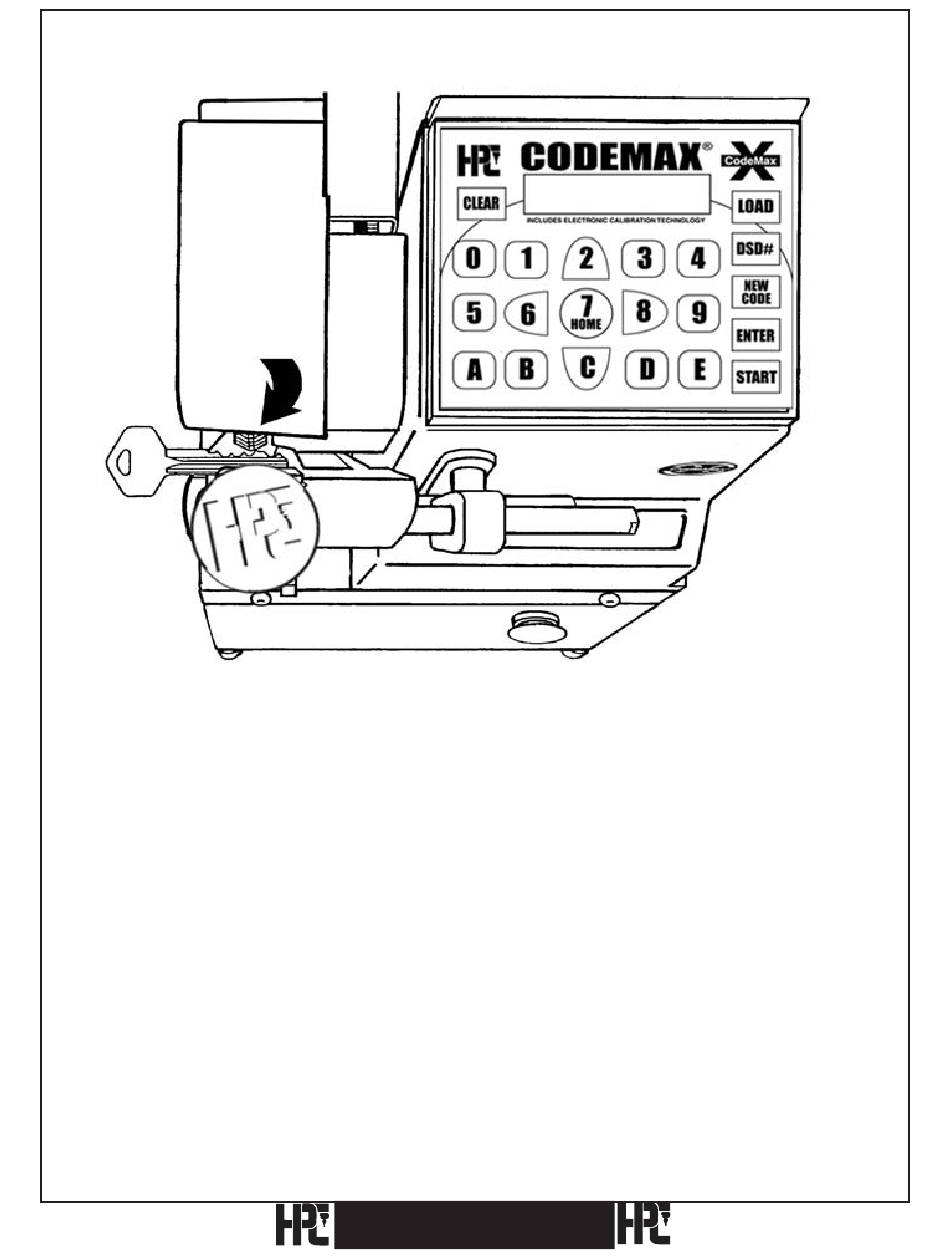

Fig. 1
.
®
will start to travel laterally towards the key. When the machine travels
CodeMax
®
