1.4 Basic CodeMax Setup
®
Find a suitable location for the
CodeMax machine. This should be
®
an area with good ventilation for the
cutter motor and easy access to the
front and top of the machine for use
and cleaning.

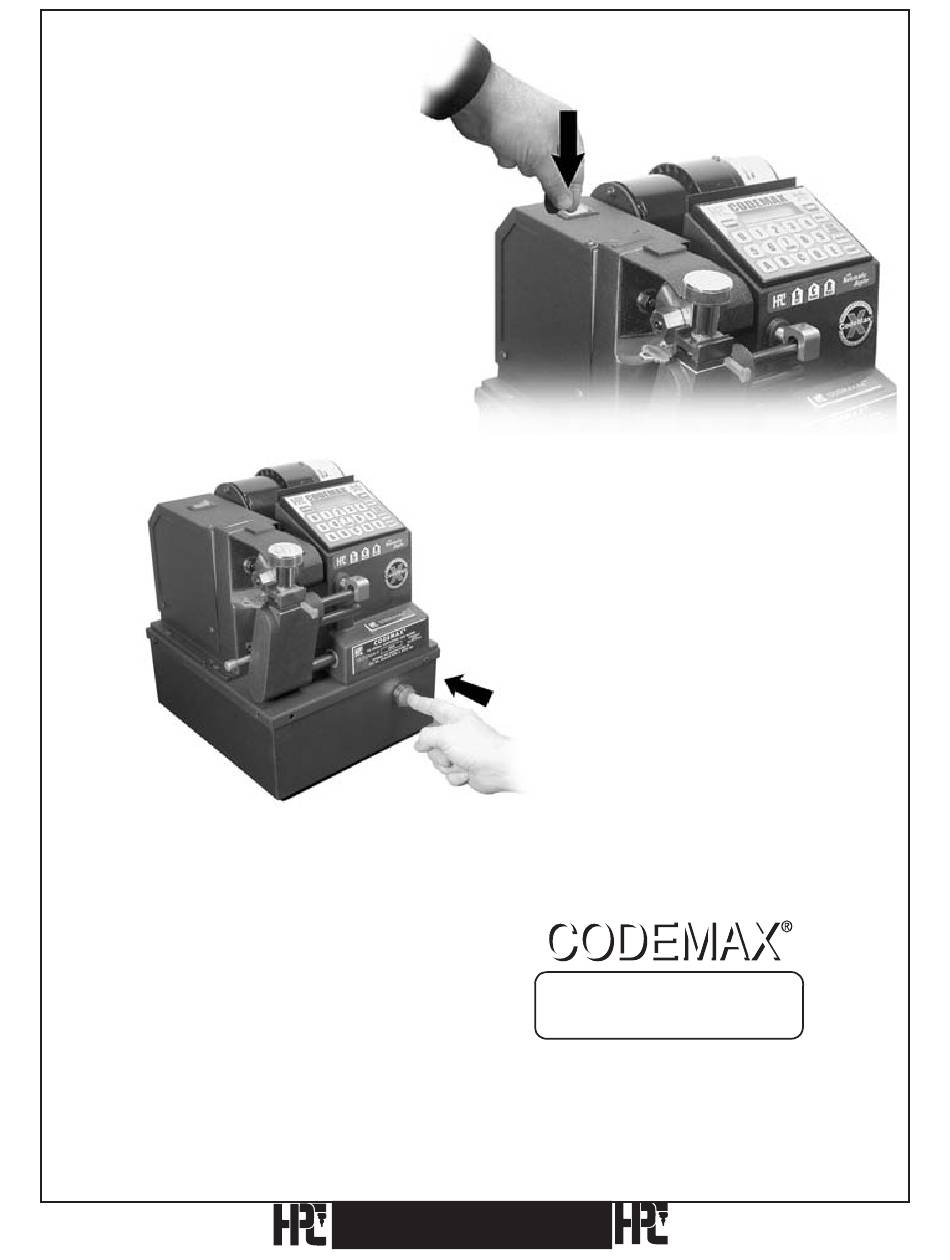

Plug the cord into the back of
the CodeMax and then into the
®
appropriate electrical outlet. Turn
on the CodeMax using the switch
®
located at the left rear of the
machine.
The display will read "Emergency
Stop Depressed". Make sure there
is nothing interfering with the
pivot arm, cutter wheel, and motor.
Push the large, red emergency stop
button located at the front of the
CodeMax until it pops out.
®
The CodeMax will go through a brief test
®
routine to prepare itself for use. The CodeMax
®
CodeMax Ready
display will read "CodeMax Ready", indicating
HPCSoft Version 10.0
that the machine is in its main screen and ready
for use.
CodeMax
®
9
