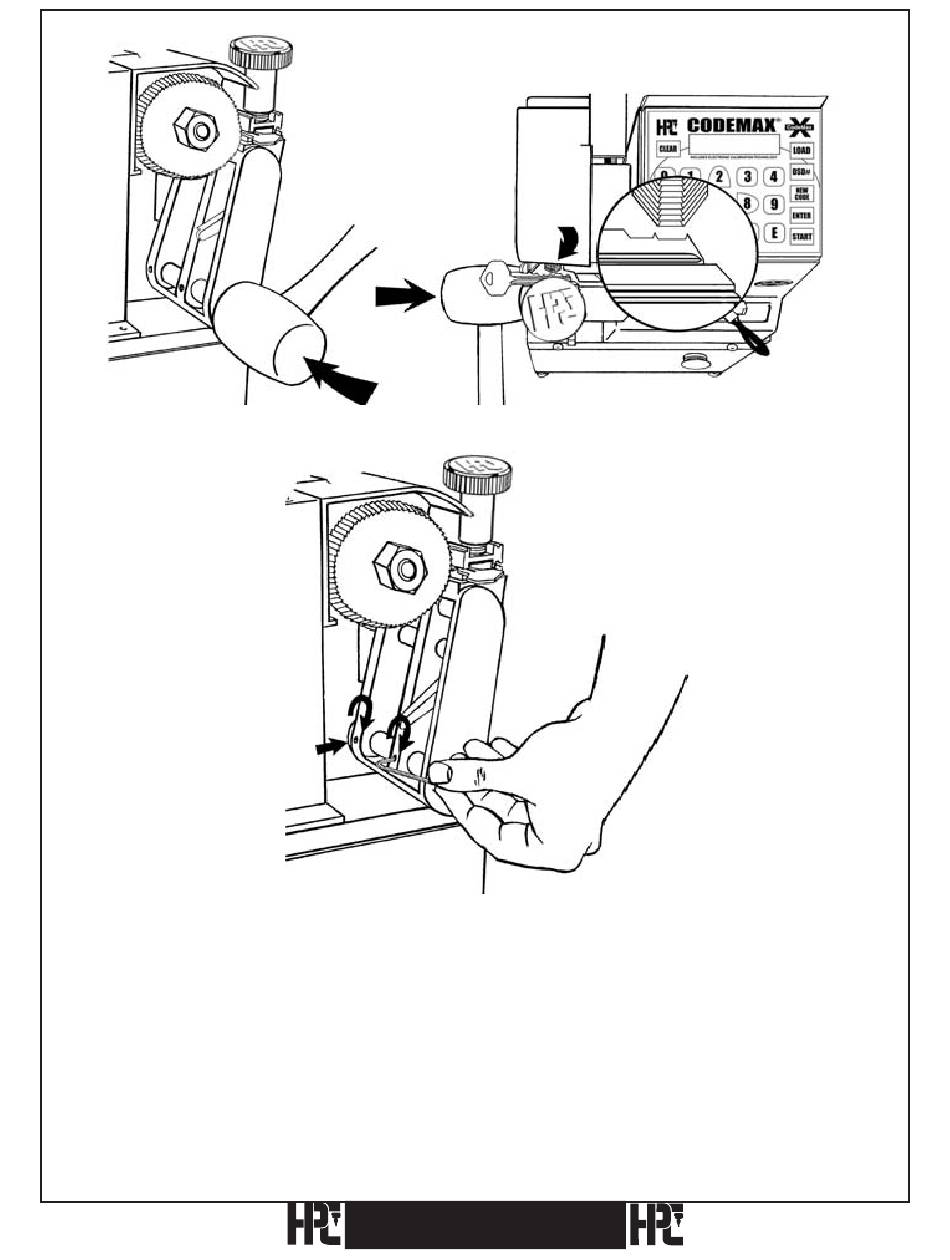

9) With a small rawhide or plastic mallet, lightly tap the lower, left side of the Pivot Arm
until the pin seat of the cut is directly opposite the flat of the cutter (see Fig. 2). With
the cutter aligned opposite the cut, retighten the set screws (see Fig. ).
0) Release the Emergency Stop Button. The Pivot Arm will return to the HOME position.
Note: You may have to recalibrate the Shoulder Gauge after recalibrating the tip Gauge.
52
Fig. 2
Fig. 3
