3.3.2 Standard Cylinder Key With Shoulder Gauging Using Jaw B (Example: Master,
DSD #49)
) Place the key blank in Jaw B. Make sure that the key lies in front of the lip, and flat
against the lip. Raise the Shoulder Gauge to its upright position. Position the key
blank with the shoulder of the key lightly touching the left hand edge of Shoulder
Gauge (avoid undue pressure – see Note below).
Note: the spacing of the key cuts can be significantly affected by any damage incurred to the
Shoulder Gauge. Handle the Shoulder Gauge with care! Damage to the Shoulder Gauge most
often occurs when the gauge comes in contact with the cutter, or when undue pressure is used
when gauging against the key's shoulder. Make sure to gently position the key blank against the
Shoulder Gauge to avoid damage.
Red Tip
Gauge
Position

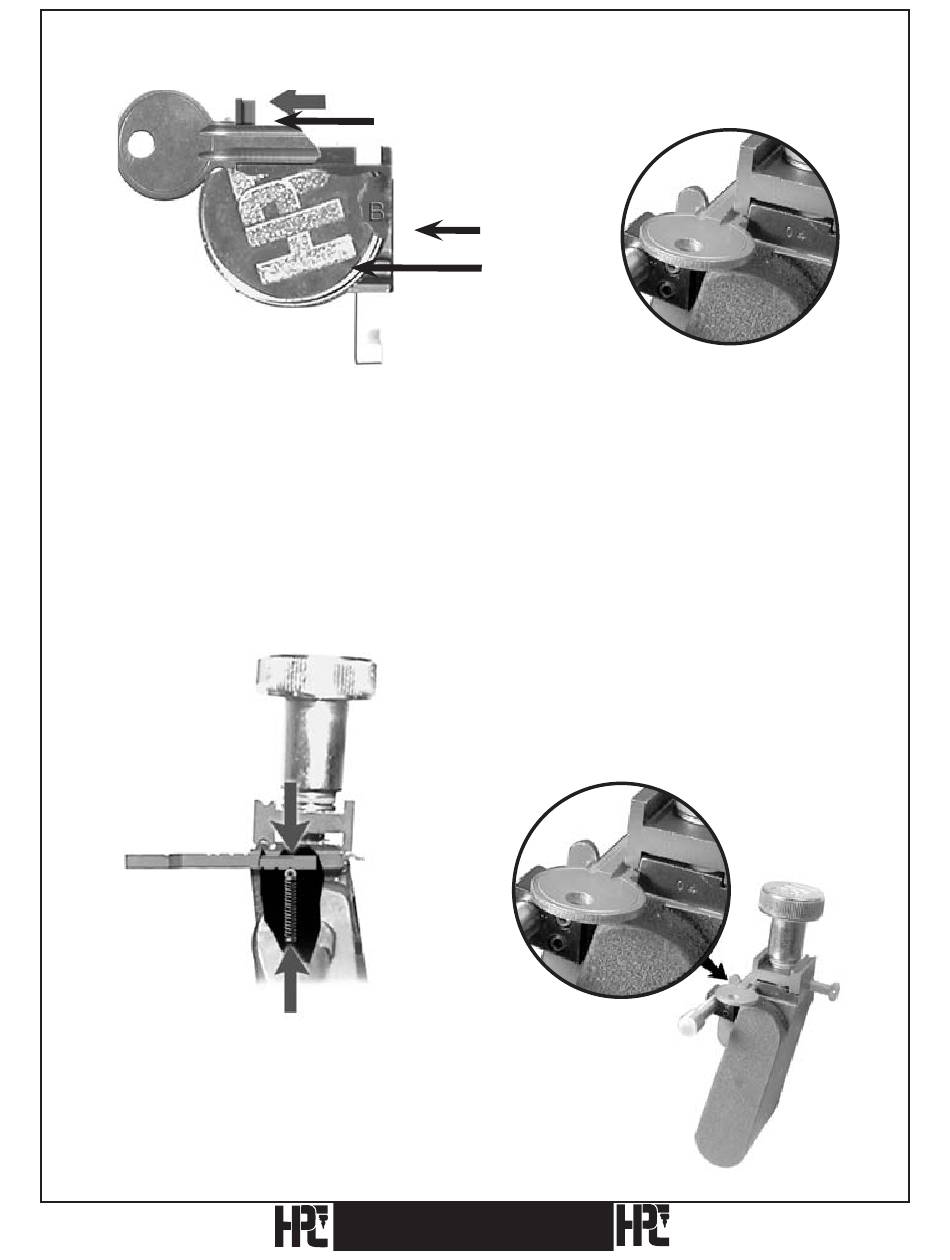

) Make sure that the key lies in front
of the lip, and flat against the lip.
Shoulder Gauge
Jaw B
Wing Nut
2) Make sure the Tip Gauge is completely out
of the way, and that the Horseshoe Tip Gauge
is removed.
CodeMax
®
2
