HPC CodeMax Manual page 34

Cutting Medeco Biaxial Keys
Medeco Biaxial keys utilize the Left, Right and Center angles and add the position of the angle:
"Fore" (the depth comes before the angle) or "Aft" (the depth comes after the angle). Medeco
designates the angles and positions as follows:
On the standard model CodeMax
The bitting screen will display 12 spaces to accommodate the position of the angle relative to the
depth on a 6-space key. This is accomplished by inserting a zero (0) (representing the position of
the angle) before the depth for an AFT cut or after the depth for a FORE cut. For example, a key
that reads:
On the standard model CodeMax
043005023002
The machine will pause at each position and prompt you to rotate the cutter head as needed.
4.1.3. Use of the CodeMax
On the Automatic Angler model, use DSD Number 3076.
The bitting screen will display 12 spaces to accommodate both the angle and the position.
The position is designated by the sequence it is input relative to the depth.
Medeco
K
B
Q
M
D
S

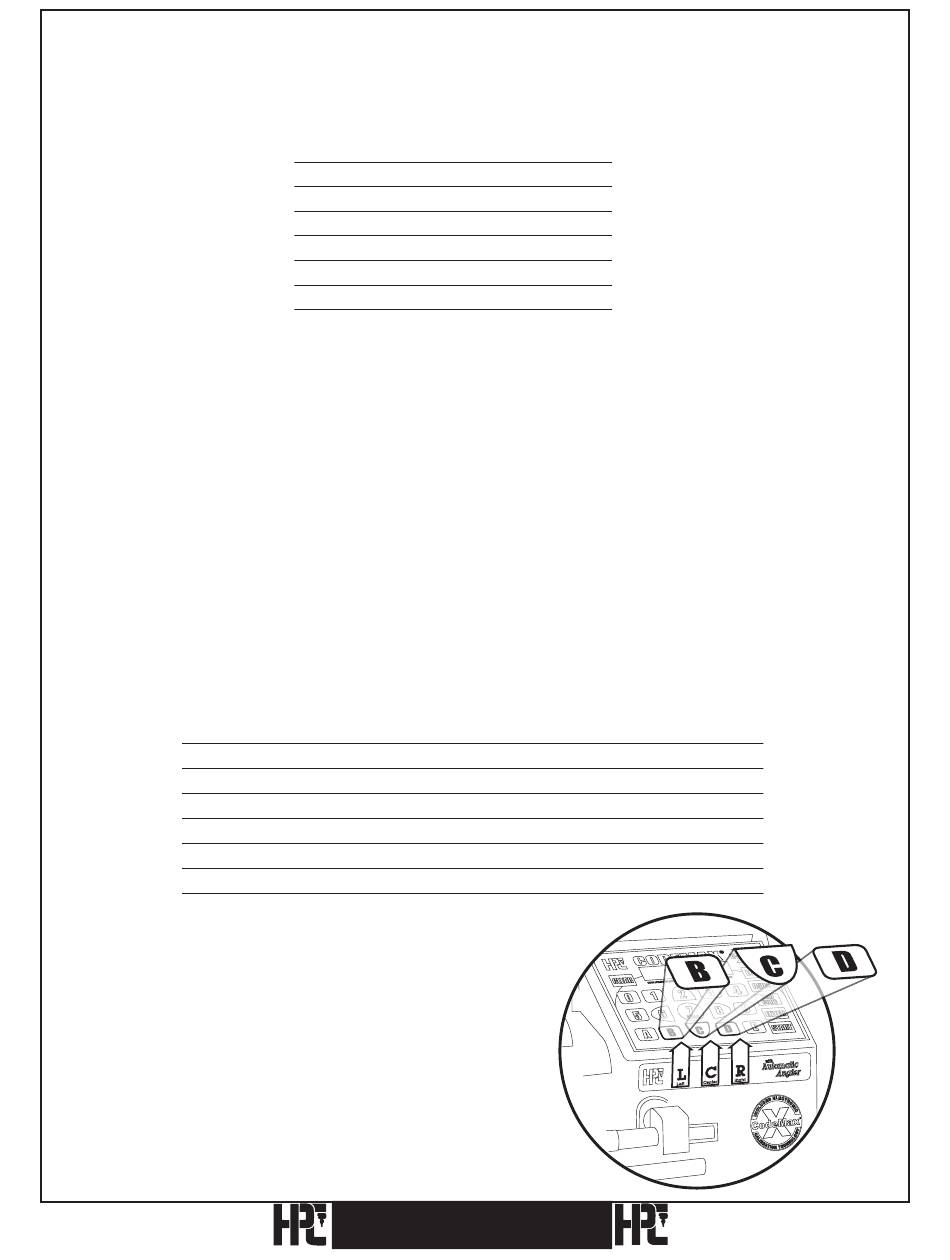

Use the "B" key for Left, the "C" key for Center
and the "D" key for Right.
To specify a 3-depth in the FORE position, with a
LEFT angle, enter the depth then the angle: 3L.
To specify a 5-depth, in the AFT position with a
RIGHT angle, enter the angle then the depth: R5.
Medeco Code
®
K
B
Q
M
D
S
, use DSD Number 76.
®
D4 3B M5 D2 3K S2
aft fore aft aft fore aft
it is entered as:
®
AA Automatic Angler
®
Code Position & Angle
®
Fore, Left
Fore, Center
Fore, Right
Aft, Left
Aft, Center
Aft, Right
CodeMax
Position & Angle
Fore, Left
Fore,Center
Fore, Right
Aft, Left
Aft, Center
Aft, Right
DSD 3076 Buttons
Depth, then Left
Depth, then Center
Depth, then Right
Left, then Depth
Center, then Depth
Right, then Depth
®
