Black Horseshoe Tip Stop Gauging Using Jaw B - HPC CodeMax Manual

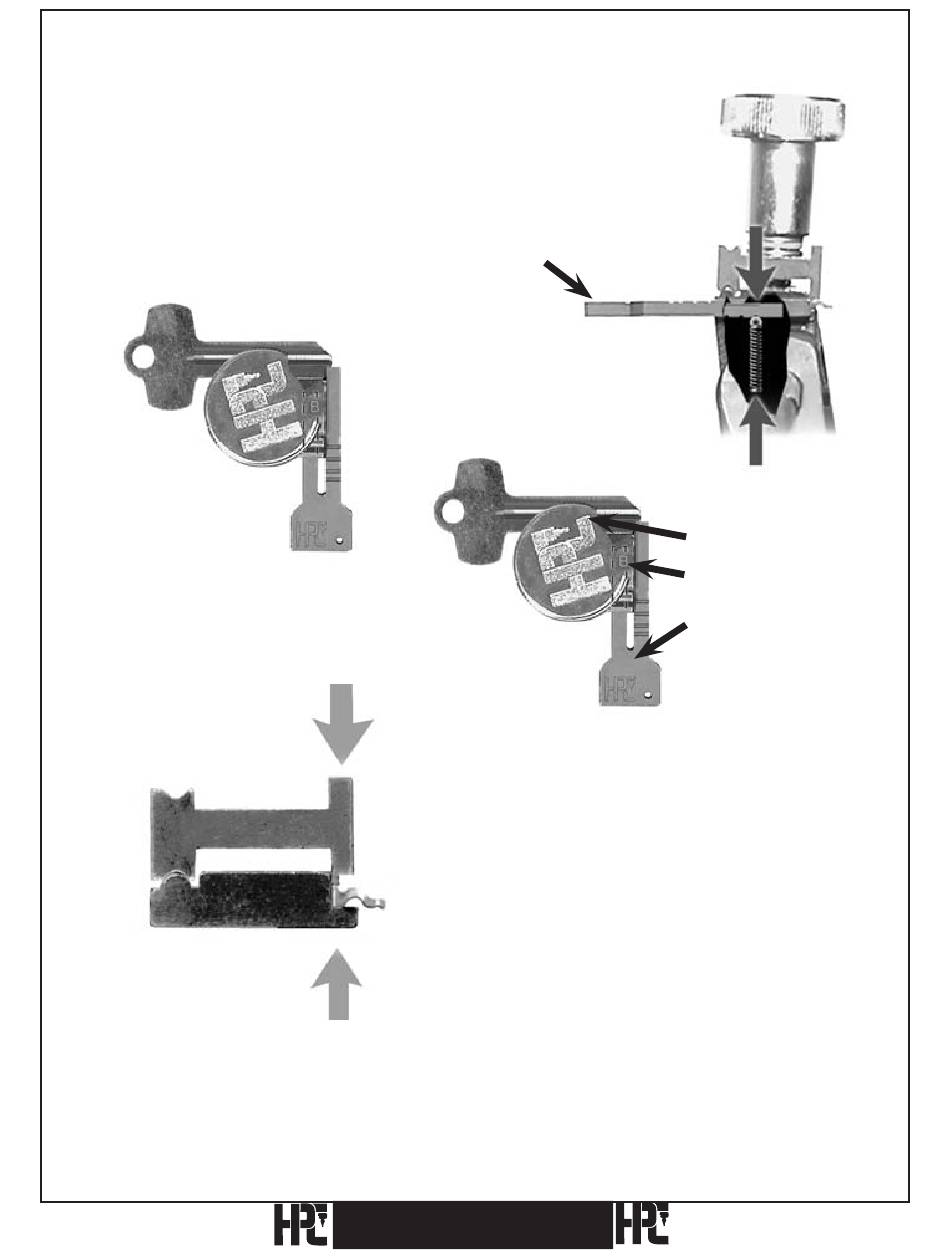

3.3.5 Black Horseshoe Tip Gauge In Position 1 (Short Tip Stop) Using Jaw B
(Example: DSD #3)
) The Tip Gauge is pushed
inward to position .
2) The key is gauged from the bottom
stop of the key, not the tip.
4) Note the special holding on the key milling
using Jaw B. (The key must be lying flat against the
back ledge of the Bottom Jaw as shown.)
Horseshoe Tip Gauge
) Slide the key to the right until the bottom
stop of the key touches the right leg of the
Horseshoe Tip Stop. Be sure the key lies
flat against the back edge of the bottom
jaw before tightening the wing nut.
Note: Undue pressure against the right leg will cause
the legs to spread, resulting in inaccurately cut keys.
CodeMax
®
Position
Wing Nut
Jaw B
Horseshoe Tip Stop
25
