Static Colour Mode Chart - Event Lighting PRO PAR PAR6X12OB User Manual

->
Static colour mode
Value: Function:
C1 R
C2 G
C3 R + G
C4 B
C5 B + R + UV
C6 G + B
C7 R + G + B + A + UV
C8 W
C9 R + W
C10 G + W
C11 R + A
C12 B + W + UV
C13 R + B + W + UV
C14 G + B + W
C15 R + G + B + W + A + UV
Wireless DMX mode
Set up wireless DMX
The fixture needs to be paired from the wireless DMX transmitter. Follow below steps to pair.
Step 1: Connect the DMX512 controller to the wireless DMX transmitter.
Step 2: Switch on the PAR6x12OB, turn on the wireless DMX control on from control panel 'rfon'
Step 3: Set the PAR6x12OB to DMX mode. (AXXX or dXXX)
Step 4: Switch off the PAR6x12OB. Press and hold the 'DMX select' button whilst switching on the fixture. Once the
fixture turns on the 'wireless status' light will be lit white and the unit will be in 'setup mode'.
Step 5: The 'wireless indicator' will be lit to a specific colour to indicate the protocol being used for the transmission as
shown in TABLE1. Pressing the button will cycle through the colours and once you want to set the protocol pressing the
button for more than 1s will save the protocol. The transmitters, receivers and transceivers will remember the protocol
used even after a power cycle with their built in memory chip.
Now you need to setup as for WDMX mode or EL mode
www.event-lighting.com.au

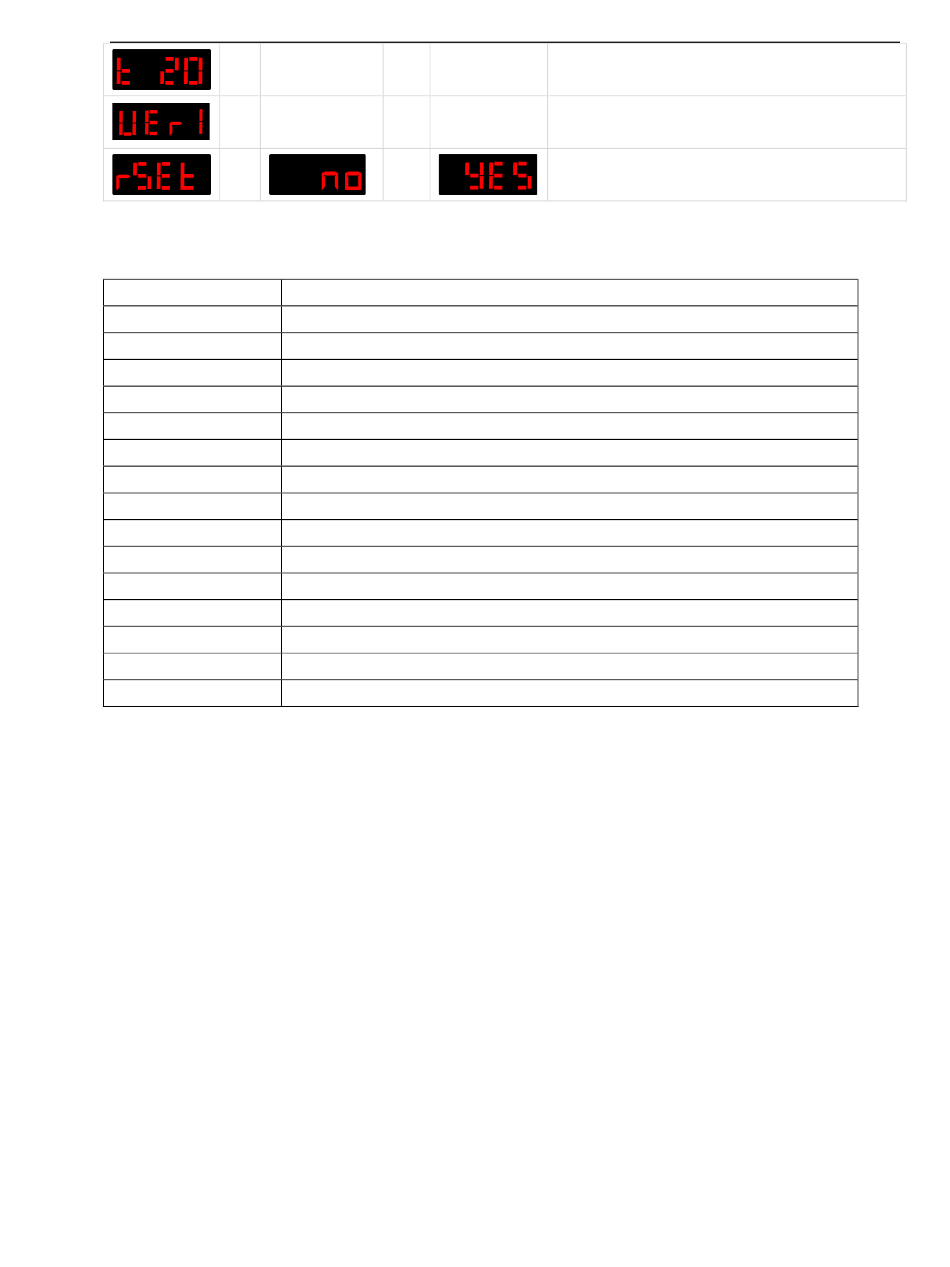

Display current temperature
