Programming PSoC 5LP Prototyping Kit Using MiniProg3/KitProg

The target board has a provision to program the PSoC 5LP device using MiniProg3 or an external

KitProg via the 5-pin SWD header or the 10-pin JTAG header. To do this, connect wires or a 5-pin

100-mil spaced header to J3 or a 10-pin JTAG header to J5 on the target board. The PSoC 5LP

Prototyping Kit supports both power cycle and reset programming modes.

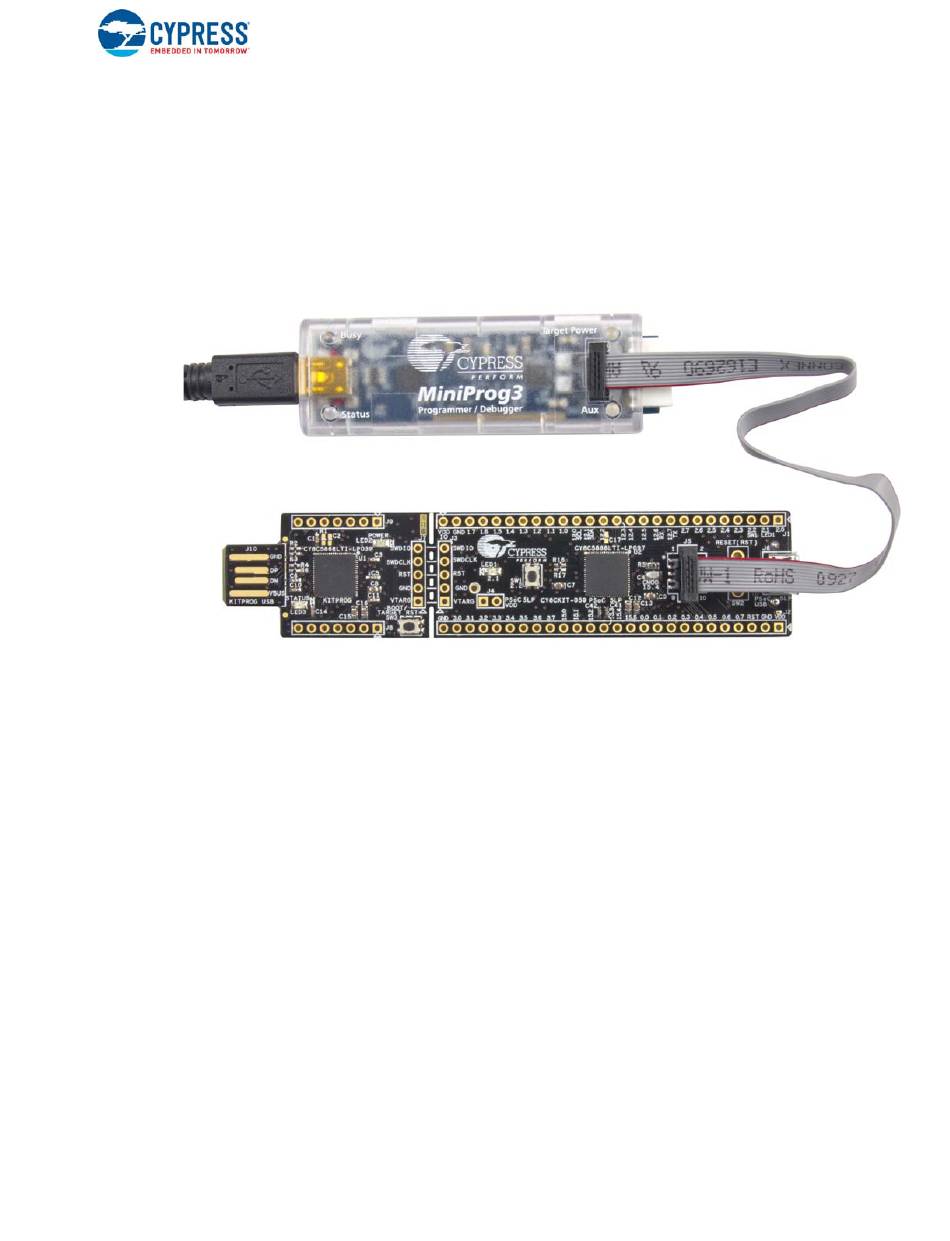

Figure A-1. Connecting CY8CKIT-059 to MiniProg3

Note: CY8CKIT-002 MiniProg3 is not part of the PSoC 5LP Prototyping Kit contents and can be

purchased from the Cypress Online Store.
