4.2.6.4 System Capacitors
The PSoC 5LP Prototyping Kit has seven capacitors, which are used when ADC operation at high
frequencies, CapSense, or external 32-kHz crystal oscillator is required in the application.
Four ADC bypass capacitors: Required for proper ADC sampling at high frequencies:
■
C9 and C12 – For two SAR ADCs
❐
❐ C7 and C13 – For Delta Sigma ADC
A CapSense capacitor (CMOD): Required for proper CapSense functionality.
■
Two biasing capacitors: Required for interfacing an external 32-kHz crystal oscillator. These
■
capacitors are added in the Rev *A version of the PSoC 5LP Prototyping Kit.
Note: The crystal oscillator is not placed on the board, it can be soldered on pins P15_2 and P15_3.

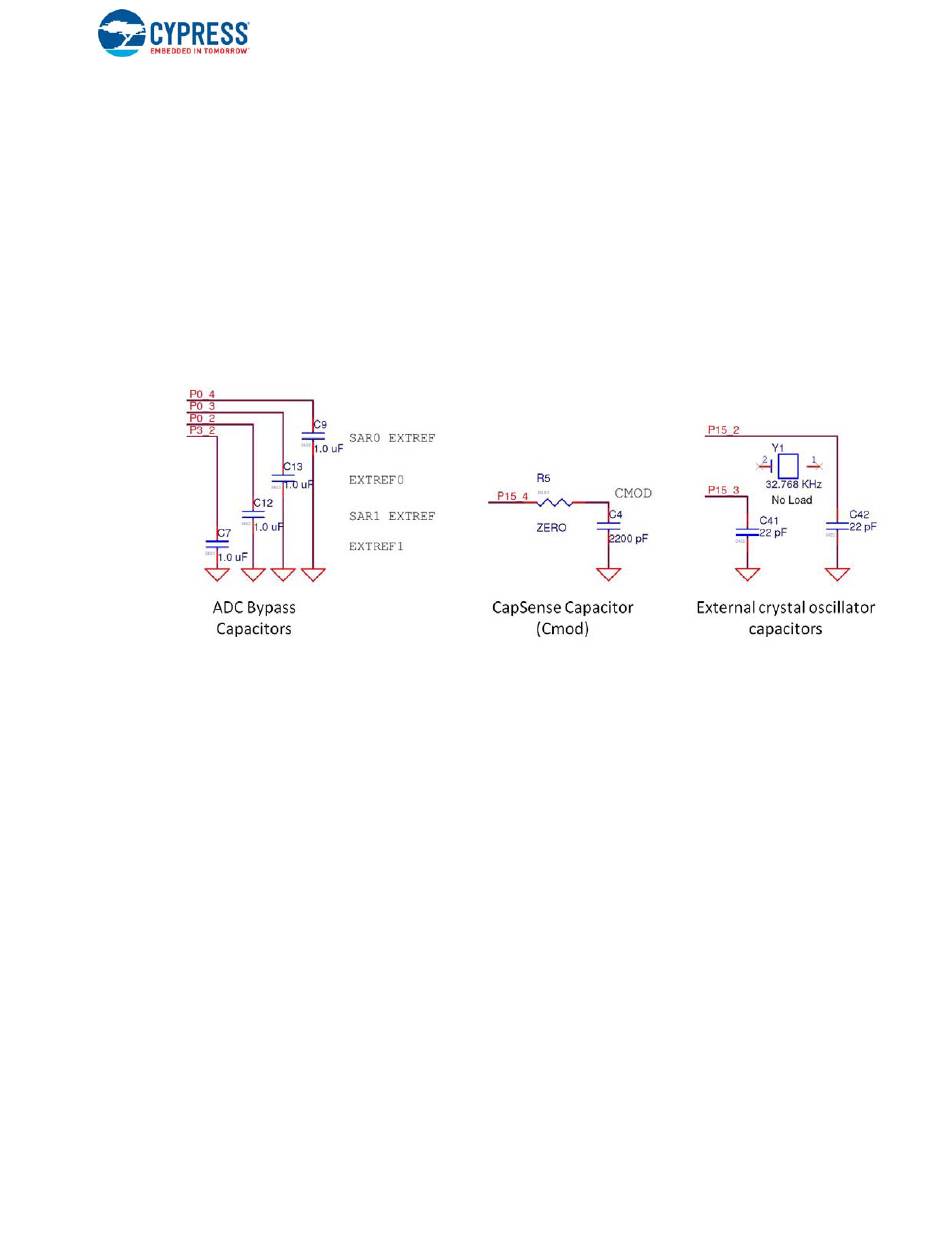

Figure 4-14. System Capacitors Circuit Diagram
