- Page 1 CY8CKIT-024 CapSense® Proximity Shield Kit Guide Doc. No. 001-92568 Rev. *A Cypress Semiconductor 198 Champion Court San Jose, CA 95134-1709 Phone (USA): 800.858.1810 Phone (Intnl): +1.408.943.2600 http://www.cypress.com...
- Page 2 PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described herein. Cypress does not assume any liability arising out of the application or use of any product or circuit described herein. Cypress does not authorize its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user.
-
Page 3: Table Of Contents
Contents Introduction ..................................6 Kit Contents ................................6 Getting Started ..............................7 1.2.1 Beginner’s Resources ..........................7 1.2.2 Hardware Requirements ........................... 8 1.2.3 Software Requirements ..........................8 1.2.4 Application Notes and Projects ......................... 9 Technical Support ..............................9 Acronyms................................9 Document Conventions ............................ - Page 4 Safety Information The CapSense® Proximity Shield Kit (CY8CKIT-024) is intended for use as a hardware or software development platform in a laboratory environment. This product is an open-system design, which does not include a shielded enclosure, so it may cause interference with other electrical or electronic devices in close proximity. In a domestic environment, this product may cause radio interference.
- Page 5 General Safety Instructions ESD Protection ESD can damage boards and associated components. Cypress recommends that you perform procedures only at an ESD workstation. If an ESD workstation is not available, use appropriate ESD protection by wearing an antistatic wrist strap attached to the chassis ground (any unpainted metal surface) on the board when handling these parts.
-
Page 6: Introduction
1. Introduction Thank you for your interest in the CapSense Proximity Shield Kit (CY8CKIT-024). This kit is intended to demonstrate the ® proximity-sensing capabilities of the CapSense technology in Cypress’s PSoC products. This kit supports the following proximity-sensing features: Large proximity-sensing distance: The kit has a proximity loop with a 10.3-cm diagonal, which, when interfaced with the ... -
Page 7: Getting Started
Introduction Figure 1-1: Kit Contents Inspect the contents of the kit. If you find any part missing, contact your nearest Cypress sales office for help. Go to http://www.cypress.com/go/support for more information on Cypress sales offices and support. 1.2 Getting Started... -
Page 8: Hardware Requirements
You can configure each Component in the rich, mixed-signal Cypress Component Catalog with the Component Customizer tool. These Components include a full set of dynamically generated API libraries. After you have configured the PSoC system, you can write, compile, and debug the firmware within PSoC Creator, or export the firmware to other IDEs such as those from IAR, Keil, and Eclipse. -
Page 9: Application Notes And Projects
1.3 Technical Support For assistance, go to our support web page (http://www.cypress.com/support) or contact our customer support at +1(800) 541-4736 Ext. 2 (in the USA), or +1 (408) 943-2600 Ext. 2 (International). 1.4 Acronyms... -
Page 10: Document Conventions
Introduction 1.5 Document Conventions Table 1-2: Document Conventions Convention Usage Courier New Displays file locations, user-entered text, and source code: C:\ ...cd\icc\ Italics Displays file names and reference documentation: Read about the sourcefile.hex file in the PSoC Designer™ User Guide. [Bracketed, Bold] Displays keyboard commands in procedures: [Enter] or [Ctrl] [C]... -
Page 11: Kit Hardware

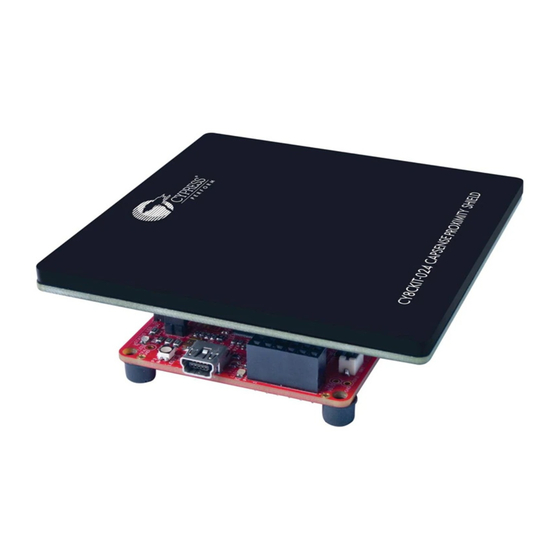

One slide switch to evaluate the difference in performance between ground and driven shield Six blue-color LEDs to implement visual effects Arduino-compatible headers to interface with Cypress PSoC Pioneer Kits Driven-shield pin on Arduino-compatible headers for large proximity-sensing distance/liquid tolerance ... - Page 12 Kit Hardware Figure 2-2: Top View of CY8CKIT-024 Figure 2-3: Top View of CY8CKIT-024 Without Overlay Note that CY8CKIT-024 is shipped with the overlay stuck on the board. Figure 2-3 is provided only to show the proximity sensors’ location on the kit. CY8CKIT-024 CapSense®...
-
Page 13: Theory Of Operation
Kit Hardware 2.2 Theory of Operation This section provides a high-level description of the principle of proximity sensing and describes where the CY8CKIT-024 kit and PSoC devices fit in a capacitive proximity-sensing system. 2.2.1 Principle of Capacitive Proximity Sensing Capacitive proximity sensors are conductive (usually copper/indium tin oxide) pads or traces laid on a nonconductive material like PCB or glass. -
Page 14: Cy8Ckit-024 System
These sensors can be interfaced with PSoC 4 devices present on Cypress PSoC Pioneer Kits through Arduino-compatible headers, as Figure 2-6 shows. - Page 15 Kit Hardware Figure 2-7: Sensor Pattern GND/SHIELD PROX 2.3.1.1 Proximity Sensors PS1 and PS2 Proximity sensors PS1 and PS2 are provided to detect horizontal gestures, such as hand movements, from left to right or right to left. Figure 2-8 shows a left-to-right hand movement. A gesture is detected based on the sequence in which these sensors detect the presence of a hand.
-
Page 16: Arduino-Compatible Headers
Kit Hardware 2.3.1.2 Proximity Sensors PS3 and PS4 The proximity sensors PS3 and PS4 are provided to detect vertical gestures, such as hand movements, from top to bottom or from bottom to top. Figure 2-9 shows a bottom-to-top hand movement. A gesture is detected based on the sequence in which these sensors detect the presence of a hand. - Page 17 Kit Hardware Table 2-2: J2 Arduino Header Pin No. Arduino Board Signal CY8CKIT-024 CY8CKIT-040 CY8CKIT-042 J2.1 LED5 P0.0 P2.0 J2.2 P0.1 P2.1 TANK J2.3 P0.2 P2.2 CY8CKIT-040 J2.4 P0.4 P2.3 J2.5 P1.3 P2.4 J2.6 P1.2 P2.5 Table 2-3: J3 Arduino Header Pin No.
-
Page 18: Hatch Pattern
Kit Hardware 2.3.3 Hatch Pattern A hatch pattern is provided on the bottom layer of the board, as Figure 2-10 shows. This hatch pattern may either be connected to ground or to the driven shield pin on the kit using Slide Switch SW1. -
Page 19: Leds
Kit Hardware Figure 2-12 shows, C is connected to pin J2.3. This Arduino header pin connects C to P0.2 of CY8CKIT-040. TANK TANK Within PSoC Creator, you should configure this pin as the “shield tank capacitor” in the Advanced tab of the CapSense Component Configuration window when you develop projects with the CY8CKIT-040 kit. - Page 20 Kit Hardware Figure 2-15: LEDs’ Connection CY8CKIT-024 CapSense® Proximity Shield Kit Guide, Doc. No. 001-92568 Rev. *A...
-
Page 21: Example Projects
3. Example Projects CY8CKIT-024 can be used with Cypress PSoC Pioneer Kits to evaluate the proximity-sensing capabilities of CapSense in Cypress PSoC products. AN92239 contains the example projects that demonstrate the following features of CY8CKIT-024: Large proximity-sensing distance (approximately 10 cm) ... -
Page 22: Design Support
Local Sales Support Cypress recommends that you create a Technical Support Case for getting schematics and Layouts of CapSense designs reviewed with Cypress. Go to the webpage, http://www.cypress.com/techsupport, for creating a tech support case. CY8CKIT-024 CapSense® Proximity Shield Kit Guide, Doc. No. 001-92568 Rev. *A... -
Page 23: Appendix A: Schematics, Layout, And Bom
Appendix A: Schematics, Layout, and BOM A.1. Schematics Arduino Connectors CY8CKIT-024 CapSense® Proximity Shield Kit Guide, Doc. No. 001-92568 Rev. *A... - Page 24 Appendix LEDs GND/Shield Switch CY8CKIT-024 CapSense® Proximity Shield Kit Guide, Doc. No. 001-92568 Rev. *A...
- Page 25 Appendix Sensors and Shield CY8CKIT-024 CapSense® Proximity Shield Kit Guide, Doc. No. 001-92568 Rev. *A...
-
Page 26: Board Layout
Appendix A.2. Board Layout Top Layer Bottom Layer CY8CKIT-024 CapSense® Proximity Shield Kit Guide, Doc. No. 001-92568 Rev. *A... - Page 27 Appendix Top Silk Screen Bottom Silk Screen CY8CKIT-024 CapSense® Proximity Shield Kit Guide, Doc. No. 001-92568 Rev. *A...
-
Page 28: Bill Of Materials
Appendix A.3. Bill of Materials Item Reference Description Manufacturer Mfr Part Number PCB, 89.15 mm x 87.12-mm, 2-layer, Cypress Semiconductor ENIG finish, high Tg, black solder mask, white silkscreen J1, J4 CONN HEADER .100" SNGL STR Sullins Connector PRPC008SFAN-RC 8POS Solutions CONN HEADER .100"... -
Page 29: Revision History
Revision History Document Revision History Document Title: CY8CKIT-024 CapSense® Proximity Shield Kit Guide Doc. No. 001-92568 Revision Issue Date Origin of Change Description of Change 07/30/2014 PRIA New Application Note for Web CY8CKIT-024 CapSense® Proximity Shield Kit Guide, Doc. No. 001-92568 Rev. *A...
