4.

Hardware

4.1

Board Details

The PSoC 5LP Prototyping Kit consists of the following blocks:
PSoC 5LP device
PSoC 5LP header ports J1 and J2
Micro-USB connector, J6
PSoC 5LP program/debug JTAG header, J5
KitProg (PSoC 5LP) device
KitProg ports J8 and J9 (GPIO)
SWD connection J3 and J7
PCB USB connector
One amber LED (Power)
One green LED (Status)
One blue LED (User)
User push button and reset button
External reference capacitors (ADC Bypass)
CapSense capacitor (CMOD)
Programming connector, J3
Perforated 'snappable' board design

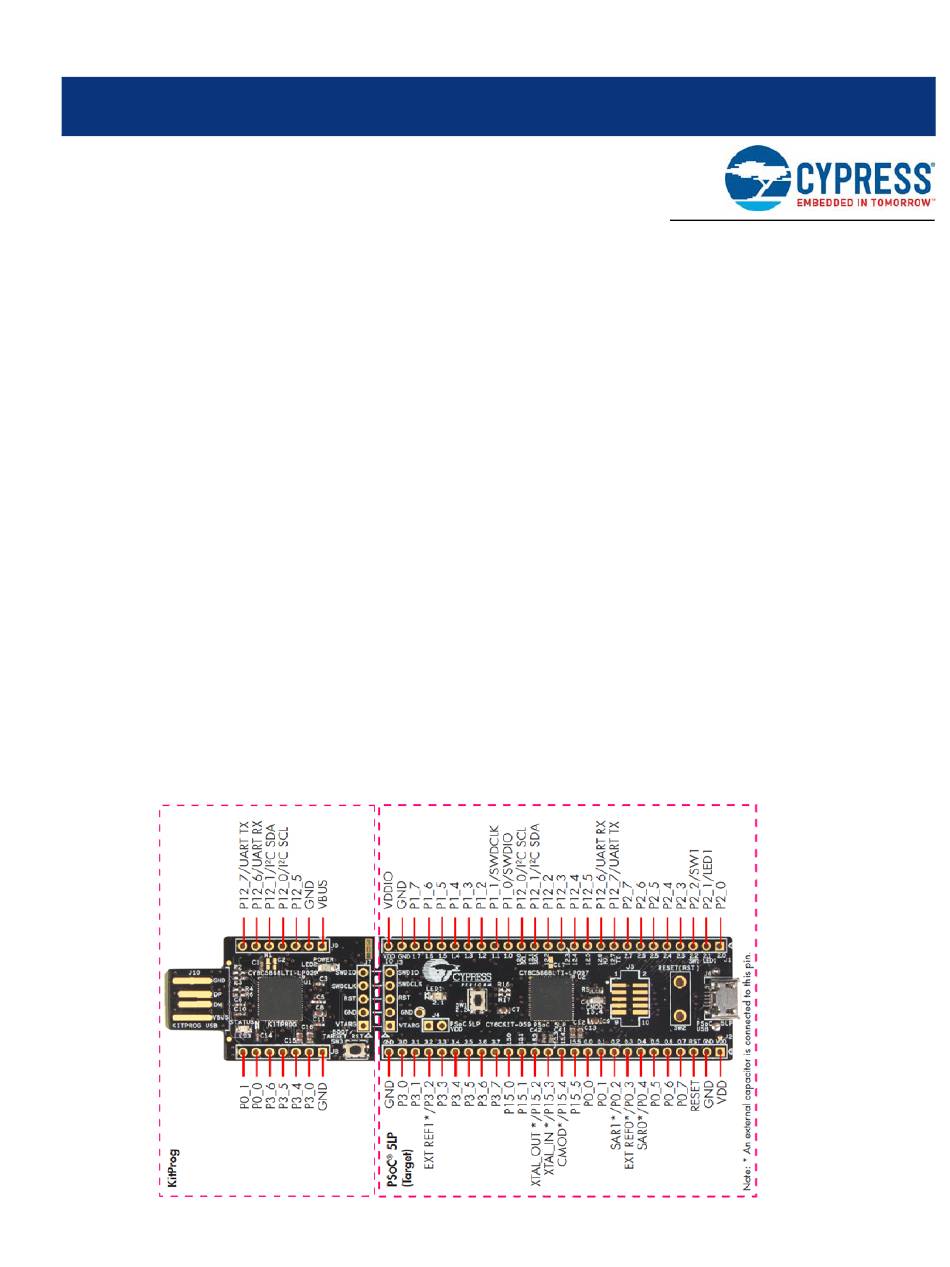

Figure 4-1. PSoC 5LP Prototyping Kit Pin Details
CY8CKIT-059 PSoC® 5LP Prototyping Kit Guide, Doc. #: 001-96498 Rev. *G
20
