5.2

CE195352_PSoC_5LP_Blinking_LED

This code example demonstrates the use of a fixed-function PWM. The PWM is set up to output a

50-percent duty cycle digital signal with a period of 1 second. This signal can be used to drive an

LED for visual testing of the PWM output. A switch is routed into the kill input of the PWM. When the

switch is pressed the PWM output is shut off.

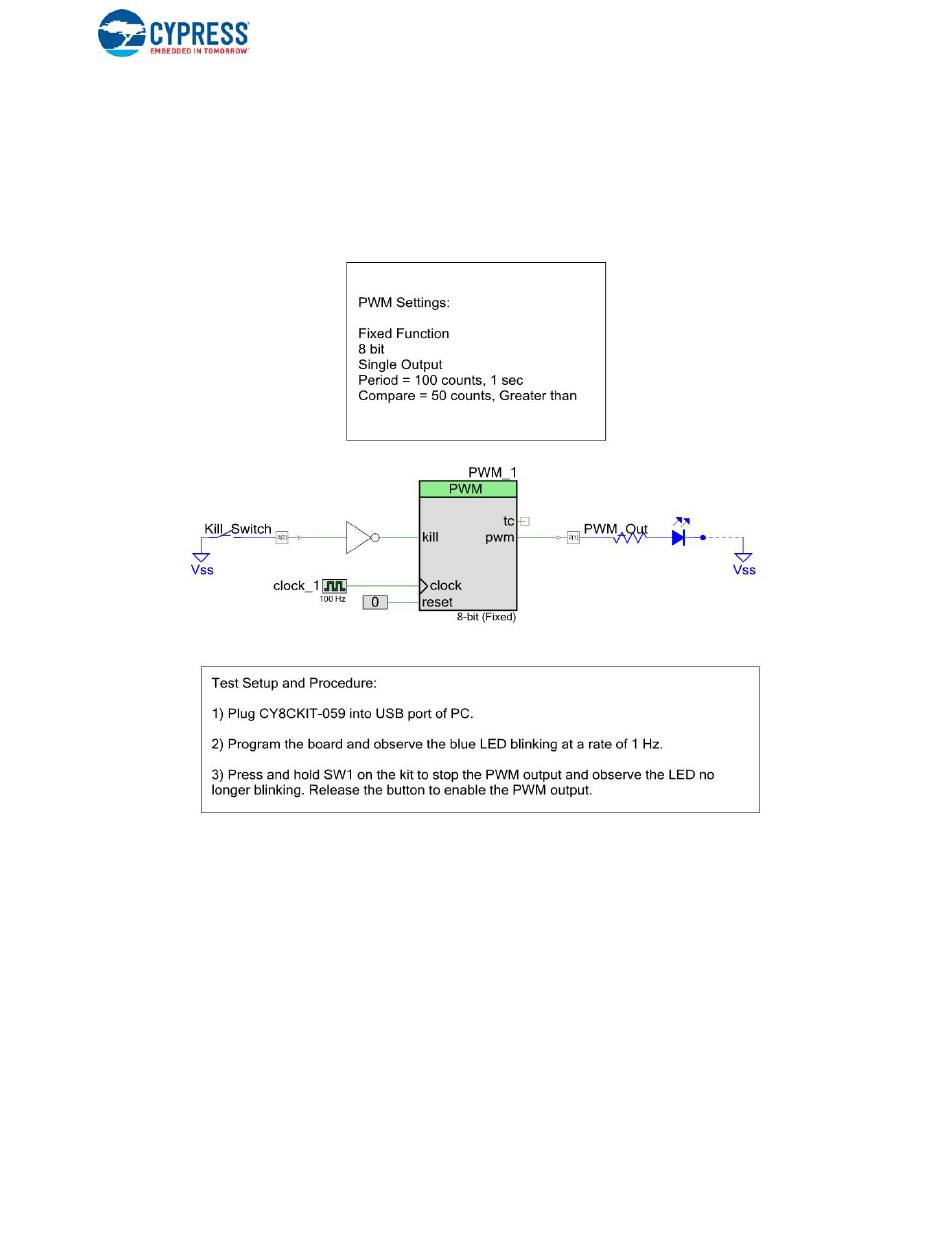

Figure 5-7. TopDesign for CE195352_PSoC_5LP_Blinking_LED

For a detailed description, refer to the CE195352_PSoC_5LP_Blinking_LED.pdf from PSoC Creator.

CY8CKIT-059 PSoC® 5LP Prototyping Kit Guide, Doc. #: 001-96498 Rev. *G
