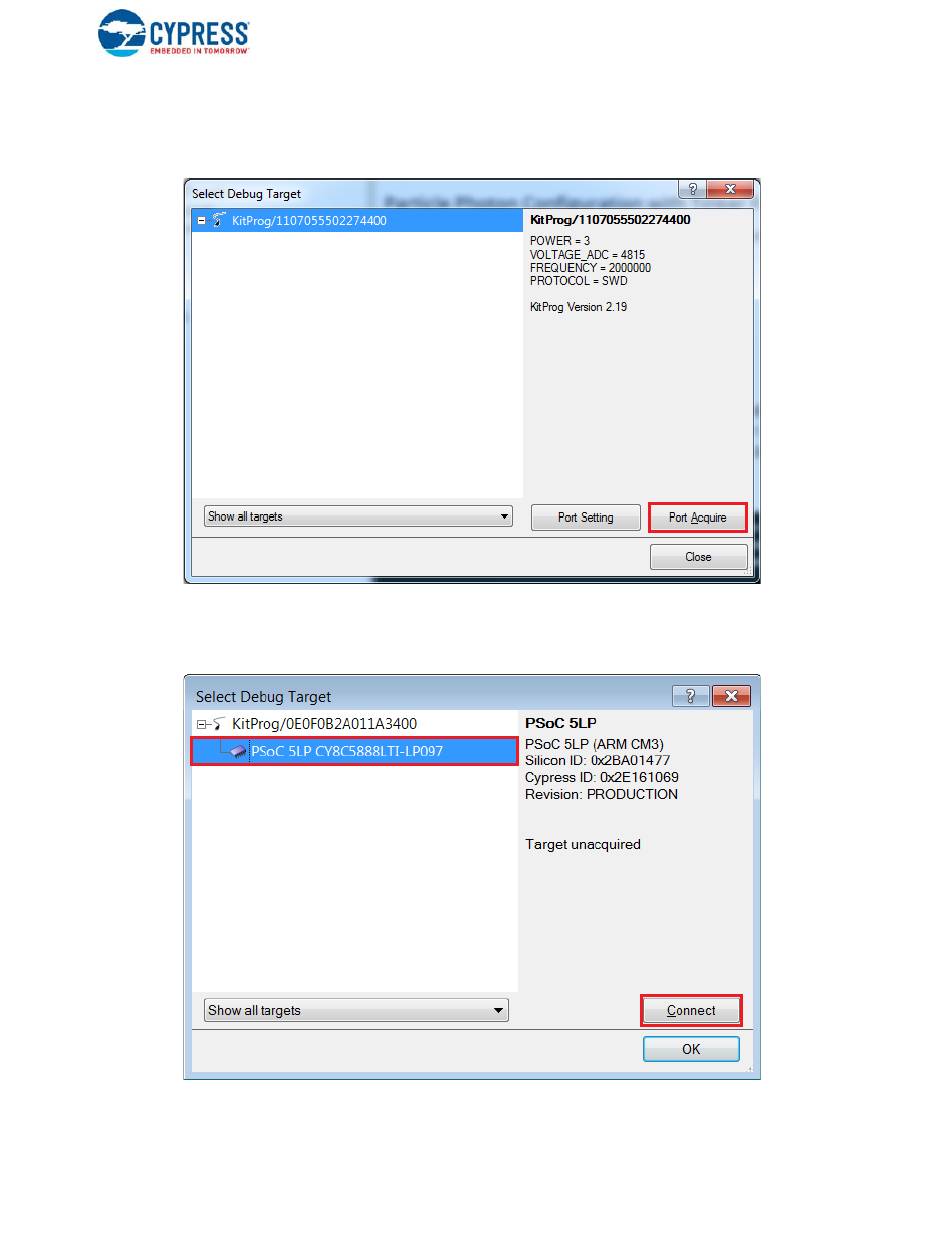

7. PSoC Creator opens the programming window if the device is not yet acquired. Select KitProg
and click the Port Acquire button, as shown in
Figure 5-4. Port Acquire
8. After the device is acquired, it is shown in a tree structure below the KitProg. Click the Connect
button and then OK to exit the window and start programming, as shown in
Figure 5-5. Connect Device From PSoC Creator and Program
CY8CKIT-059 PSoC® 5LP Prototyping Kit Guide, Doc. #: 001-96498 Rev. *G
Figure 5-4.
Code Examples
Figure 5-5.
