for the input, press  and press [ or ] to select between
the attribute enable/disable options and press to go to the
next attribute.
8. 'Input Description' will be displayed. Press  to enter a name
and location for this device or press  to return to input
selection.
9. 'Enter Name' will be displayed. Enter the name of the input and
press . This will be displayed if it is activated or when a
fault occurs.
10. 'Enter Location' will be displayed. Enter the location of the input
and press . This will be displayed if it is activated or when a
fault occurs after the name of the input has been shown.
11. Press [ or ] to select another input to program (01-66) or
press the key to return to the Engineer menu.

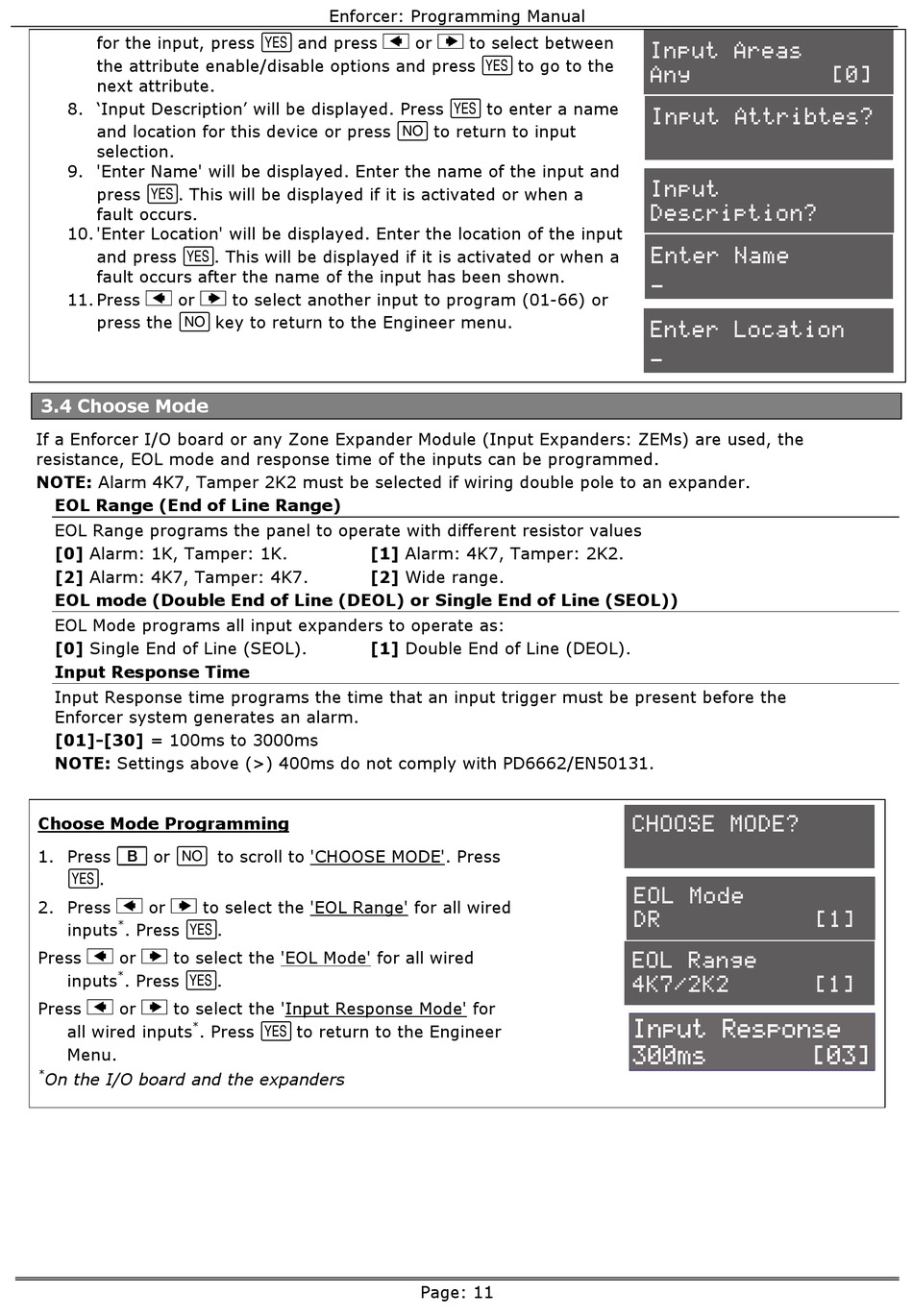

3.4 Choose Mode

If a Enforcer I/O board or any Zone Expander Module (Input Expanders: ZEMs) are used, the
resistance, EOL mode and response time of the inputs can be programmed.
NOTE: Alarm 4K7, Tamper 2K2 must be selected if wiring double pole to an expander.
EOL Range (End of Line Range)
EOL Range programs the panel to operate with different resistor values
[0] Alarm: 1K, Tamper: 1K.
[2] Alarm: 4K7, Tamper: 4K7.
EOL mode (Double End of Line (DEOL) or Single End of Line (SEOL))
EOL Mode programs all input expanders to operate as:
[0] Single End of Line (SEOL).
Input Response Time
Input Response time programs the time that an input trigger must be present before the
Enforcer system generates an alarm.
[01]-[30] = 100ms to 3000ms
NOTE: Settings above (>) 400ms do not comply with PD6662/EN50131.
Choose Mode Programming
1. Press or to scroll to 'CHOOSE MODE'. Press
.
2. Press [ or ] to select the 'EOL Range' for all wired
. Press .
*
inputs
Press [ or ] to select the 'EOL Mode' for all wired
. Press .
*
inputs
Press [ or ] to select the 'Input Response Mode' for
. Press to return to the Engineer
*
all wired inputs
Menu.
*
On the I/O board and the expanders
Enforcer: Programming Manual
[1] Alarm: 4K7, Tamper: 2K2.
[2] Wide range.
[1] Double End of Line (DEOL).
Page: 11
Input Areas
Any
Input Attribtes?
Input
Description?
Enter Name
_
Enter Location
_
CHOOSE MODE?
EOL Mode
DR
EOL Range
4K7/2K2
[0]
[1]
[1]
