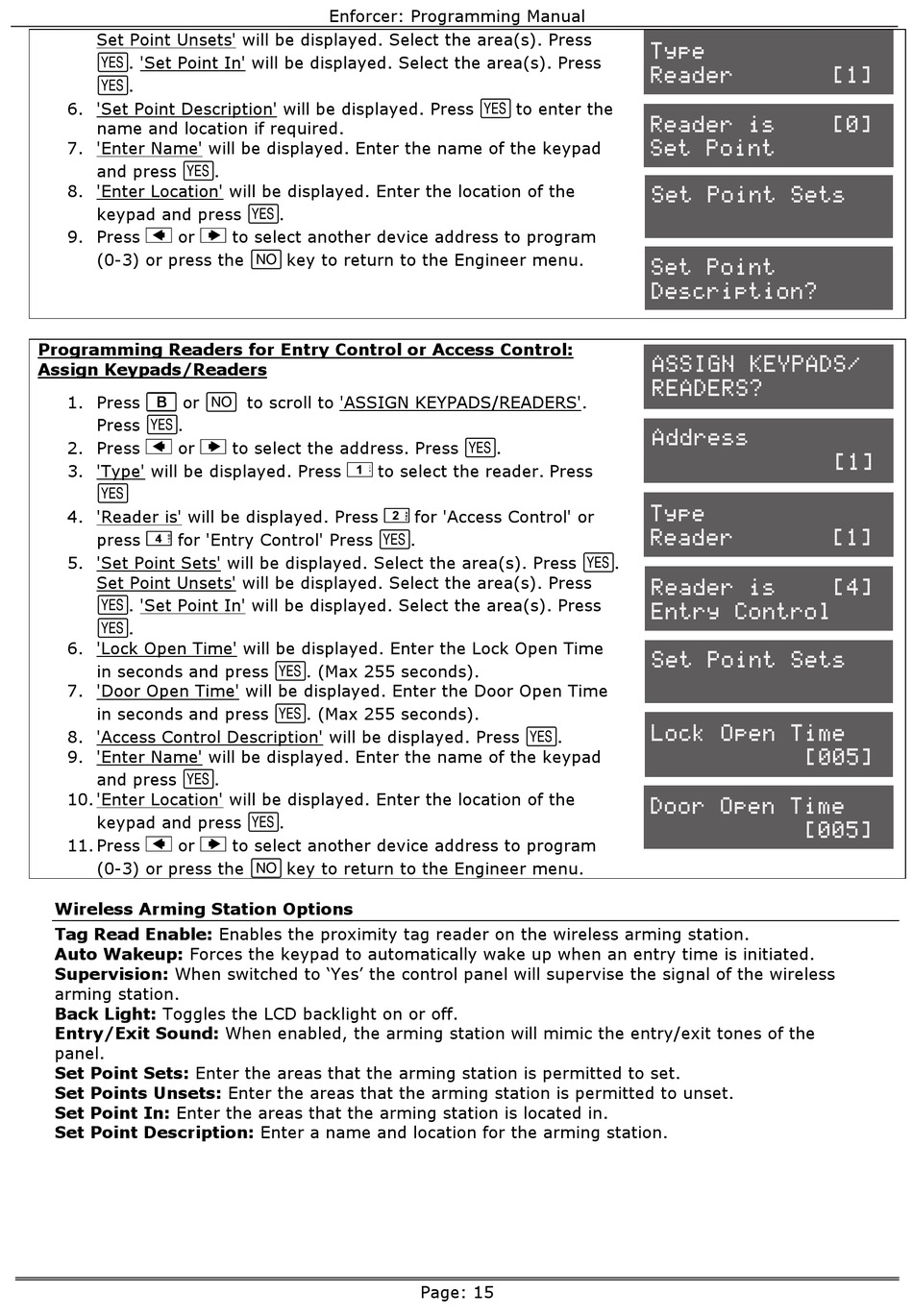

Pyronix ENFORCER Series Programming Manual page 15

Set Point Unsets' will be displayed. Select the area(s). Press
. 'Set Point In' will be displayed. Select the area(s). Press
.
6. 'Set Point Description' will be displayed. Press to enter the
name and location if required.
7. 'Enter Name' will be displayed. Enter the name of the keypad
and press .
8. 'Enter Location' will be displayed. Enter the location of the
keypad and press .
9. Press [ or ] to select another device address to program
(0-3) or press the key to return to the Engineer menu.
Programming Readers for Entry Control or Access Control:
Assign Keypads/Readers
1. Press or to scroll to 'ASSIGN KEYPADS/READERS'.
Press .
2. Press [ or ] to select the address. Press .
3. 'Type' will be displayed. Press 1 to select the reader.Press

4. 'Reader is' will be displayed. Press 2 for 'Access Control' or
press 4 for 'Entry Control' Press .
5. 'Set Point Sets' will be displayed. Select the area(s). Press .
Set Point Unsets' will be displayed. Select the area(s). Press
. 'Set Point In' will be displayed. Select the area(s). Press
.
6. 'Lock Open Time' will be displayed. Enter the Lock Open Time
in seconds and press . (Max 255 seconds).
7. 'Door Open Time' will be displayed. Enter the Door Open Time
in seconds and press . (Max 255 seconds).
8. 'Access Control Description' will be displayed. Press .
9. 'Enter Name' will be displayed. Enter the name of the keypad
and press .
10. 'Enter Location' will be displayed. Enter the location of the
keypad and press .
11. Press [ or ] to select another device address to program
(0-3) or press the key to return to the Engineer menu.
Wireless Arming Station Options
Tag Read Enable: Enables the proximity tag reader on the wireless arming station.
Auto Wakeup: Forces the keypad to automatically wake up when an entry time is initiated.
Supervision: When switched to 'Yes' the control panel will supervise the signal of the wireless
arming station.
Back Light: Toggles the LCD backlight on or off.
Entry/Exit Sound: When enabled, the arming station will mimic the entry/exit tones of the
panel.
Set Point Sets: Enter the areas that the arming station is permitted to set.
Set Points Unsets: Enter the areas that the arming station is permitted to unset.
Set Point In: Enter the areas that the arming station is located in.
Set Point Description: Enter a name and location for the arming station.
Enforcer: Programming Manual
Page: 15
Type
Reader
Reader is
Set Point
Set Point Sets
Set Point
Description?
ASSIGN KEYPADS/
READERS?
Address
Type
Reader
Reader is
Entry Control
Set Point Sets
Lock Open Time
[005]
Door Open Time
[005]
[1]
[0]
[1]
[1]
[4]
