Work View Tabs - Intellian v100GX Installation And Operation Manual

Work View Tabs

Aptus provides seven Work View Tabs (Satellite View, Antenna Basic View,
®
Antenna Advanced View, Monitor View, Graph View, ACU System View, and An-
tenna UI View) to manage the Antenna and the Satellite configuration.
How to modify the settings on Work View;
1. Enter the Setup mode by clicking Setup icon.
2. Tick the checkbox next to the "Set" button to modify the settings.
3. Enter the desired value then press the Set button to save the settings.

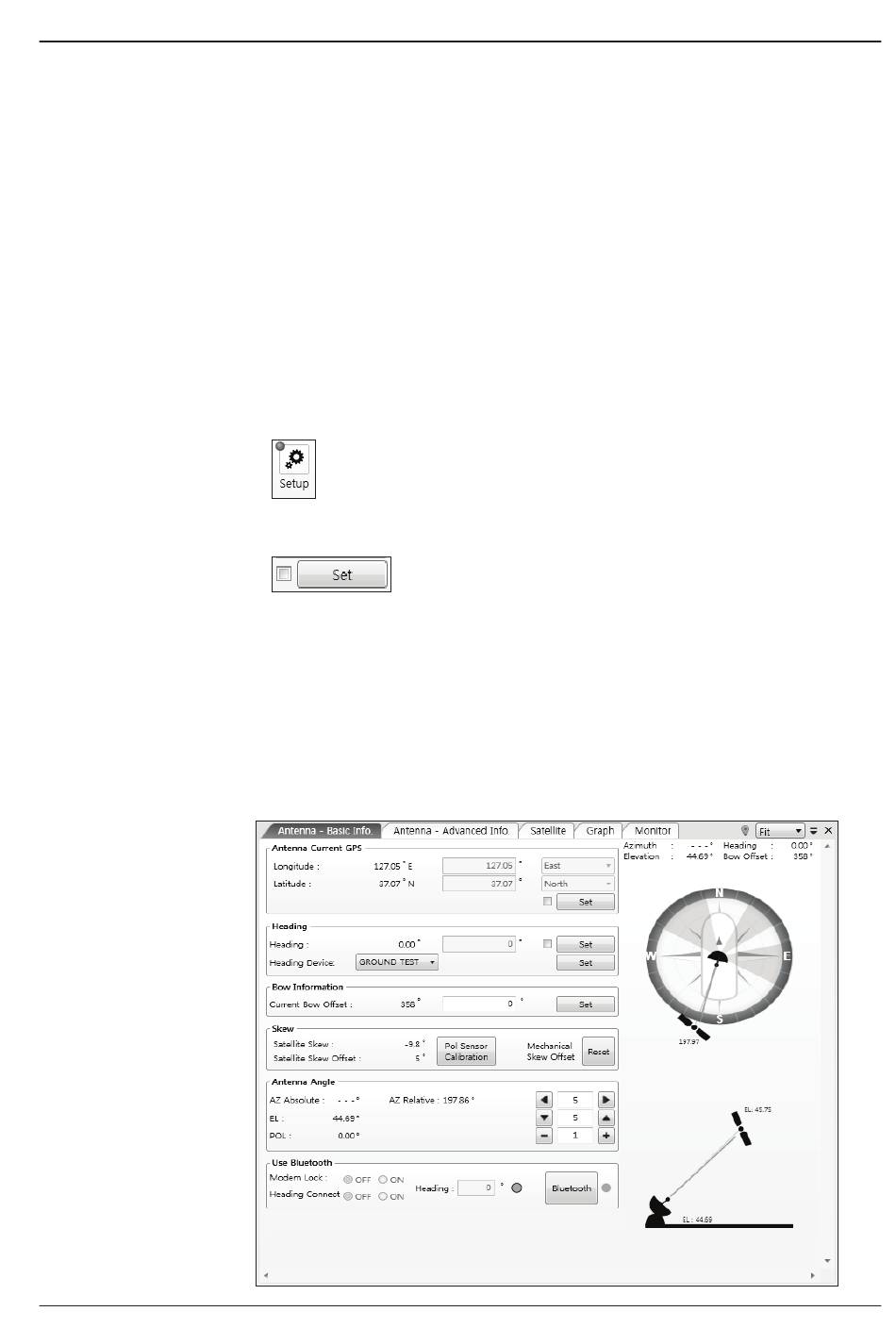

1. Antenna – Basic Info.
This view tab provides information on the Antenna's Current GPS location, Head-
ing Device, Bow Information, Skew Information, and the Antenna's Angle. This
view tab uses the Antenna's AZ and EL information as well as the Ship's Heading
information in order to provide a dynamic graphic user interface (UI).
