PC to ACU Communication Setup
You can establish data communication between a PC and the ACU using one
of the following methods.
TCP/IP Connection
Connection through Front Panel Management Port
This method is most recommended. Network is automatically configured by DHCP
without the need of additional PC IP configuration nor intervention to Modem to
ACU connection in use.

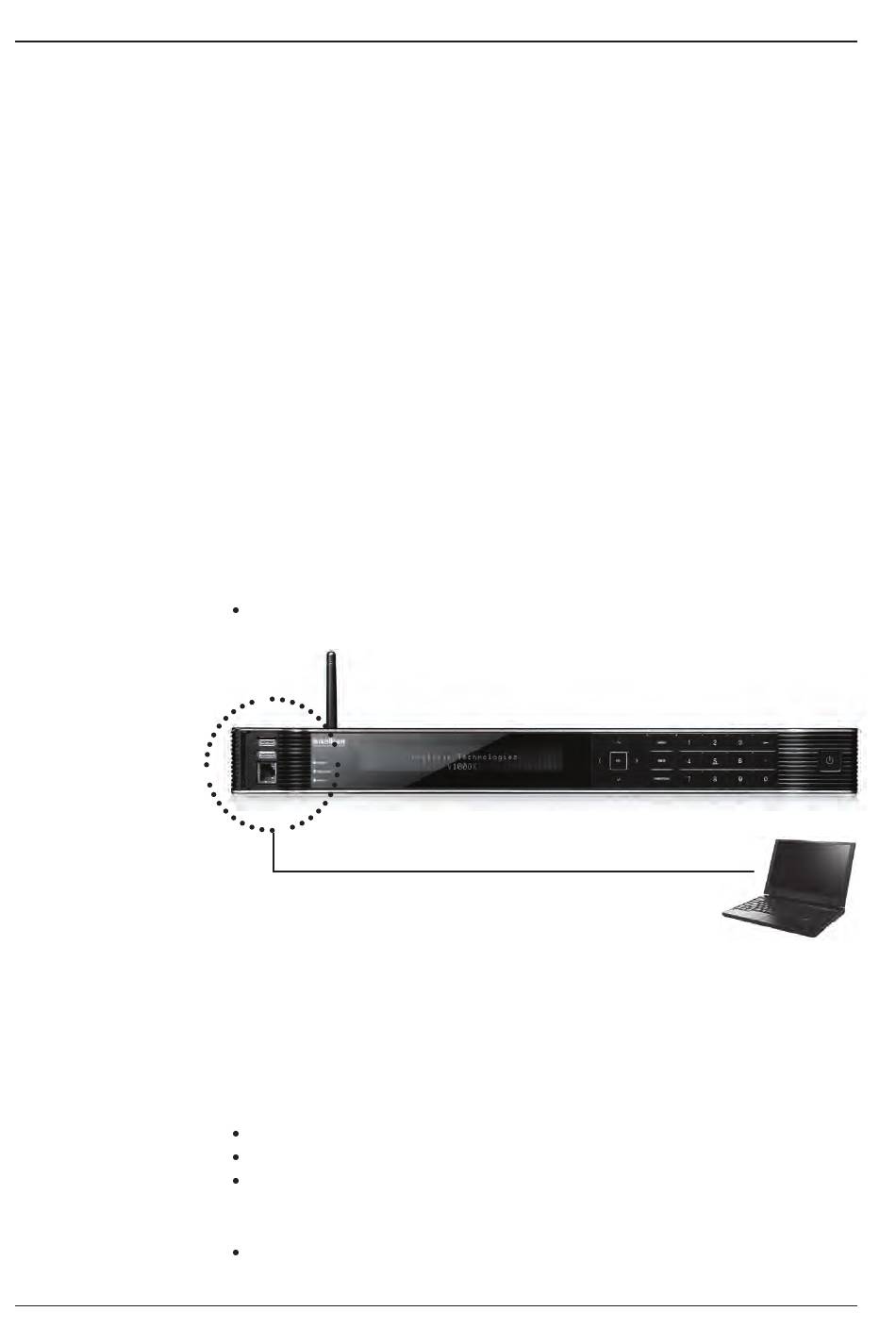

1. Connect an Ethernet cable from a PC Ethernet port to the Management port
on the front of the ACU.
2. Network connection is established.
3. Use the following IP address to access Intellian Aptus
(See also page 84 or 109 for details.)
192.168.2.1 (Default)
Connection through Rear Panel Ethernet Port
This method requires separate IP configuration on a PC.
1. Connect an Ethernet cable from a PC Ethernet port to an available LAN port
of a Switch/Hub.
2. Go to Control Panel > Network and Sharing Center > Change Adapter Settings
and right-click on the Local Area Connection then click Properties
3. Select TCP/IPv4, then click Properties.
4. Change the network settings on a PC;
Default IP: 192.168. 0.222 (Secondary: 10.10.1.2)
Subnet Mask: 255.255.255.0
Gateway: 192.168.0.223 (Secondary: 10.10.1.1)
5. Use the following IP address to access Intellian Aptus
(See also page 84 or 109 for details.)
Default: 192.168.0.223 (Secondary: 10.10.1.1)
or Web M&C page.
®
PC
or Web M&C page.
®
