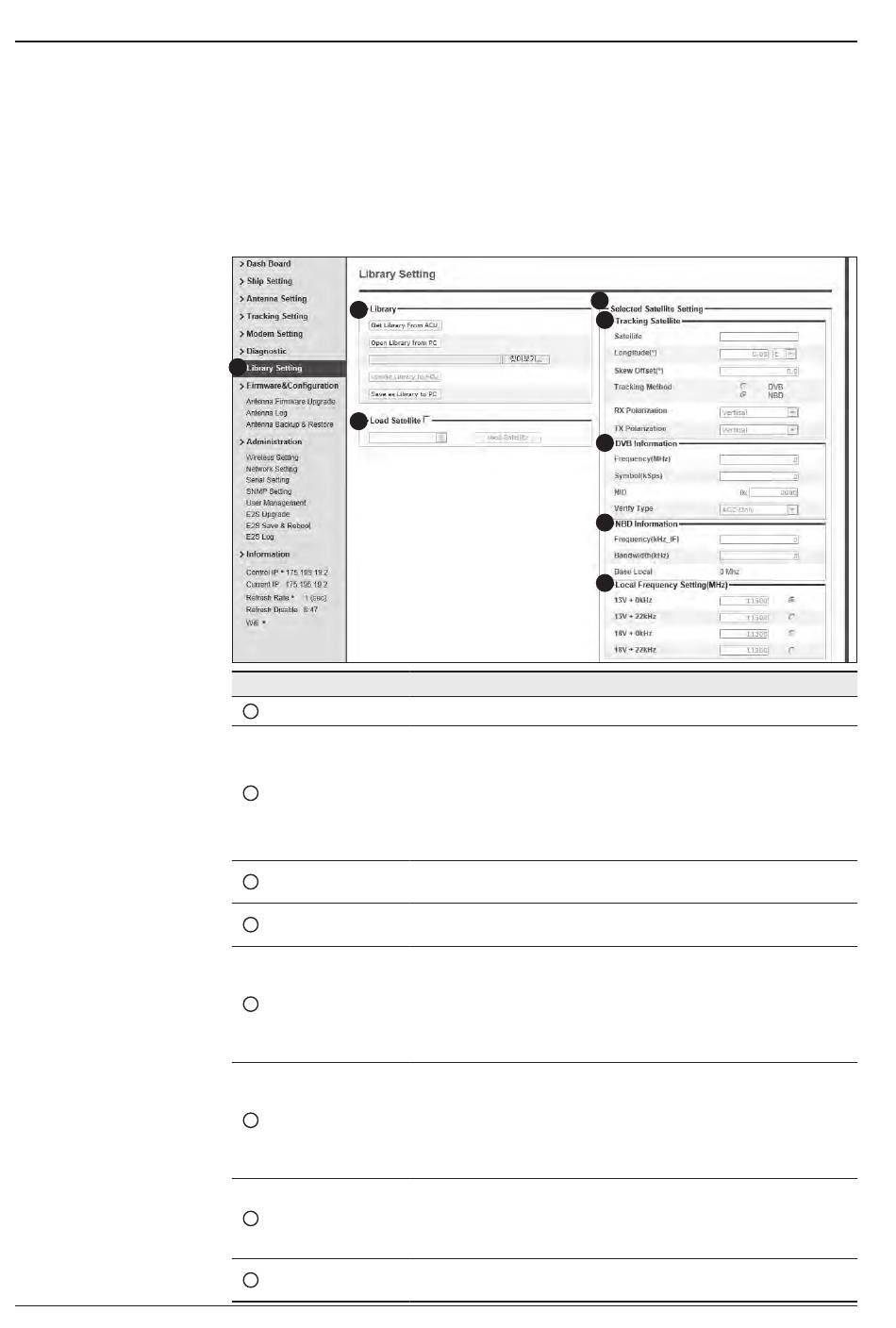

Library Setting
2
1
3
No. Item
Library Setting
1
Library
2
Load Satellite
3
Selected
4
Satellite Setting
Tracking
5
Satellite
DVB Information
6
NBD Information
7
Local Frequency
8
Setting (MHz)
Description
Display and set the satellite library information.
- Get Library from ACU: Obtain satellite information installed in the
ACU.
- Open Library from PC: open the satellite library file from the
supplied Intellian CD or from the external hard drive/PC.
(File format: *.ilf)
- Upload Library to ACU: upload the satellite library file to ACU.
- Save as Library to PC: save the current library setting to the PC.
Select the satellite that you wish to track and press Load Satellite
button to load the selected satellite.
Displays selected satellite information.
- Satellite: displays satellite name.
- Longitude: displays satellite orbit position.
- Skew offset: displays Skew offset.
- Tracking method: displays current tracking mode (DVB/NBD)
- RX polarization: displays current RX polarization.
- TX polarization: displays current TX polarization.
- Displays DVB tracking mode's tracking information.
- Frequency: displays tracking frequency.
- Symbol rate: displays symbol rate.
- NID: displays network ID.
- Verify type: displays verification type (AGC only, DVB lock, DVB
decode, DSS decode)
Displays NBD tracking mode's tracking information.
- Frequency: displays tracking frequency.
- Bandwidth: displays detection bandwidth.
Displays LNB local frequency (MHz) and voltage.
4
5
6
7
8
