Intellian v100GX Installation And Operation Manual page 119

WARNING:
Ensure to tick the checkbox before modifying the settings. Select 'Set
Modem Configuration' to confirm the modem settings configured.

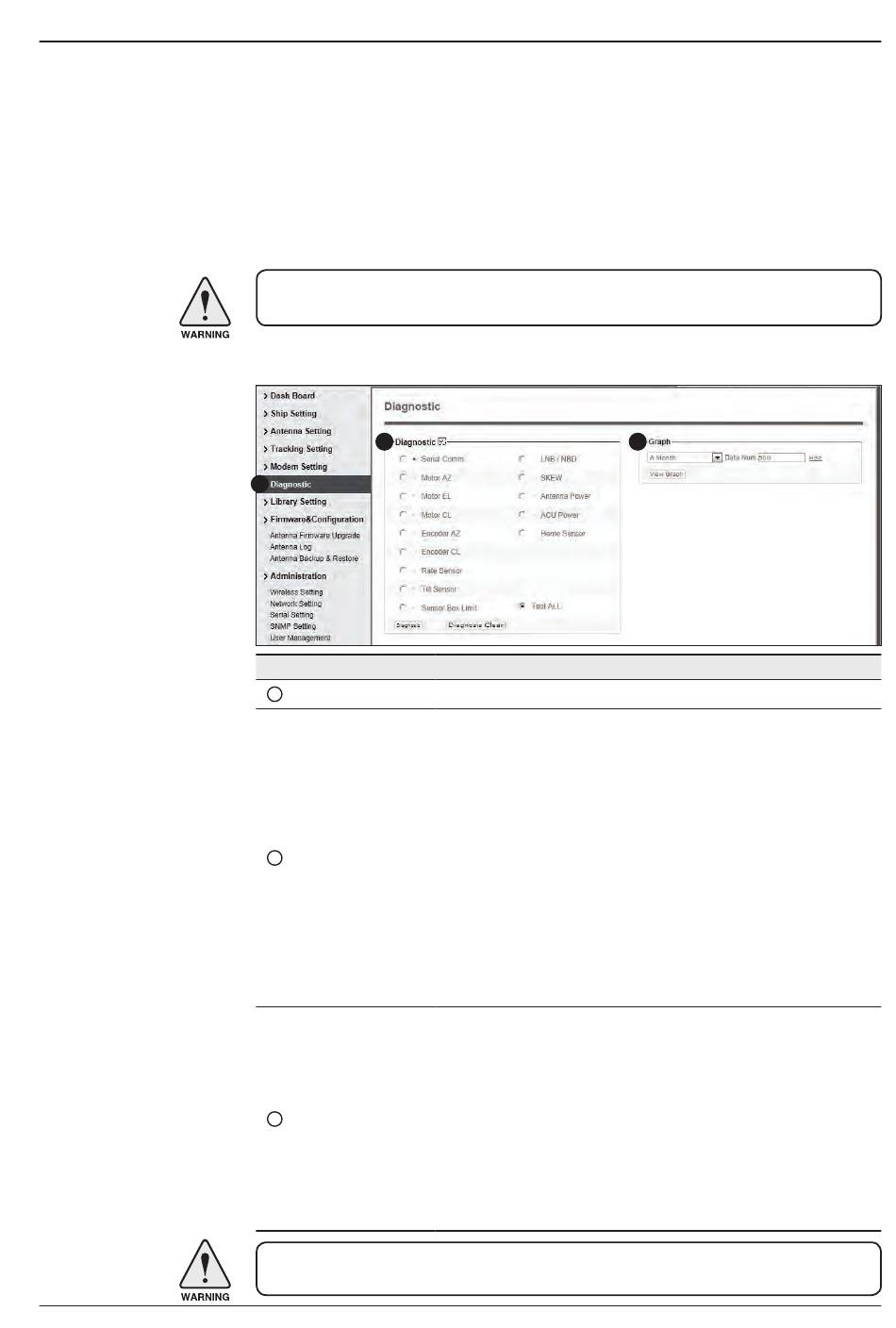

Diagnostic
2
1
No. Item
Diagnostic
1
Diagnostic
2
Graph
3
WARNING:
Tick the checkbox before modifying the settings. Click Diagnosis button to
execute diagnostic test. To clear previous diagnosis result, click Diagnosis Clear button.
Description
Execute antenna diagnostic test.
Select to run a full diagnostic test or single diagnostic test.
- Serial Comm.: test the data communication between the
antenna and the ACU.
- Motor AZ: test the azimuth motor.
- Motor EL: test the elevation motor.
- Motor CL: test the cross-level motor.
- Encoder AZ: test the azimuth encoder.
- Encoder CL: test the cross-level encoder.
- Rate Senor: test the gyro sensor.
- Tilt Sensor: test the tilt sensor.
- Sensor Box Limit: test the sensor box motor.
- LNB/NBD: test the LNB.
- SKEW: test the LNB pol motor.
- Antenna Power: test the antenna power.
- ACU Power: test the ACU power.
Select to view a graph of AZ Absolute, AZ Relative, EL and
Heading data of the antenna. The status of Graph Service Pack
(see E2S Upgrade on page 134) should be loaded to use this
menu.
- A Month: display all data within a month
- A Week: display all data within a week
- A Day: display all data in a day
- Real-time: display data in real time. Press F5 button to refresh.
- Data Num: set the maximum number of graph data set to be
displayed.
- View Graph: select to view the data graph.
REMOTE ACCESS (WEB M&C)
3
119
