Humminbird SOLIX Series Operation Manual page 42

Display Data Overlays
Digital readout data can be displayed as an overlay, and it can be displayed in the data bar. To turn on the data bar, see the next
section Display a Data Bar.

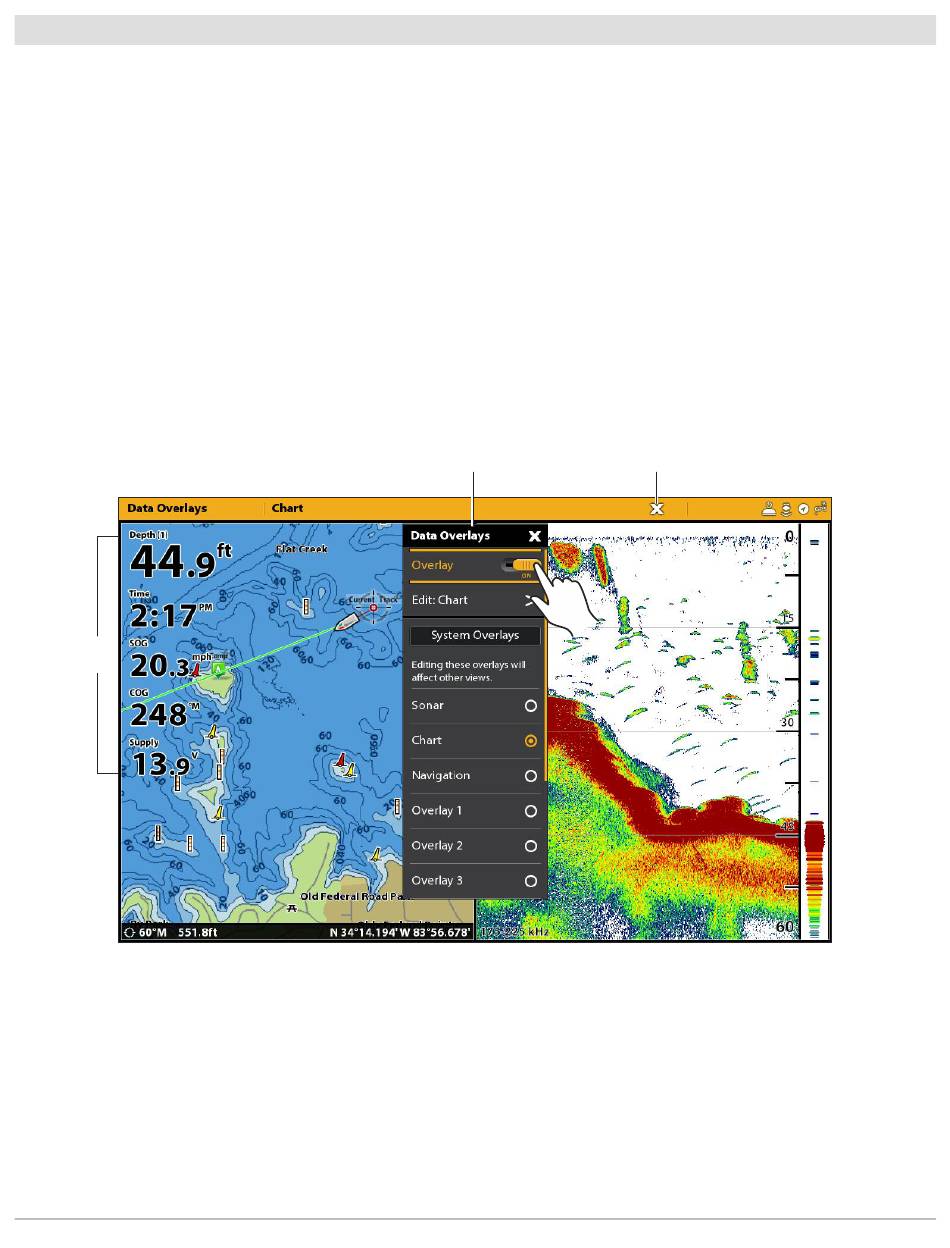

Display an Overlay on the View
1. With a View displayed on-screen, tap the view (or pane) name in the status bar, or press the MENU key once.
2. Select View Options.
3. Select Data Overlays.
4. Turn On Data Overlays: Select Overlay. Tap the on/off button, or press the ENTER key, to turn it on.
5a. Select by Data Type: Under System Overlays, select the type of data overlay (Sonar, Chart, Navigation, etc.).
For example, to display navigation data like Heading, Course Over Ground (COG), Speed, etc., select Navigation.
5b. Select by Overlay Position, Color, and Size: Under System Overlays, select from Overlay 1 through Overlay 5.
data
overlays
Views
Display Data Overlays
data overlays menu
42
