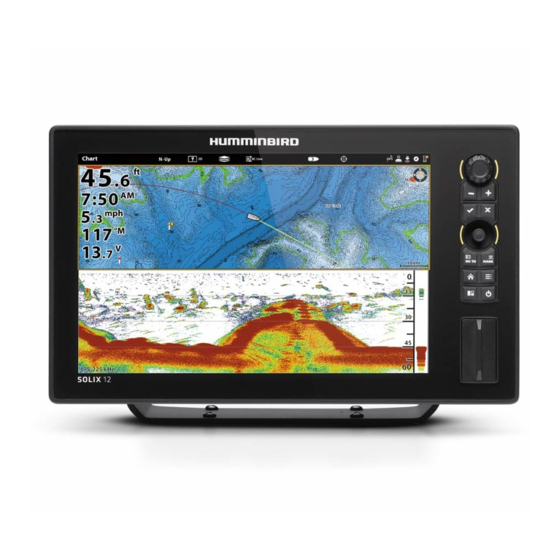

SOLIX® Series In-Dash Mounting Installation Guide

Installation Overview

Following are instructions for the in-dash mount installation of the SOLIX control head. We encourage you to
read this guide before starting the installation, so you may understand the installation requirements.
Customer Service: If you find that any items are missing from your installation kit, visit our Web site at
humminbird.com or call Humminbird® Customer Service at 1-800-633-1468.
Supplies: In addition to the hardware supplied with your accessory, you will need a drill and various drill
bits, a cutting tool for the dashboard material, various hand tools (including a 3/8" crescent wrench and
5/16" socket wrench or nut driver), safety glasses and dust mask, masking tape, and a towel or cloth.
WARNING! Do NOT use power tools to secure the hardware. We encourage you to read the installation instructions
so you may understand the installation requirements.
NOTE: Product supplies and features are subject to change without notice.
1. Plan the Mounting Location
Start by locating a suitable, flat area of the dashboard for mounting. Consider the following to find the best
mounting location:
• Interference: The mounting location must provide adequate distance from electric motors or any
equipment that may cause electronic interference.
• Stability: The mounting area should be protected from waves, shock, vibration, and water.
• Depth: The mounting area should have a depth of 4" (102 mm) to allow space for the control head and
cables.
• Ventilation: The area beneath the mounting surface should be well-ventilated.
• Accessibility: The location should be easily accessible for all cables to reach the ports on the back of the
control head.
• Multiple Control Heads: If you plan to install more than one control head side by side, leave a minimum
space of 1 7 / " (36.2 mm) between mounting holes. This will allow for 1/4" (7 mm) between control heads
6
with the covers installed and space for the bracket under the dashboard. Take your measurement from
the front, left or right side of the control head cut line. See the template for more information.
NOTE: If a cable is too short for your application, extension cables are available. For assistance, contact Humminbird
Customer Service.
2. Cut the In-Dash Mounting Hole
To in-dash mount the SOLIX control head, start by placing the components on the surfaces where you intend
to install them.
1. Review the instructions, measurements, and cutting options indicated on the In-dash Mounting Template.
2. Tape the template to the chosen in-dash mounting location.
3. Using the template, select the cutting method that is best for your boat:
• Drill one entry hole away from the main cut line that is large enough to insert the blade of your cutting
tool.
OR
