Side Imaging® Transducer
Thank You
Thank you for choosing Humminbird®, the #1 name in marine electronics. Humminbird has built its
reputation by designing and manufacturing top-quality, thoroughly reliable marine equipment. Genuine
Humminbird accessories offer the opportunity to upgrade and expand the capabilities of your Humminbird
product.
NOTE: Your transducer may not look exactly like the transducer shown in the illustrations, but it will mount in
exactly the same way.
Your Humminbird is designed for trouble-free use in even the harshest marine environment. In the unlikely
event that your Humminbird does require repairs, we offer an exclusive Service Policy. For complete details,
see the separate warranty card included with your unit.
Contact Humminbird Customer Service at humminbird.com or call 1-800-633-1468.
Installation Overview
Following are instructions for the installation of this accessory. Before you start the installation, we encourage
you to read these instructions carefully in order to get the full benefit from your Humminbird accessory.
Customer Service: If you find that any items are missing from your installation kit, visit our Web site at
humminbird.com or call Customer Service at 1-800-633-1468.
Supplies: In addition to the hardware supplied with your transducer, you will need a powered hand drill and
various drill bits, various hand tools, including a ruler or measuring tape, level, pen or pencil, safety glasses
and dust mask, and marine-grade silicone sealant.
NOTE: Due to the wide variety of hulls, only general instructions are presented in this installation guide. Each
boat hull represents a unique set of requirements that should be evaluated prior to installation. It is important to
read the instructions completely and understand the mounting guidelines before beginning installation.
Installation
There are a number of ways to install a transducer on your boat. The transom mount installation provides the
following:
• Least loss of signal since the transducer is mounted outside the boat hull.
• Allows adjustment of both running angle and depth after the transducer is mounted, which enables
you to tune the installation for best results.
• The mounting hardware is designed to pivot the transducer body out of the way should the boat strike
debris in the water, or when trailering.
1.
Test the Transducer Prior to Installation
Prior to installation, test the transducer to make sure that no damage occurred during shipping.
1. Connect the transducer cable connector to the control head or black box sonar (depending on your
system configuration).
NOTE: If using a black box sonar, confirm it is connected to the control head.
2. Power on the control head. Select a sonar view to display on-screen.
NOTE: See your control head operations manual for more information.
532118-1_B

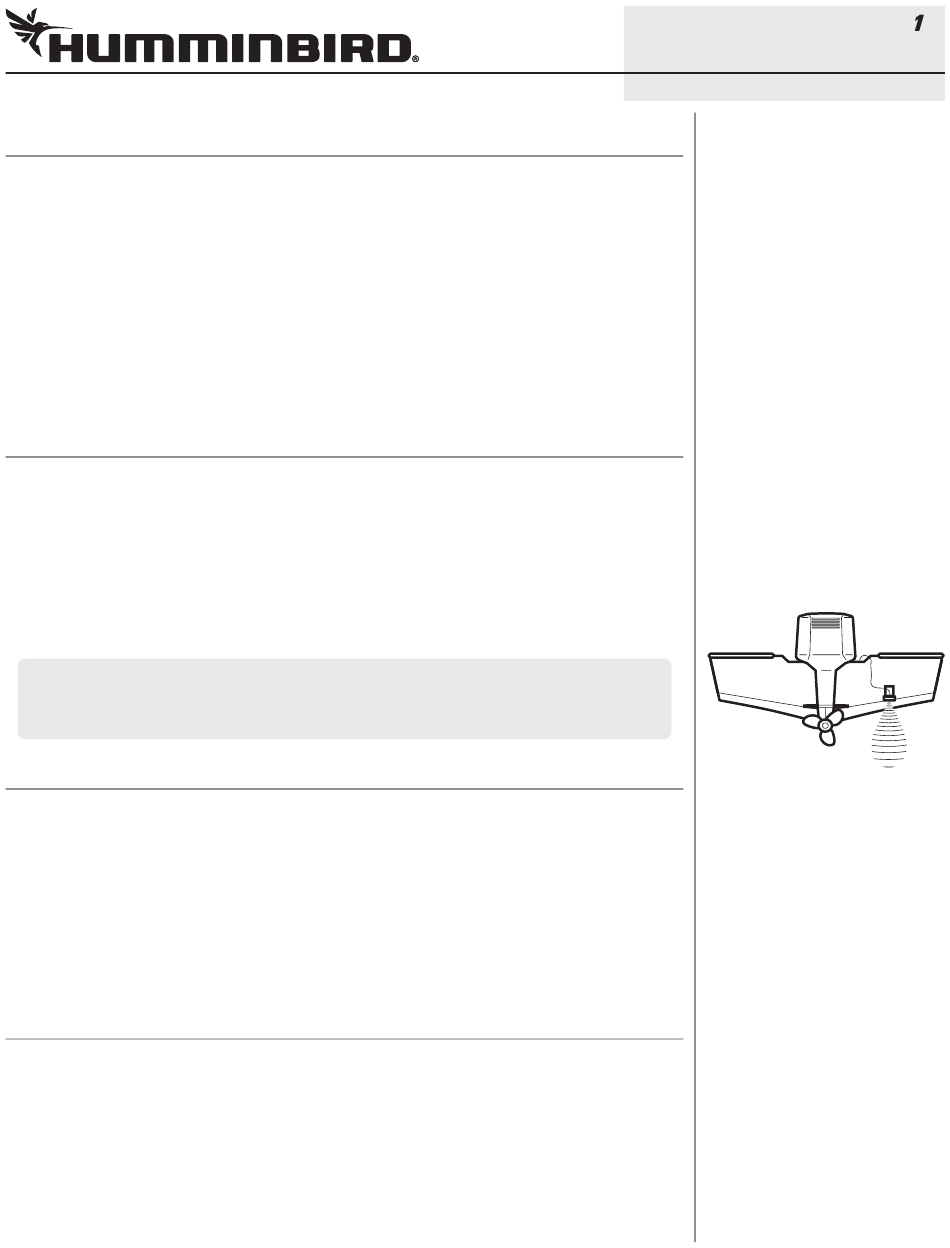

Transom Mounted Transducer
Advertisement
Table of Contents
Related Manuals for Humminbird Side Imaging Transducer
Summary of Contents for Humminbird Side Imaging Transducer
- Page 1 Following are instructions for the installation of this accessory. Before you start the installation, we encourage you to read these instructions carefully in order to get the full benefit from your Humminbird accessory. Customer Service: If you find that any items are missing from your installation kit, visit our Web site at humminbird.com or call Customer Service at 1-800-633-1468.
- Page 2 If you require a high-speed application (above 65 mph) and cannot find a transom mount location that will work for your boat hull, a different mounting technique or transducer type should be considered. See the FAQ (Frequently Asked Questions) section of our Web site at humminbird.com or call Customer Service at 1-800-633-1468.
-
Page 3: Mount The Bracket
Side Imaging® Transducer 532118-1_B If you have installed or are planning to install a second transducer in addition to this Side Imaging transducer, you must determine which transducer will be used as the primary source for traditional 2D sonar when operating the boat at high speeds (up to 65 mph). - Page 4 Side Imaging® Transducer 532118-1_B Attaching the Bracket 2. Hold the template on the transom of the boat in the location you have selected. Align the template vertically, matching the lower edge of the transom with the bottom corner of the template. NOTE: If your propeller moves clockwise as the boat moves forward (as you're facing the stern of the boat from behind), mount the transducer on the starboard side, and use the bottom left corner of the template.
- Page 5 1 1/8” hole cable is too short, extension cables are available to extend the transducer cable up to a total of 50'. For assistance, contact Customer Service at humminbird.com or call 1-800-633-1468 for more information. cable CAUTION! Do NOT mount the cables where the connectors could be submerged in water or flooded. If cables...
-
Page 6: Connect The Cable
1. Press POWER once to turn the control head on. If the unit does not power-up, make sure that the connector holder is fully seated in the receptacle and that power is available. 2. If all connections are correct and power is available, the Humminbird control head will start normal operation. -
Page 7: Contact Humminbird
Direct Shipping Humminbird water. Service Department 678 Humminbird Lane 7. Once you have reached a consistently good sonar signal at the Eufaula, AL 36027 USA desired speeds, fully tighten your assembly to lock it into place. WARNING! This device should not be used as a navigational aid to prevent Maintenance collision, grounding, boat damage, or personal injury. -
Page 8: Mounting Template
Side Imaging® Transducer 532118-1_B Mounting Template Remove and use for Transducer Installation Use 5/32” drill bit. Drill Drill Drill PLACE EITHER CORNER ON DEADRISE ANGLE © 2015 Johnson Outdoors Marine Electronics, Inc. All rights reserved.
