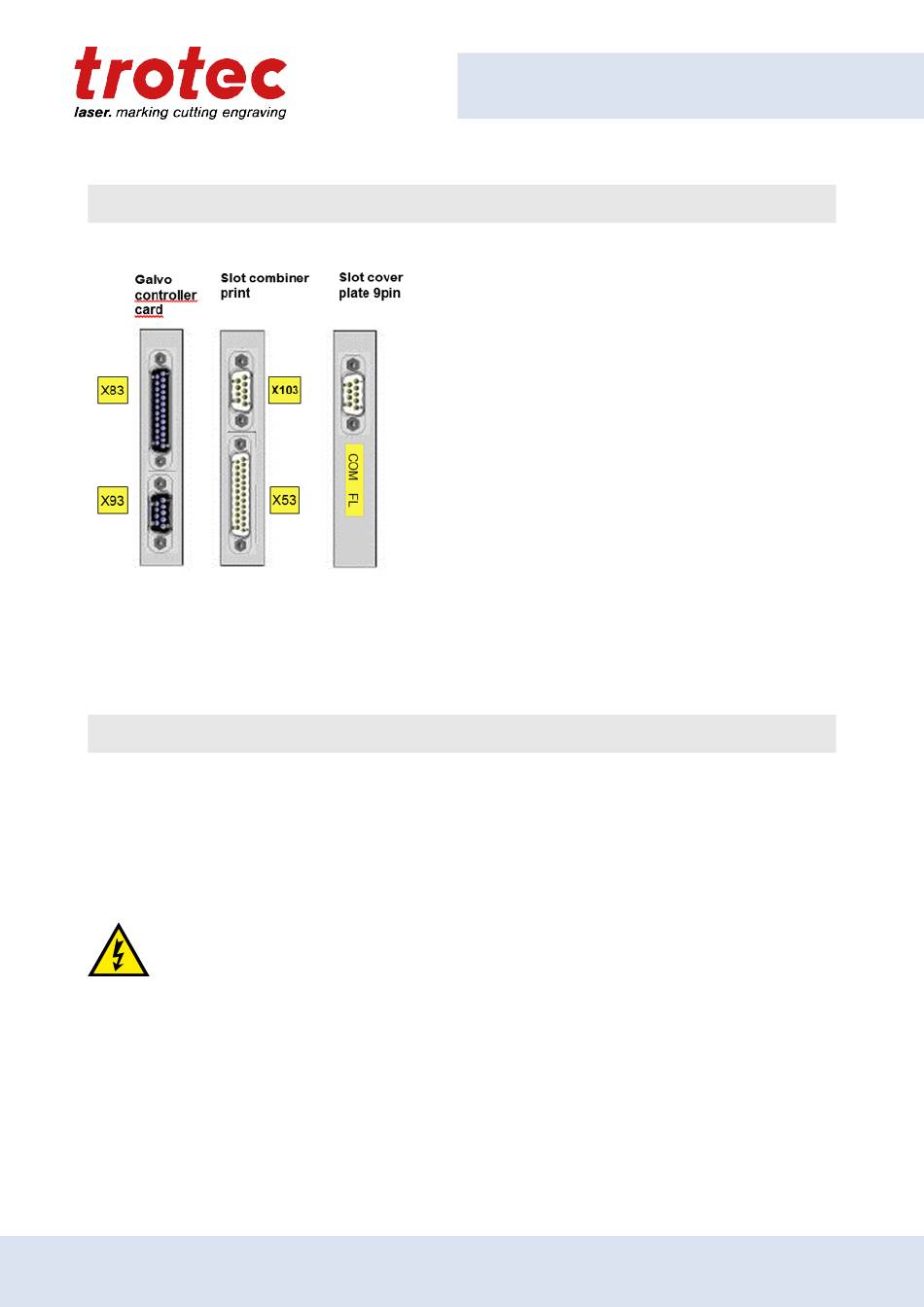

Overview PC interface (back side)

Connectors X93 and X103 are joined directly via a short cable.
Connector X53 is joined to X51 on the laser rack by using another cable.
Connector X83 is joined through the black tube to X82 on the marking head.
7.5.3

Mains connection

Laser rack and PC have a cold device socket on the rear for the cold device cables supplied.
Before commissioning, it is essential to check whether the laser rack is configured to the mains voltage and
frequency.
The configuration of the laser rack is given on the type plate or on the warning label above the IEC
connector.
Warning Current
The laser rack is fitted with different main fuses depending on the configured supply voltage:
The main fuses are located behind the cover, immediately adjacent to the IEC connector.
The same main fuse is used on the PC for all mains voltages.
ENGLISH (Translation)
115V AC
230V AC
Setup and installation
- 1 x 6.3 A "T" speed/time-delay
- 2 x 4 A "T" speed/time-delay
